18W VDE SS316L IP68 Inground Pool Led Lights AC100-240V FCC
AC100-240V High Voltage 18W IP68 SS316L Material Inground Pool Led Lights
Product details

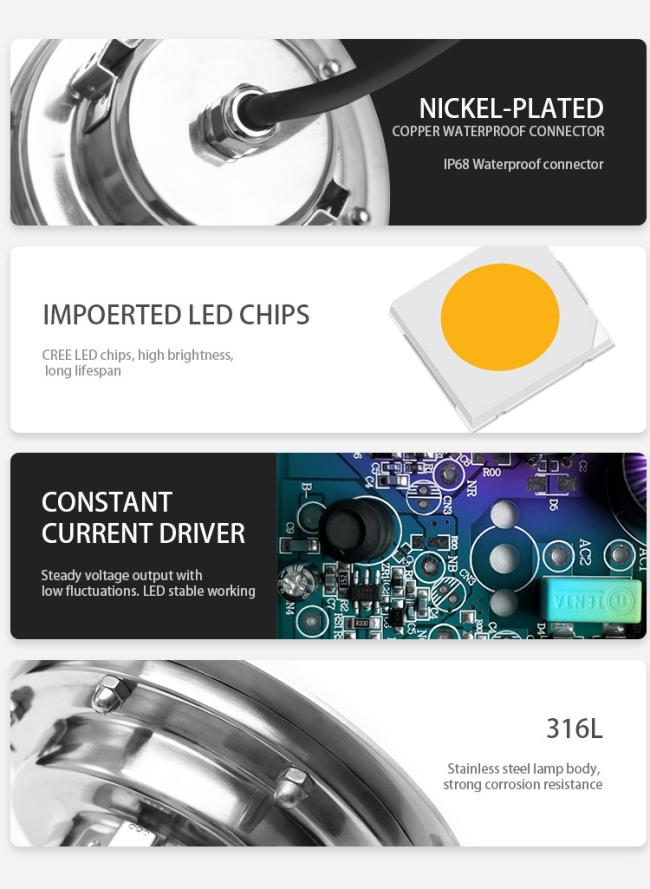

1. 316 screws are riveted on the surface cover, good looking and won't loosen.
2. Constant current driver, high efficiency>90%, assure the LED stable working without input fluctuation
3. LED under ground light, widely used for square, park.
4. High efficient structural heat dissipation, assure lamp stable working.
5. Inground led use CREE LED chip, CRI>80. Low light degradation and long lifespan.
Product Features
1. 2mm aluminum light board for excellent heat dissipation, 2.0W/(m.k) Thermal conductivity.
2. VDE standard rubber wire, connected with IP68 nickel-plated copper connector.
3. 8 hours aging testing, 30 steps quality inspections, assure the great quality products.
4. Lamp succeeded in the IES and Temperature rise test.
5. 8mm IK10 transparent tempered glass, has great Impact resistance, and high light transmittance > 90%.
Specification
| HG-UL-18W-SMD-G-H | ||||||
| Lamp paramater | Material | SS316L body+tempered glass cover+VDE rubber cable | ||||
| length | Φ220×93mm | |||||
| Input voltage | AC100-240V | |||||
| Constant Driver | yes | |||||
| Over-current Protection | yes | |||||
| Wattage | 18W±10% CREE | |||||
| Light lumen | 2000lm±10％ | |||||
| Beam angle | 15°/30°/45°/60° | |||||
| CCT |
Pure White: 6500±10% Warm White:3000K±10% costomized |
|||||
| Specifics | Operating Temperature (℃) | -20~40℃ | ||||
| IP Rating | IP68 | |||||
| Certificate | CE, RoHS,FCC,IP68,IK10 | |||||
| Life-span | 50,000 hours | |||||
| Warranty | 2Years | |||||
| Test position | LED Grond light (Min) | |||||
| Working temperature 28℃ | Working temperature 40℃ | |||||
| Land test(Min) | 480 | 480 | ||||
| LED edge temperature(℃) | 70 | 76 | ||||
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Led inground lights must be 8 hours aging test and provide 2 Years warranty.
3. Inground led light finished products all passed 30 steps quality inspection.
4. Good looking stamping SS316 rivet screws, more stable, never fall off.
5. Good looking with rivet screw and cover nut assembly, longer lifespan.
6. IP68 structure waterproof, can long time use underwater.
Application

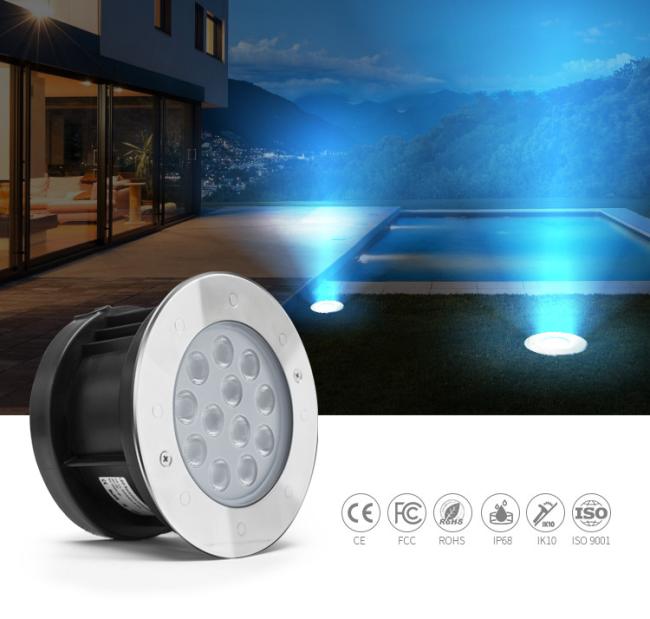

18w led inground light widely used as garden, community, lawn, park and other landscape lighting.
Packing List
| Item |
HG-UL-18W-SMD-G-H |
| Product weight | 500G/PCS |
| color box size | 625×380×325mm |
| Carton/pcs | 50pcs/Carton |
| Carton size | 610x410x410mm |
| Carton weight | 28KG/CTN |
Some tips for you
Q1:How to choose the right LED energy saving lamps?
Low watage with high Lumen. This will save more electricity bill.
Q2: What is the advantages of LED?
Environmental friendly, Energy saving and Long lifespan.
Q3: The key factor that influence LED lifespan.
Temperature: It requires that junction temperature of LED chip should be ≤120℃, so the center temperature
at the LED bottom of light board should be ≤ 80 ℃.
Q4: Why choose us?
1. Lower wattage with high Lumen and more energy-efficient.
2. All lamps are self-developed patent products.
3. IP68 structure waterproof without glue, and lamps disspate heat through structure.
4. According to the LED characteristic, the center temperature at the LED bottom of light board must be controlled strictly( ≤ 80 ℃).
5. High quality driver of lamps to ensure the long lifespan.
6. All products have passed CE, ROHS, FCC, IP68, and our Par56 pool light have got UL certification.
7. All products need to pass 30 steps QC inspection, the quality has the guarantee, and the faulty rate is less than three per thousand .
