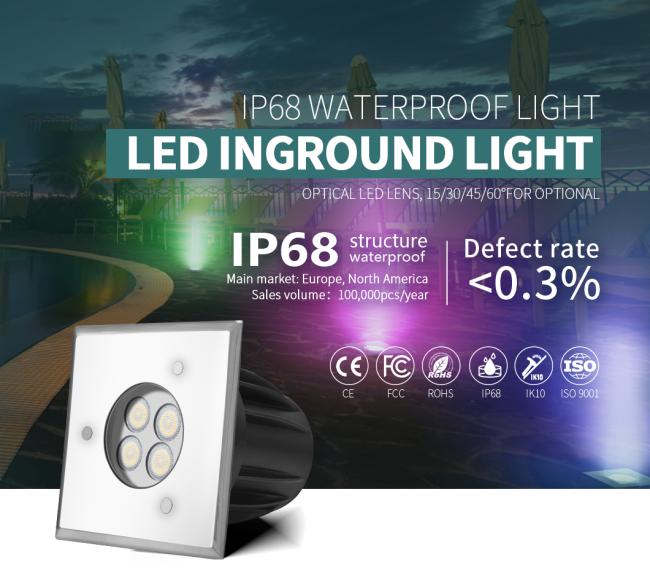

SS316L 170ma 3W Led Swimming Pool Lights SMD3030 Outdoor
3W led swimming pool lights inground led ground lights outdoor
Ground Lights Features:
● SS316L material,lamp body thickness:0.8mm,surface ring thickness:2.5 mm；
● Transparent tempered glass,thickness :8.0mm；
● VDE rubber cable ,cable length :1M;
● IP68 structure waterproof;
● Constant current driver circuit design,DC24V input power supply
● 2 years warranty
● 8 hours aging testing, 30 steps quality inspections, assure the great quality products.
● Lamp succeeded in the IES and Temperature rise test.
● LED underground light, widely used for square, park.
| Model |
HG-UL-3W-SMD-G2 |
|
| Electrical | Voltage | DC24V |
| Current | 170ma | |
| Wattage | 3W±10% | |
| LED | LED chip |
SMD3030LED(CREE) |
| LED QTY | 4PCS | |
| CCT |
6500K±10％/4300K±10％/3000K±10％ |
|
| Lumen | 300LM±10％ | |
| Beam angle |
15°/ 30°/45°/60° |
|
|
Light dimension |
100×100×88mm |
|
Heguang certification:
ISO9001,TUV,CE,ROHS,FCC,IP68,IK10,UL,we are the only one UL
certificated pool light supplier in China.
History :
ESTABLISHED IN 2006,BAO’AN,SHENZHEN
2006:
Established in Shenzhen ,near to Shenzhen Airport and HongKong
2009-2011:
-Glass PAR56 pool lights
-aluminum PAR56 pool lights
-wall mounted swimming pool lights
GLUE FILLED WATERPROOF
2012-2014:
-RGB 100% SYNCHRONOUS CONTROLLER
-ABS material PAR56
-Stainless steel PAR56
-Die casting aluminum PAR56
-Surface mounted led pool lights
STRUCTURE WATERPROOF TECHNOLOTY
2015-2017:
-Flat ABS PAR56 pool lights
-LED fountain lights
-LED underwater lights
-Wall mounted lights for concrete pool
-Wall mounted lights for vinyl pool
-Wall mounted lights for fiberglass pool
-2 wires DMX control system
2018-2021:
-PAR56 niches/housing
-New underwater lights
-New Fountain Lights
-LED underground lights
-UL LISTED (US and CANADA)
LED Ground Lights All passed 30 steps quality control , 100% waterproof at 10m depth, 8 hours LED
agening test,100% inspection before deliver.
FAQ
Why choose us?
1. Strict quality control : 30 Steps inspection before shipment,reject ratio ≤0.3%
2. 100% original design for private mode with patents
3. IP68 structure waterproof without glue, and lamps disspate heat through structure.
4. Distributorship are offered for your unique design and some our current models
5. Professional certification :UL, CE,ROHS,FCC,IP68,IK10,high-tech enterprise,SGS verified enterprise.
