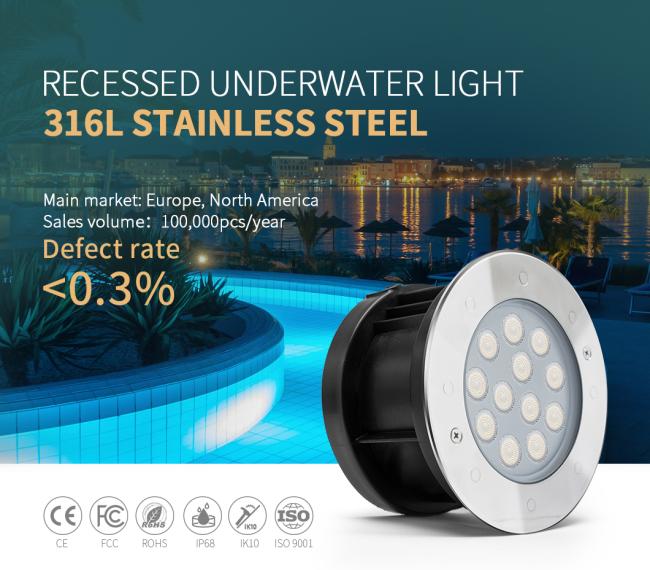

DC24V SS316L Recessed Led Underwater Lamp 1100LM Outdoor
DC24V 316L Recessed underwater lamp led Underwater light
LED Underwater Light Features:
● SS316L material,lamp body thickness:0.8mm,surface ring thickness:2.5 mm；
● Transparent tempered glass,thickness :8.0mm；
● VDE rubber cable ,cable length :1M
● IP68 structure waterproof
● Recessed installation;
● Constant current driver circuit design,DC24V input power supply
● SMD3030 CREE LED,white/warm white/red/blue/red etc.
● Beam angle:15°/30°/45°/60°；
● 2 years warranty
| Model |
HG-UL-12W-SMD-R |
|
| Electrical | Voltage | DC24V |
| Current | 550ma | |
| Wattage | 12W±10% | |
| LED | LED chip |
SMD3030LED(CREE) |
| LED QTY | 12PCS | |
| CCT |
6500K±10％/4300K±10％/3000K±10％ |
|
| Lumen | 1100LM±10％ | |
|
Certification |
FCC,CE, RoHS,IP68,IK10 |
|
Recessed underwater lamp All passed 30 steps quality control , 100% waterproof at 10m depth,
8 hours LED agening test,100% inspection before deliver.
1.OEM/ODM acceptable
2. Waterproof wire design ,prevent the water into the wire
3.Thickened aluminum board :2-3mm,super good heat dissipation,heat conductivity :2.0W/(m.k)
4. Integrated bead lens,uniform lighting without dazzling
5.Over temperature protection function
heguang History :
2006:
Established in Shenzhen ,near to Shenzhen Airport and HongKong
2009-2011:
-Glass PAR56 pool lights
-aluminum PAR56 pool lights
-wall mounted swimming pool lights
GLUE FILLED WATERPROOF
2012-2014:
-RGB 100% SYNCHRONOUS CONTROLLER
-ABS material PAR56
-Stainless steel PAR56
-Die casting aluminum PAR56
-Surface mounted led pool lights
STRUCTURE WATERPROOF TECHNOLOTY
2015-2017:
-Flat ABS PAR56 pool lights
-LED fountain lights
-LED underwater lights
-Wall mounted lights for concrete pool
-Wall mounted lights for vinyl pool
-Wall mounted lights for fiberglass pool
-2 wires DMX control system
2018-2021:
-PAR56 niches/housing
-New underwater lights
-New Fountain Lights
-LED underground lights
-UL LISTED (US and CANADA)
FAQ
Are LED pool lights worth it?
LED pool lights cost more than halogen or incandescent lights. However, most LED bulbs have
an expected lifespan of 30,000 hours, making them a worthwhile investment, especially when
you consider that incandescent lights usually last only 5,000 hours. Best of all, LED lights use
a fraction of the energy compared to incandescent lights, so they’ll save you money in the long term.
How many pieces of lamp can connect with one RGB synchronous controller?
It doesn’t depend on the power. It depend on quantity, maximum is 20pcs. If it plus the amplifier,
it can plus 8pcs amplifier. Totally the quantity of led par56 lamp is 100pcs. And RGB Synchronous
controller is 1 pcs, amplifier is 8pcs.
Why choose your factory?
We in led pool lighting over 10 years, iWe have own professional R&D and production and sales
team.we are the only one China supplier who is listed in UL certificate in Led Swimming pool light industry.
