12V 1300ma 1100LM Waterproof Led Pool Light 12W IP68 SMD5730

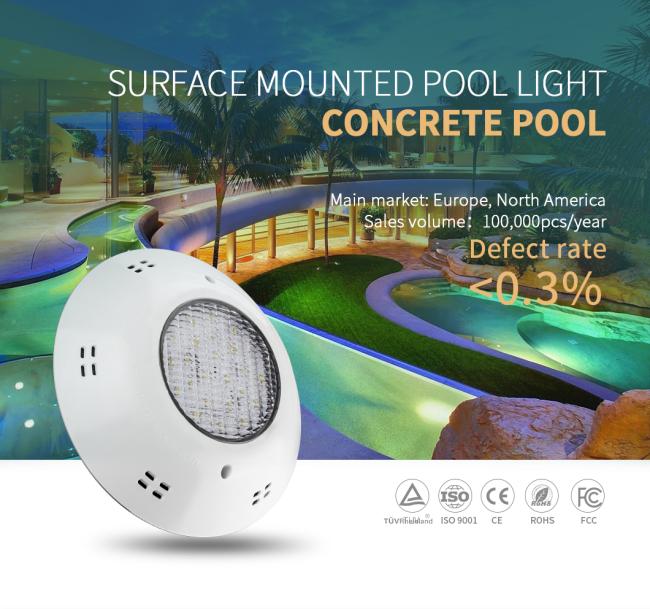

12W SMD5730 12V 1100LM IP68 Structure waterproof Led Concrete Pool Light
● Use for concrete pool.
● Material: Engineering ABS shell + Anti-UV PC cover
● VDE standard rubber thread, length: 2 meters
● IP68 structure waterproof
● Constant driver to make sure LED light working stably, and with open & short circuit protection
● SMD5730 Highlight LED chips
● Lighting angle: 120°
● 2 Years warranty
| HG-PL-12W-C | ||||||||
| Lamp paramater | Material |
Engineering ABS shell + Anti-UV PC cover |
||||||
| Light dimension | Φ250×47mm | |||||||
| Input voltage | AC/DC12V | |||||||
| Wattage | 13W±10％ | |||||||
| Light lumen | 1100LM±10％ | |||||||
| Beam angle | 120° | |||||||
| BASE | Wire out | |||||||
| Specifics | Operating Temperature (℃) | -20~40℃ | ||||||
| IP Rating | IP68 | |||||||
| Certificate |
FCC,CE, RoHS,IP68 |
|||||||
| Life-span | 50,000 hours | |||||||
| Warranty | 2 Years | |||||||
| !!! Remarks | Connect coil transformer | must be coil transformer | ||||||
| Waterproof ring of housing | must do right to get IP68 | |||||||
| Test position | LED Surface Mounted Swimming Pool Light(Min) | |||||||
| Working temperature 28℃ | Working temperature 40℃ | |||||||
| Underwater test time(Min) | 480 | 480 | ||||||
| LED edge temperature(℃) | 70 | 73 | ||||||
Advantage
1. Reliable quality with 100% 10m depth waterproof test.
2. Color logic pool light Must be 8 hours aging test.
3. Finished products all passed 30 steps quality inspection.
4. IP68 structure waterproof, can long time use underwater.
5. Constant current driver, comply with CE & EMC standard.
Application
Led lighting for the pool application: Concrete pool, Vinyl pool, Outdoor Swimming
Pool ,family pool,hotel pool ,underwater etc.
FAQ
1. Q: When can I get the price?
A: We usually quote within 24 hours after got your inquiry. If you are urgent to get the prices,
please call us directly or leave us the messge ,we will give priority to your inquiry.
2. Q: May I get samples to test quality and how long can I get them?
A: Yes, samples can be ready in 3-5 days.
3. Q: What is the MOQ?
A: NO MOQ,the more you order ,the cheaper price you will get .
4. Q: Can you accept small trial order?
A: Yes
5. Q: Do you accept the OEM&ODM?
A: Yes, OEM/ODM acceptable
6.Q:what's the RGB control you have?
A: Patent design RGB 100% synchronous control ,switch control ,external control ,wifi control ,
DMX512 control,etc.
