VDE Cable External control LED Ground Lights SS316L Waterproof Inground Light
Product details
1. IP68 Structure waterproof.
2. Ground light spot finished products all passed 30 steps quality inspection
3. Ground spot light are 316L Stainless steel material, super good anti-corrosion
4. RGB external control and DMX512 control are the best selling control in Heguang.
Specification
| HG-UL-9W-SMD-G2-RGB-X | ||||||||
| Lamp parameter | Material | SS316L body+tempered glass cover+VDE rubber cable | ||||||
| length | 150×150×87.5mm | |||||||
| Input voltage | DC24V | |||||||
| Constant Driver | yes | |||||||
| Over-current Protection | yes | |||||||
| Wattage | 9±1W Epistar | |||||||
| Light lumen | 380LM±10％ | |||||||
| Beam angle | 15°/30°/45°/60° | |||||||
| CCT: | RGB(DMX512/External /Wifi control | |||||||
| Specifics | Operating Temperature (℃) | -20~40℃ | ||||||
| IP Rating | IP68 | |||||||
| Certificate | CE, RoHS,FCC,IP68,IK10 | |||||||
| Life-span | 50,000 hours | |||||||
| Warranty | 2Years | |||||||
| RGB Controller | LED Ground lights | 1.DMX512 (can get the RGB color changing synchronous) 5 wires | ||||||
| 2, external controller (can get the RGB color changing synchronous) 4 wires | ||||||||
| Test position | LED Grond light (Min) | |||||||
| Working temperature 28℃ | Working temperature 40℃ | |||||||
| Land test (Min) | 480 | 480 | ||||||
| LED edge temperature(℃) | 68 | 75 | ||||||

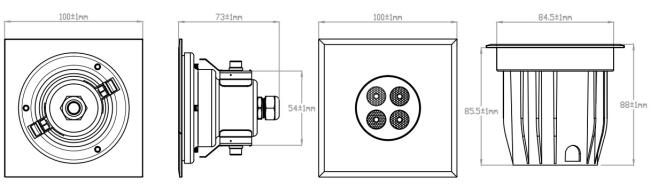

Product Size
Application

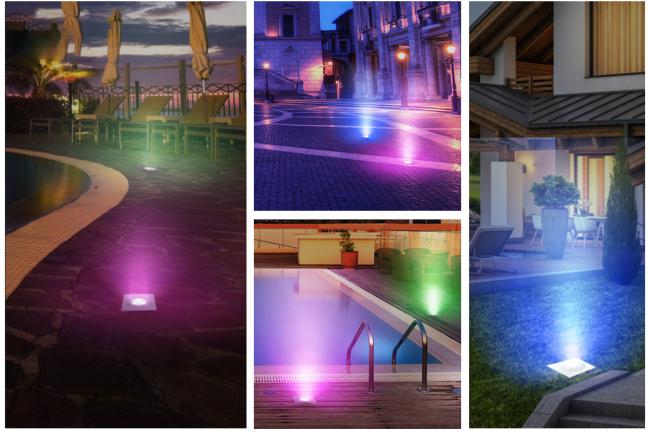

Ground light outdoor led Widely used as garden, community, lawn, park and other landscape lighting
