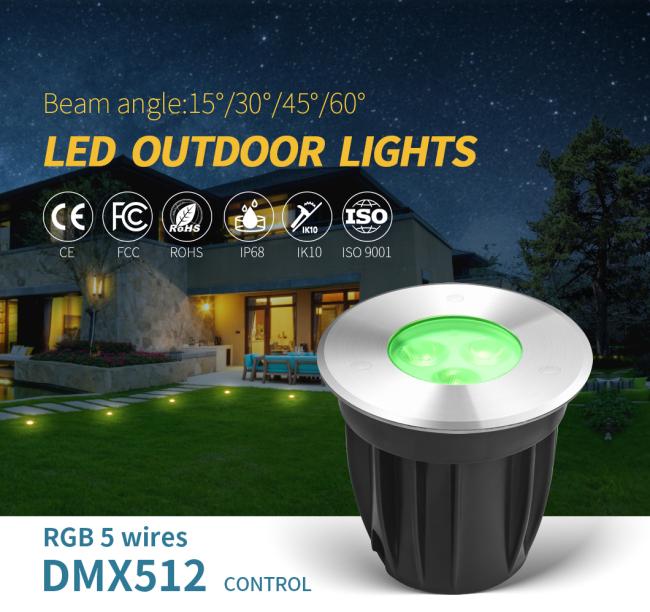

IP68 90LM Outdoor Ground LED Light IK10 3W DC24V
Product details
1. Customized IP68 waterproof nickel plated brass design, good anti-corrosion.
2. Ground led light is IP68 structure waterproof, can long time use under water.
3. IK10 8mm transparent tempered glass, light transmittance ＞90%, no effect with the LED color temperature
4. Constant current power driver, EMC anti-interference circuit. efficiency ＞90%, make sure the LED is constant current working, the input voltage change no effect with the LED lifespan.

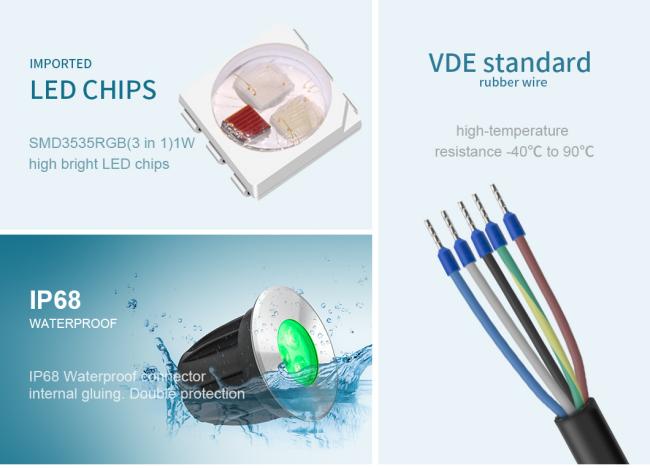

5. CREE LED chips, RA ≥80, gold wire welding, EMC and ceramic make the heat dissipation faster,assure the longer lifespan of LED.
Specification
| HG-UL-3W-SMD-G-RGB-D | |||||
| Lamp parameter | Material | SS316L body+tempered glass cover+VDE rubber cable | |||
| length | Φ98×88mm | ||||
| Input voltage | DC24V | ||||
| Constant Driver | yes | ||||
| Over-current Protection | yes | ||||
| Wattage | 3W±1W Epistar | ||||
| Light lumen | 90LM±10％ | ||||
| Beam angle | 15°/30°/45°/60° | ||||
| Color: | RGB(DMX512/External /Wifi control) | ||||
| Specifics | Operating Temperature (℃) | -20~40℃ | |||
| IP Rating | IP68 | ||||
| Certificate | CE, RoHS,FCC,IP68,IK10 | ||||
| Life-span | 50,000 hours | ||||
| Warranty | 2Years | ||||
| RGB Controller | LED Ground lights | 1.DMX512 (can get the RGB color changing synchronous) 5 wires | |||
| 2, external controller (can get the RGB color changing synchronous) 4 wires | |||||
| 3.RGB synchronous control design,2 wires connection 4, automatic changing 2 wires | |||||
| Test position | LED Grond light (Min) | ||||
| Working temperature 28℃ | Working temperature 40℃ | ||||
| land test(Min) | 480 | 480 | |||
| LED edge temperature(℃) | 60 | 72 | |||
In 2006, we began working on LED Underwater product development and production. factoryarea of 2,000 square meters, we are a high-tech enterprise also the only one China supplier who is listed in the UL certificate in Led Swimming pool light industry.
LED Ground light all passed 30 steps quality control, 100% waterproof at 10m depth,8 hours LED aging test,100% inspection before deliver.
