Nickel Plated Fire Rated Cable Glands BW Type For Explosion Proof ROHS / ISO
Nickel Plated Fire Rated Cable Glands BW Type For Explosion Proof ROHS / ISO
RANGE OF TEMPERATURE
- Static state -40 ℃ to 100 ℃
- Dynamic state - 20 ℃ to 80 ℃
PROTECTION DEGREE
- IP68-10 bar
PRODUCT MATERIAL
- The shell is made of brass chrome plating,gasket steel nickel plating,clamping parts and waterproof sealing rings are all made of nitrile rubber ( NBR )
PROTECTION LEVEL
- Use rubber gasket to tighten the tightening head to IP68 within the specified fastening range
THREAD LENGTH
- Short thread is suitable for the opening of thin machine plate or equipment with internal thread
- long thread is suitable for joining thick machine plate
- The thread extension type can be customized
SCOPE OF APPLICATION
- Instrument, ship, machinery, electrical, transportation, medicine, oil field and other cable fixing
REMARK
- It can be specially customized according to the actual needs of customers.

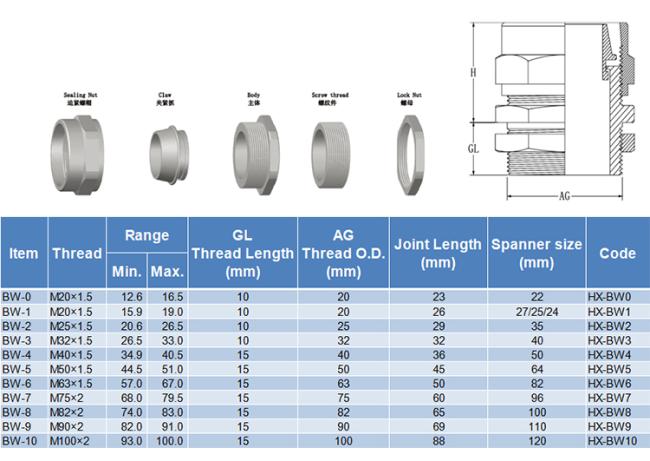

SPECIFICATION PARAMETER
| Item | Thread | Range | GL Thread Length (mm) |
AG Thread O.D. (mm) |
Joint Length (mm) |
Spanner size (mm) |
Code | |
| Min. | Max. | |||||||
| BW-0 | M20×1.5 | 12.6 | 16.5 | 10 | 20 | 23 | 22 | HX-BW0 |
| BW-1 | M20×1.5 | 15.9 | 19.0 | 10 | 20 | 26 | 27/25/24 | HX-BW1 |
| BW-2 | M25×1.5 | 20.6 | 26.5 | 10 | 25 | 29 | 35 | HX-BW2 |
| BW-3 | M32×1.5 | 26.5 | 33.0 | 10 | 32 | 32 | 40 | HX-BW3 |
| BW-4 | M40×1.5 | 34.9 | 40.5 | 15 | 40 | 36 | 50 | HX-BW4 |
| BW-5 | M50×1.5 | 44.5 | 51.0 | 15 | 50 | 45 | 64 | HX-BW5 |
| BW-6 | M63×1.5 | 57.0 | 67.0 | 15 | 63 | 50 | 82 | HX-BW6 |
| BW-7 | M75×2 | 68.0 | 79.5 | 15 | 75 | 60 | 96 | HX-BW7 |
| BW-8 | M82×2 | 74.0 | 83.0 | 15 | 82 | 65 | 100 | HX-BW8 |
| BW-9 | M90×2 | 82.0 | 91.0 | 15 | 90 | 69 | 110 | HX-BW9 |
| BW-10 | M100×2 | 93.0 | 100.0 | 15 | 100 | 88 | 120 | HX-BW10 |
PRODUCT CHARACTERISTICS
- The special design of the clamping ring and the sealing element makes the assembly time-saving and convenient by matching the clamping head
- The clamping hose has a large range and is extremely strong in tensile force
- Can be waterproof, dustproof, salt - proof, acid and alkali resistant, alcohol, oil, grease and common solvents
OUR SERVICE
- We welcome customers to provide us with suggestions related to products
- Any question can be told to us by email or telephone, and we will handle it for you in a timely manner
- Quick and accurate delivery
- We ensure the quality of our products is excellent
- Products can be customized according to specific requirements
Company profile
Yueqing hongxiang connector manufacturing co., ltd. is a professional manufacturer of various specifications of wire and cable connectors. The main product is a metal cable waterproof connector with a protection grade of ip68. it has the characteristics of large clamping cable range,strong tensile force, waterproof, dustproof, salt resistance, acid and alkali resistance,alcohol resistance, grease and common solvents, etc. Other products include anti-electromagnetic cable connector, porous cable waterproof connector, marine stuffing box, reducer head, brass plug cap, etc.
