FBE Coated Ductile Iron Flanged Gate Valve Handwheel Operated Available
DN50-DN600 Ductile Iron Soft Seated Gate Valve, Non Rising Stem, BS5163, FBE Coated
Description:
AFC's gate valve is a resilient NRS gate valve, DI body and bonnet, EPDM rubber wedge,bronze nut, SS420 stem, cap or hand wheel opeerated,PN10/16.
Production Process:
1. Sandblasitng - To clean to castign to have a better adhesion while coating
2. Coating - By electrical spray gun or fluidize bed - WRAS, NSF approved
3. Assembling - By qualified workers
4. Testing - 100% tested with sell and seat test
5. Packing - Plywood crates.
Features:
1. Fully complied with BS5163, EN1074-1 and EN1074-2.
2. No deformation when 5 times of over torque operation.
3. Overcome vaccum when water stops. No sucking dirt or sand from outside of the valve.
4. Low Torque with advanced design.
5. Online repair by 5 pcs of o-rings for stem seal.
6. AWWA flange is avaliable.

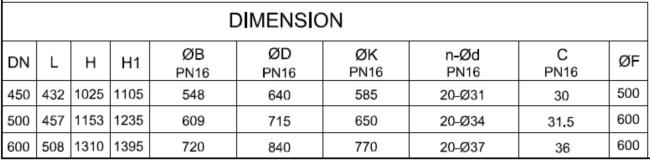

Valve Sizes:
Material :
| Valve Body | DI GJS500-7 |
| Valve Bonnet | DI GJS500-7 |
| Valve Gland | DI GJS500-7 |
| Wedge | DI GJS500-7 with fully vulcanized EPDM |
| Stem | SS420/SS431 |
| Stem nut | Brass/Bronze |
| O-ring | NBR |
