16KW Constant Propane Water Heater With 1.6kg Oxygen Free Copper Heat Exchanger
Tankless Water Heater Constant Propane Water Heater 16KW Water Heater Instant Hot Water Heater
Technical date
| Model number | L1PB16-NA |
| Rated Gas Pressure(Pa) | 2000/2800 |
| Gas Type | NG/LPG |
| Rated Gas Input(kw) | 16 |
| Rated Gas Output(kw) | 15.9 |
| Power Supply | 20-50HZ |
| Efficiency Under Rated Heat Input(%) | Above 88% |
| Lift Of pump(m) | 5 |
| Temp.Range Of Heating Water(℃) | Radiator:30-80 Floor Heating:30-60 |
| Electric Power(W) | 110 |
| Application Water Pressure(Mpa) | 0.1-0.3 |
| Expansion Tank Capacity(L) | 6 |
| Water Circulation Type | Airtight Forced Circulation |
| Preset Pressure Of Expansion Vessel(Mpa) | 0.1 |
| Heating Area(㎡) | 70-140 |
| The Minimum Starting Flow (L/min) | 2 |
| The Minimum Closed Flow(L/min) | 1.6 |
| Applicative Water Pressure(mpa) | 0.03-0.8 |
| △T=30℃ Hot Water Supply(kg/min) | 7.5 |
| △T=25℃ Hot Water Supply(kg/min) | 9 |
| Temp.Range Of DHW Supply(℃) | 30-60 |
| Air Input/Exhaust Duct(mm) | φ60/φ100 |
| Connections(mm) | For Gas&Heating Water Pipes:G3/4 For DHW Pipes:G1/2 |
| Sparated Input/Exhaust Duct(optional) | φ80/φ100 |
| The length Of Flue Dust(m) | 1 |
| Noise On Working(DB) | ＜42 |
| Temperature Control | Gas Proportional Adjustment |
| Exhaust Type | Forced Exhaust |
- Integrated 24-hour/ week timer allows to set period of times with normal or lower heating temperature within each day of week with the benefits of comfort and low gas consumption..

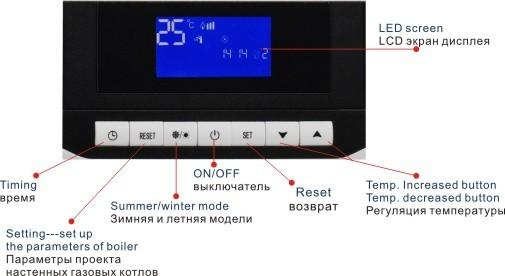

- Indication of temperatures, working modes, power level and error codes on the color multifunctional LED display.
- Frost protection: Burner and pump will be switch on automatically by danger of freezing. It is allowed to use antifreeze liquid instead of water in the heating system.
- Protected service menu for internal functions and working parameters adjusting.
- Indication of temperatures, working modes, current burner power and error codes on the color multifunctional LED display.
- Sectional stainless steel condensing heat exchanger for condensation and utilization of latent of the water vapors from exhausting smoke with efficiency till 96%.
- Modulation: boiler output changes automatically to keep the set heating and DHW temperature constant, with great optimization of gas consumption.
- With simple operation muti-function human-machine conversation system.
- 24H timing switch enable setting on /off with random needs.
- With modular structure design, advances assemble process,ensure excellent quality.
- Integrated design of control system, 120 degree turns over freely, convenient for maintenance.
- With creative slip control board, the combination of art and practicality.
- Superial high heat efficiency to reach European standard of three star, energy saving and be more comfortable.
- The system is controlled by intelligent micro computer. With automatic checking and judging, all working condition is clear.
- With 22 kinds of safe protection to protect your whole family.
- With hung blue LCD display and all working condition is clear.
- With overtime protection when time for constant domestic hot water is more than 60 minutes, and the bath would be more safe.
- Water flow and temperature double control, provides stable domestic hot water temperature.
- Gas flow proportional control,provide sable heating temperature.
- Shower water system adopts water flow and temperature double control, achieve European 3-star level.
- European fashion design, beautiful and fashion.
- With Gas Automatic Adjustment technology, it makes the combustion completely and more environmental-friendly(Optional).
- With convenient and quick functions: Comfortable hot water adjustment, night mode, out mode.
- All the important components are from the top-ranking professional manufacturers all over the world, pass strict reliability and resistance tests by Dongyuan company technology testing center.
- With temperature controller, can freely set different degrees in house in different time for any specific requirements,satisfying energy-saving and individual needs.
- High flow hot water central supply system,able to provide multiple users with hot water simultaneously.
- Intelligent constant temperature technology built-in to maintain constant temperature water flow.
- On line temperature dynamic display and automatic error defecting code,to be used and maintained.
- Adopting European combustion technology and heat exchanging technology,Increase heat efficiency and save energy.
