Digital Display Wall Hung Gas Boiler For Heating And Hot Water 36000W

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: 30days after receiving the deposit

Brand: Dongyuan

Product Description

Wall Hung Gas Boiler With Digital Display For Heating And Hot Water

PRODUCT DESCRIPTION

1 Large screen LED display automatically displays various data and codes of combi boiler

2 Four kinds of fixed heating timing mode,also you can adjust heating timing mode by yourself

3 Smart thermostat,eddectively slove the problem of temperature changes caused by unstable water pressur

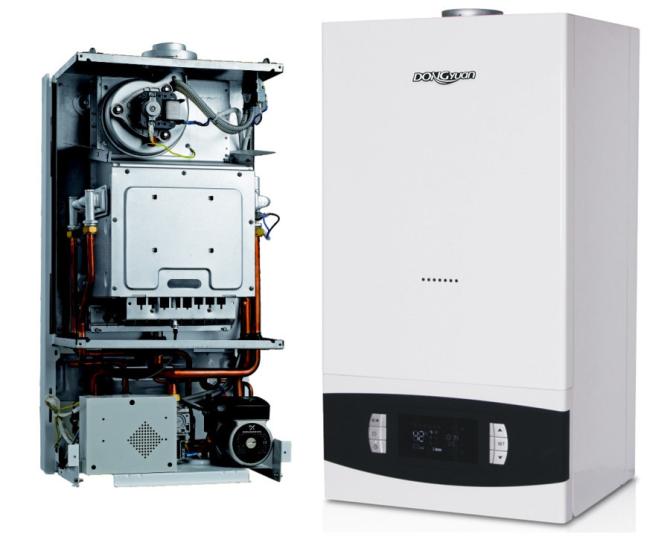

PRODUCT DISPLAY

Technical data

Model Number	L1PB32	L1PB36
Gas Type	NG/LPG
Rated Gas Pressure(Pa)	2000/2800
Rated Gas Input(kw)	32	36
Rated Gas Output(kw)	28.2	31.7
Efficiency Under Rated Heat Input(%)	Above88%
Power Supply	20-50HZ
Electric Power(W)	145	145
Temp.Range Of Heating Water(℃)	Radiator:30-80 Floor Heating:30-60
Heating Area(㎡)	200-300	200-300
Lift Of pump(m)	7	7
Application Water Pressure(Mpa)	0.1-0.3
Expansion Tank Capacity(L)	8	8
Preset Pressure Of Expansion Vessel(Mpa)	0.1
Water Circulation Type	Airtight Forced Circulation
△T=25℃ Hot Water Supply(kg/min)	16	18
△T=30℃ Hot Water Supply(kg/min)	13.3	15
Temp.Range Of DHW Supply(℃)	30-60
Applicative Water Pressure(mpa)	0.03-0.8
The Minimum Starting Flow (L/min)	2
The Minimum Closed Flow(L/min)	1.6
Connections(mm)	For Gas&Heating Water Pipes:G3/4 For DHW Pipes:G1/2
Air Input/Exhaust Duct(mm)	φ60/φ100
Sparated Input/Exhaust Duct(optional)	φ80/φ100
The length Of Flue Dust(m)	1
Noise On Working(DB)	＜42
Exhaust Type	Forced Exhaust
Ignition Type	Integrated Automatic Ignition
Temperature Control	Gas Proportional Adjustment
