Amphibious Screw type CCTV and sonar sewer/water pipe inspection camera system

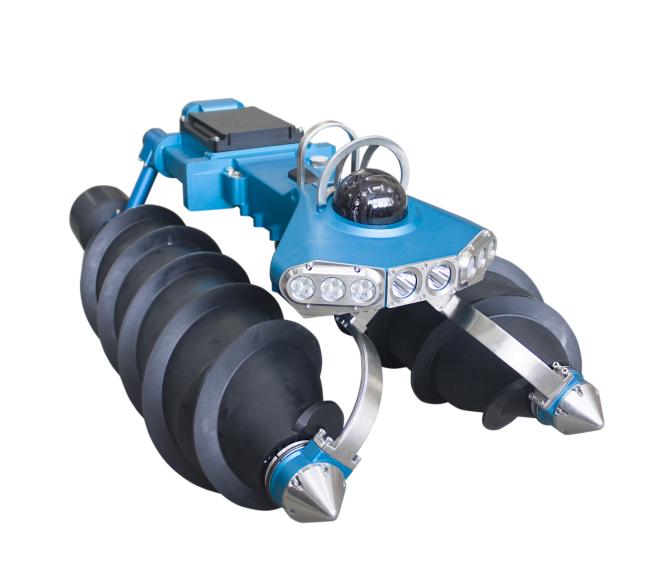

TVS-8000 Amphibious Screw type CCTV and sonar sewer/water pipe inspection camera system adopts spiral propulsion structure, which is suitable for working in various complex environments such as water surface, mud, swamp and so on. Equipped with 360° pan-tilt-zoom camera, it can inspect with high-definition images. The high brightness LED array is suitable for large pipes, canals and box culverts. It can be equipped with sonar probe to display images underwater surface, thus detecting the cross-section and silt depth under water pipes and canals over-water at the same time.
System Configuration
| Standard Configuration | Optional Parts |
| Amphibious robot | Lizard for small size |
| Motorized cable reel | Main controller |
| Remote controller | Sonar probe |
| Software | Portable cart |
| Removable lithium battery |
Features:
1. Used for both water and non-water pipes
2. 360 degree pan-tilt-camera
3. Sonar inspection available
4. Good for long distance
Technical Parameter
| Amphibious robot |  |
1. suitable for pipe DN600 and above 2. HD pan-tilt-zoom camera 3. Spiral propulsion, overwater, mud, silt, swamp and other complex fields 4. Combined with sonar system for underwater inspection 5. 8 sets high-intensity LED, inspection especially for large culvert 6. Large capactiy lithium battery removable 7. Double DC brushless motor, strong power 8. Good for long distance 9. Laser measurement of water level 10. Overall dimension: 900*520*310mm 11. Weight: 18kg
|
| Manual cable reel |  |
1. Base station architecture, network cable, WIFI, special line and other signal transmission modes 2. Video signal and control command, lossless and delay free transmission 3. Tensile floating cable, auto winding and traversing 4. Built-in battery, and removable 5. Dimension: 510*400*450mm 6. Weight: 26.5kg 7. Cable stanard length: 200m, 300m optional
|
|
Remote controller
|
 |
1. Simple, convenient and flexible operation 2. Self diagonosis function, status visible 3. Robot walking posture display 4. Wireless/wired dual working mode 5. Compass indicates the direction 6. Weight 0.5kg
|
| Software |  |
Operation software to control the robot and camera movements. |
OPTIONAL PARTS
