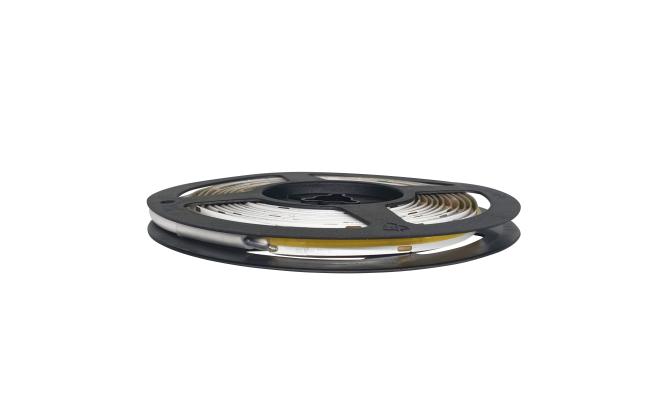

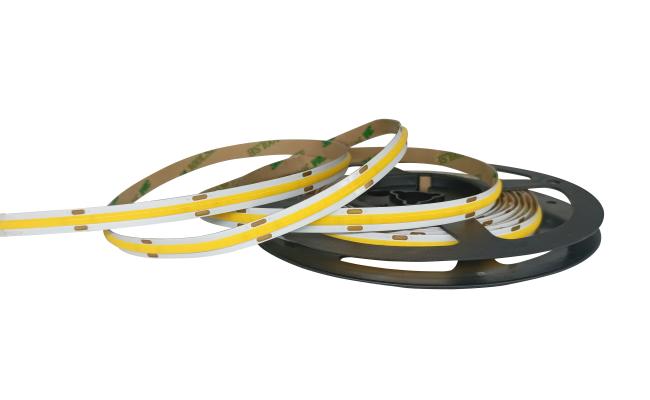

12v 24v Cob Led Strip Light Outdoor For Wine Cabinet
12V24V Project Lighting Wine Cabinet, Wardrobe, Layered Lighting
Why choose GM LED Strip Light
1.PCB board: GM use at least 2 ounces pcb board, some are 3 ounces and 4 ounces for better dissipation. They are 100% pure copper. Most of our PCB board are UL listed from the PCB producer of Hongqi Lighting and Founder Soonest Electronics.
2.LED Chip: GM mostly use Epistar brand led chips. We can do other brand chips according to customer’s request, for example, Cree, Samsung, , San’an, Honglitronic and Smalite led chips. All of these led chips are in high quality. We only focus on high quality.
3.Color Rendering Index: GM use at least Ra80 led chips to do our led strip lights. When we test by the integrating sphere machine, it usually shows Ra85 for most of our led chips. We also use many Ra90 and Ra95 led chips for special projects. We can offer the test report for each batch of our led strip light.
4.Uniformity: GM always keep the same bin color temperature for all our led strip lights. It’s very important to our customers.
5.Waterproof Rating: We not only can offer traditional IP20 IP65, IP67, IP68 waterproof process, but also new silicon extrusion process forIP20 IP65, IP66, IP67, IP68 waterproof ratings in dotless milk encapsulations. Most of our waterproof mold are private mode. More information, please refer to ……
6.Engineer Team: GM have our own engineer team. Whatever flexible strip pcb or rigid strip pcb, our engieer team can draw greber file for customers in the first time. We welcome all OEM and ODM orders from all over the world.
7.Service: Most of GM led strips are CE, ROHS, cUL and UL listed. UL NO: E494659. We warranty 3 years. Welcome to visit our factory, or send us email by Contact us.
Specifications:
- Emitting Colour:Nature white 4000-4500k ,
- Warm White 2800-3300K ,
- Cool White 6000-6500K ,
- Red/Green/Blue/Yellow/Amber /RGB
- Lumen: 21-23LM/led
- Working Voltage: DC12/24V
- LED Quantity: 60leds / m
- Power: 14.4W/M
- PCB Width:10MM
- LED Type: SMD 5050
- Protection Rate: Non-waterproof
- Package : each reel to a static-resistant bag ,5M/reel
|
weight
|
20(g) |
|
size
|
4(mm) |
|
Effective lifespan
|
50000(H) |
|
Can I adjust the light
|
yes |
|
power factor
|
0.09 |
|
model
|
COB-480 beads |
|
input voltage
|
12/24(V) |
|
LED bead model
|
COB |
|
Number of LED light beads
|
480 (pieces/meter) |
|
Single lamp bead lumen
|
24-26(lm) |
