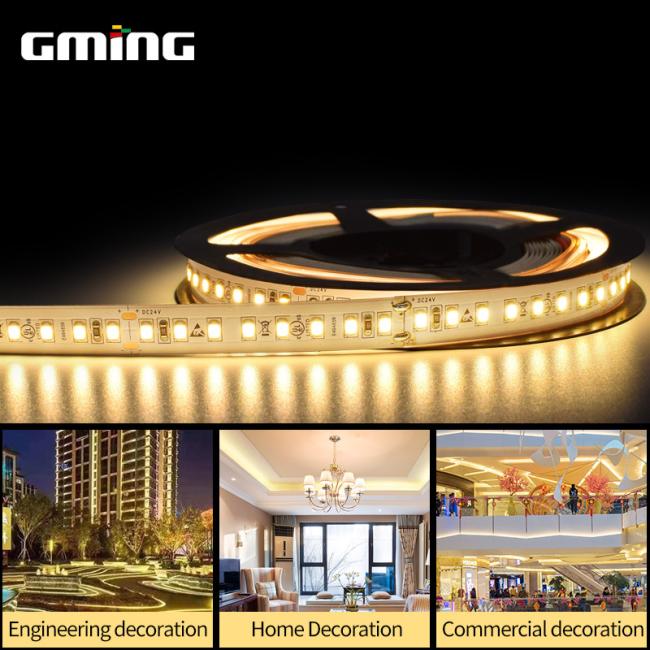

12mm pcb 120LEDs/m 26W Smd2835 Flexible Led Strip Light
Specification
| Model | GM-H2835Y-168-X-IPX | GM-H2835Y-196-X-IPX |
| Work Voltage | 24VDC | 24VDC |
| LED Qty (pcs/m) | 168 | 196 |
| CCT | 2200-6500K | 2200-6500K |
| Lumen(lm/m) | 2580-2620lm | 2710-2900lm |
| Ra | 80+ | 80+ |
| Max Power | 26W | 28W |
| IP Rate | IP20 | IP20 |
| Warranty | 3 Years | 3 Years |
| pcb Width | W=12mm | W=12mm |
| PCB Thickness | 2Oz | 2Oz |
Why choose GM LED Strip Light
1.PCB board: GM use at least 2 ounces pcb board, some are 3 ounces and 4 ounces for better dissipation. They are 100% pure copper. Most of our PCB board are UL listed from the PCB producer of Hongqi Lighting and Founder Soonest Electronics.
2.LED Chip: GM mostly use Epistar brand led chips. We can do other brand chips according to customer’s request, for example, Cree, Samsung, , San’an, Honglitronic and Smalite led chips. All of these led chips are in high quality. We only focus on high quality.
3.Color Rendering Index: GM use at least Ra80 led chips to do our led strip lights. When we test by the integrating sphere machine, it usually shows Ra85 for most of our led chips. We also use many Ra90 and Ra95 led chips for special projects. We can offer the test report for each batch of our led strip light.
4.Uniformity: GM always keep the same bin color temperature for all our led strip lights. It’s very important to our customers.
5.Waterproof Rating: We not only can offer traditional IP20 IP65, IP67, IP68 waterproof process, but also new silicon extrusion process forIP20 IP65, IP66, IP67, IP68 waterproof ratings in dotless milk encapsulations. Most of our waterproof mold are private mode. More information, please refer to ……
6.Engineer Team: GM have our own engineer team. Whatever flexible strip pcb or rigid strip pcb, our engieer team can draw greber file for customers in the first time. We welcome all OEM and ODM orders from all over the world.
7.Service:Most of GM led strips are CE, ROHS, cUL and UL listed. UL NO: E494659. We warranty 3 years. Welcome to visit our factory, or send us email by Contact us.
Parameter:
| Light Angle | 120 degree |
| Product length | 5M/Roll |
| Power rating | 12W/M |
| PCB color | White PCB |
| Operating Temperature | -20℃~+45℃ |
| Storage temperature | -20℃~+60℃ |
| Environment humidity | 40-70% RH |
| LED Life time | Mean time between failure(MTBF):50-100K hours |
| Voltage | DC12V-24V |
| PCB width | 8mm |
Features:
1. 100% Brand New.
2. Super bright 2835 SMD top LED, high intensity and reliability.
3. Continuous length, packed with 5 meter.
4. Cuttable every 6 LEDs along the cutting marks, according to practical requirement.
5. Long life span 50,000+ hours.
6. Flexible ribbon for curving around bends.
7. Low power consumption.
8. Completely smooth and even light spread, solving the uneven luminous problem.
9. Ultra-bright but running at low temperature.
10. High brightness, low power, long life, easy installation, the production of highly customizable.
11. Easy for transporting, decorative effect is brilliant, energy saving, environmental protection.
Applications:
1. Interior design, such as decoration of home, hotel, KTV, bar, disco, club etc.
3. Advertisement project, such as Outdoor illuminated signs, billboard decoration etc.
4. Display design, such as decoration of drinks cabinet, shoe cabinet, jewelry counter etc.
5. Underwater lighting engineering, such as decoration of fish tank , aquarium, fountain etc
Packaging & Shipping , Trade Terms:
| Type | Outer Carton Size(L×W×H) (cm) | Qty/Carton(roll) | G. W(kg/roll) |
| IP20 | 54*30*38 | 120 | 0.15 |
| IP65/IP67 | 54*30*38 | 100 | 0.25 |
| 3528 IP68 | 54*30*38 | 100 | 0.35 |
| 5050 IP68 | 54*30*38 | 100 | 0.45 |
Shipping
- Packaging Detail: box packing according to clients' requirements, OEM and ODM is available.
- Delivery Detail: 2-5days for samples,6-10 days for mass production.
- Shipping Detail:By express: Such as DHL,UPS, TNT, FEDEX ect.
- Air Freight:When you order moer than 100kg which will be more economical than express,
- Sea freight: Shipping by SEA is available after customer provide destination port.
- Agent designated by client: Please tell us the contact details of your shipping agent/forwarder.
Payment Terms
- Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before delivery.
- MOQ: 1pcs,
- Warranty : 3 years,
- Package Informations: 100rolls per box /The volume of the box is 54cmx30cmx38cm .
