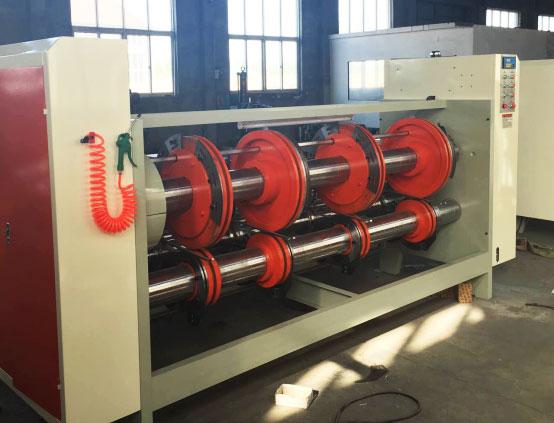

Semi automatic rotary slotter machine(Chain feeding)
1.Chain feeding.
2.Complete machine wallboard and other important pieces are all made by high precision process center and grinded by digit-controlled grinder.
3.All the transmission shafts are high quality steel, after heat-treatment grinding, high precision.
4.All the gear transmission adopts the high quality steel, after heat-treatment grinding, high precision.
5.The over machine transmission adopts the hard-free connection ring to eliminate the interval, suitable for long-term high speed using.
6.the whole machine undergoes the spray lubrication and is equipped with engine oil automatic balance facilities.

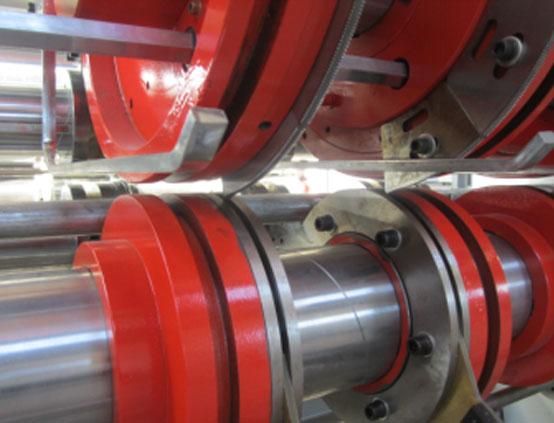

7.The slotting knife axial adjusted by manual.
8.the slotting knife is serrated knife, the incision is smooth.
Technical Parameter:
| Parameter name | Specification | |||||||
| Reamer plate diameter | 400mm | 480mm | ||||||
| Style | 2000 | 2200 | 2400 | 2600 | 2000 | 2200 | 2400 | 2500 |
| Max.board area (mm) | 1200x2000 | 1200x2200 | 1200x2400 | 1200x2600 | 1400x2000 | 1400x2200 | 1400x2400 | 1400x2500 |
| Min.board area (mm) | 300x600 | 300x600 | 300x600 | 300x600 | 340x600 | 340x600 | 340x600 | 340x600 |
| Slot width (mm) | 7.0 | 7.0 | 7.0 | 7.0 | 7.0 | 7.0 | 7.0 | 7.0 |
| Positive reamer (mm) | 260 | 260 | 260 | 260 | 260 | 260 | 260 | 260 |
| Negative reamer(mm) |
80 |
80 |
80 |
80 |
80 |
80 |
80 |
80 |
| Slot speed (pieces/min) | 0-60 | 0-60 | 0-60 | 0-60 | 0-60 | 0-60 | 0-60 | 0-60 |
