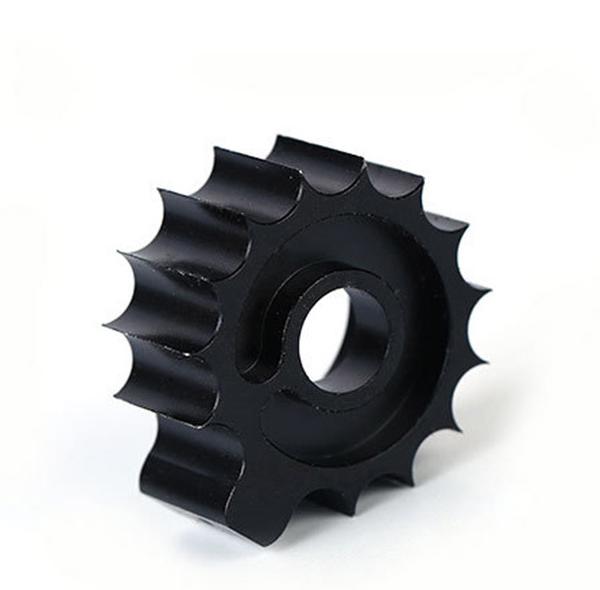

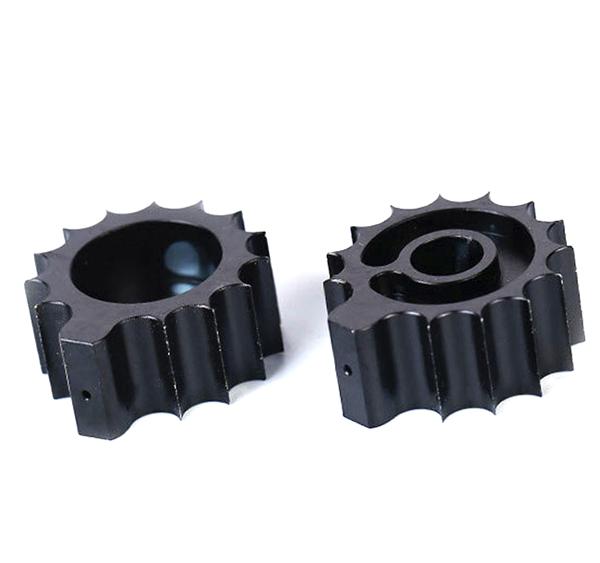

Custom Plastic Multi Cavity Injection Moulding Parts For PBT Gear Housing
Custom plastic injection mold for PBT gear housing plastic injection molding
Mould Information:
| Product name | high precision mini plastic injection molding electronic parts |
| Plastic material | PP, PC,PVC, Silicone,Rubber,PPA, ABS, PE, Acrylic,POM, PA6,HDPE, etc. |
| Steel of cavity and core |
Commonly used material as below: SCHMOLZ: P20HH, 2738, 2083H,2343, 2344, etc. DIN: 1.2738,1.2083, 1.2343, 1.2344, 1.3343, etc. AISI: P20, H13, D2, D6, M2, etc. ASSAB: 718HH, Nimax, 8402, 8407, XW-10, XW-5, EM2, etc. Japanese: HPM2, NAK80, SKD61, SKS3, SKD11, DC53, SKH51, etc. |
| Runner |
1.Hot Runner: (Synventive from Netherland) or as your requests. 2.Cold Runner. |
| Mold life |
Commonly used: 1. 300,000-500,000 shots for 1 year under normal use procedure for pre-hardness steel material. 2. 5.00,000 shots for 1 year under normal use procedure for heat treatment steel material. |
| Delivery time |
Depends on the size and structure. Normally: 25-30 working day. |
| Machine center | High-speed CNC, Wire cutting, EDM, Grinder, Great Grinder, CNC milling, Drilling and milling, Stamping punching machines, injection machine, Inspection. |
| R&D |
1. Drawing design and making for products and mold; 2. Mold drawing revising; 3. Production time and quality control in each machining process. |
| What we can offer you | |
|
Our main Business |
1.Motorcycle moulds: motorcycle mould. scooter part mound. dune buggy mould.ATV mould. |
| Mould Design | |
| D&R dept. |
5 senior engineers and over 30 technical designers, supported by the professional and |
| Quality Control | |
|
Advanced |
A whole set of production lines :efficient, precise processing and testing equipment, including |
| Quality System | certificated by ISO9001-2008 for several years,strict quality control adhered to the ISO requirements |
| Process Service | |
| A | response on Email, telephone calls or fax |
| B | supply the quotation and product design and mould design |
| C | communication on the technical points in-time |
| D | Weekly Reporter for you about the mould machining progress and mould finishing schedule |
| E | mould test and sample delivery in-time |
| F |
Good After-sale service.24 hours repairing service,offer you one year's guarantee for the |
1. What is your business?
A. Precision Plastic Mold manufacture
B. Medium and large plastic mold manufacture
C. Injection molding
D. professional designing and making
E. R&D service
2. How about tolerance?
Mold tolerance is 0.005 mm, Product tolerance is 0.02 mm.
3. What steel do you usually use?
We usually use steel of P20, P20H, H-13,O-1,S-7,420,420H,D2, NAK80, 1.2311, 1.2711,1.2344,1.2510,1.2083,1.2316 and 1.2379.
4. What standard components do you usually use?
We use standard components from LKM, DAIDO, HASCO, DME. (Hot Runner: MOLD MASTER, HUSKY, DME, HASCO, INCOE, THERMOPLAY, YUDO.)
5. What do you need for a quotation?
We need 2D part drawing & 3D drawing, and specific mold or part requirements.
2D File Format dwg /dxf /pdf/jpg ,3D Model Format step /x_t /igs /prt
6.How about your mold payment terms?
Mold payment terms:40%-30%-30%.The first payment is when you sign the order, you should pay us 40% of the total value; the second payment is when you receive our sample product, you should pay us 30% of the total value; the last payment is when we deliver the mold for you, you should pay off the balance payment,30% of the total value.
7. How about your part payment terms?
Part payment terms:50%-50%.The first payment is when you sign the order, you should pay us 50% of the total value to purchase the material; The last payment is when we deliver the part for you, you should pay off the balance payment,50% of the total value.
8. What’s your after-sales?
After-sales: Our customer’s mold drawings and the whole data will be kept in a database for 5 years at least.so that when you need our technical support or service, we can be easy and possible to serve you and your customers.
