0.06mm Precision Pin Point Gate Plastic Injection Mold
Price:
2000dollars~10000dollars
MOQ:
1set
Delivery Time:
25-30days
Brand:
OEM/ODM
Product Description

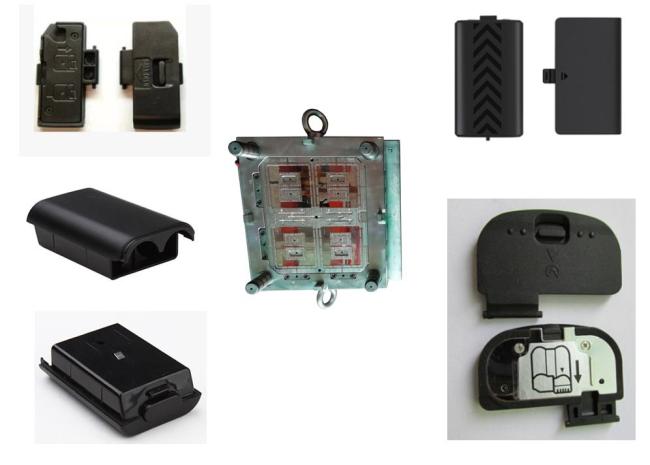

Customize Digital Products Plastic Components with Smooth Surface Injection Mold
High quality pp material, excellent toughness, not easy to break.We are a professional manufacturer for OEM and ODM--plastic injection molding products.
Mould Preform Weight Refer
| Type | Height(mm) | Width(mm) | Thickness(mm) | Weight(kg) |
| 6 Cav | 710 | 290 | 490 | 760 |
| 8 Cav | 540 | 400 | 490 | 810 |
| 12 Cav | 750 | 360 | 490 | 1020 |
| 16 Cav | 880 | 360 | 510 | 1240 |
| 24 Cav | 940 | 505 | 510 | 1880 |
| 32 Cav | 910 | 660 | 510 | 2360 |
| 48 Cav | 1110 | 610 | 555 | 2930 |
| 64 Cav | 1355 | 610 | 555 | 3560 |
| 72 Cav | 1140 | 880 | 555 | 4320 |
| Above mentioned data is based on 16gr preform with PCO neck. | ||||
| 28mm Neck Finish | 20gr Water Bottle | 21gr CSD Bottle | 48gr CSD Bottle |
| 12 Cavities | Approx.2200pcs/hr | Approx.2100pcs/hr | Approx.1200pcs/hr |
| 16 Cavities | Approx.2700pcs/hr | Approx.2800pcs/hr | Approx.1500pcs/hr |
| 24 Cavities | Approx.3700pcs/hr | Approx.3600pcs/hr | Approx.2400pcs/hr |
| 32 Cavities | Approx.5000pcs/hr | Approx.4800pcs/hr | Approx.3000pcs/hr |
| 48 Cavities | Approx.7200pcs/hr | Approx.6700pcs/hr | Approx.4300pcs/hr |
| 48 Cavities with robot arm cooling system | Approx.10000pcs/hr | Approx.9000pcs/hr | Approx.7000pcs/hr |
Company Profile

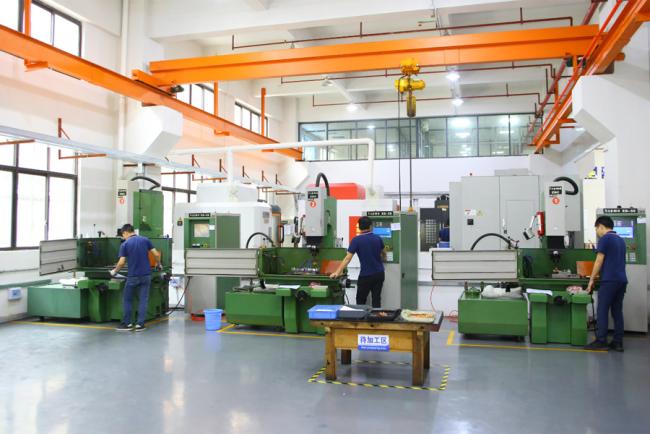

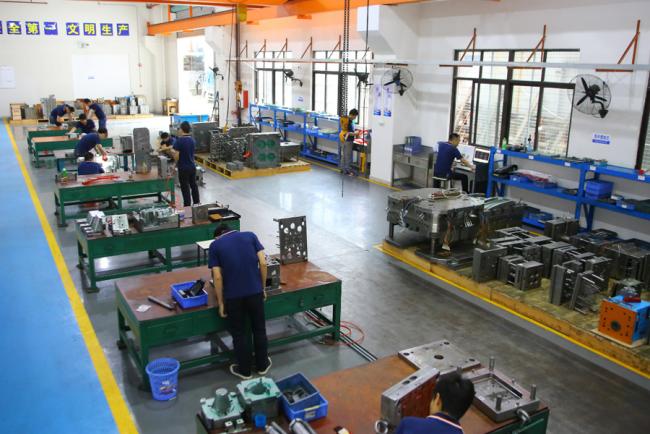

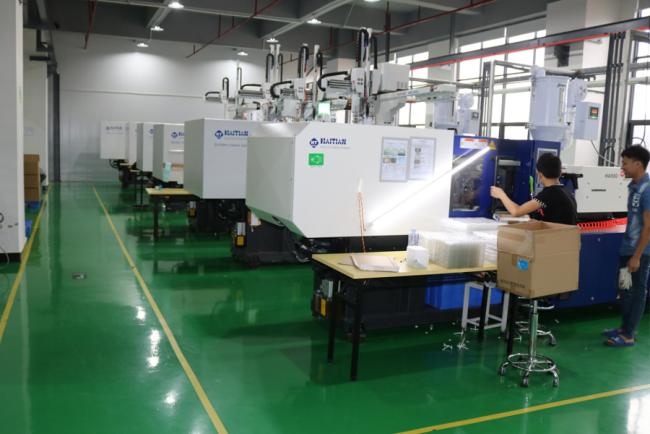

Workshop show
Our Customers
Packaging
Shipment & Payment
FAQ About Plastic injection mold
Q1: What kind of molds do you make? Plastic injection mold, Compression mold or something else?
A1: We are mainly making plastic injection mold and die-casting mold.
Sometimes we also make rubber molds according to our customer’s requirements.
Q2: Do you build hot runner plastic moulds?
A2: Yes. We build hot runner Plastic Moulds and specialized in many different systems, such as DME, Master, Mastip, Hasco, Yudo, Incoe, Husky, etc.
The manifold recommended for your tool is selected to meet your individual needs.
Q3: What types of files do you accept (drawings)?
A3: With our CAD systems we can accept the following files:STP, IGS, DXF, DWG, Cad Key PPT, STL, X_T, CATIA, UG files, etc.
Q4: What kind of steel do you use for plastic mouldings?
A4: We can use any type of steel appointed by customer or popular in the market.
Such as P20, 718, 8407, NAK80, H13, S136, DIN 1.2738, DIN 1.2344, etc.
Q5: Can you provide the steel certificate and heat-treatment certificate?
A5: Yes, We can provide steel certificate or hardness certificate to prove.
Q6: Can you make the texture/text/heat-treatment/nitriding for the injection mold plastic?
A6: Yes, As a plastic mold factory, we have long-term cooperated subsidiary factories that do those processes.
They are professional and well reputed in our local market.
Q7: How long is the lead-time for a plastic injection mold?
A7: It all depends on the mold’s size and complexity. Normally, the lead time is 25—45days.
If the Plastic Mouldings are very simple and not big size, we can work out within 15 days.
Q8: Do you make spare parts for your customer?
A8: Yes, we will provide spare parts for the mold if needed or required by clients.

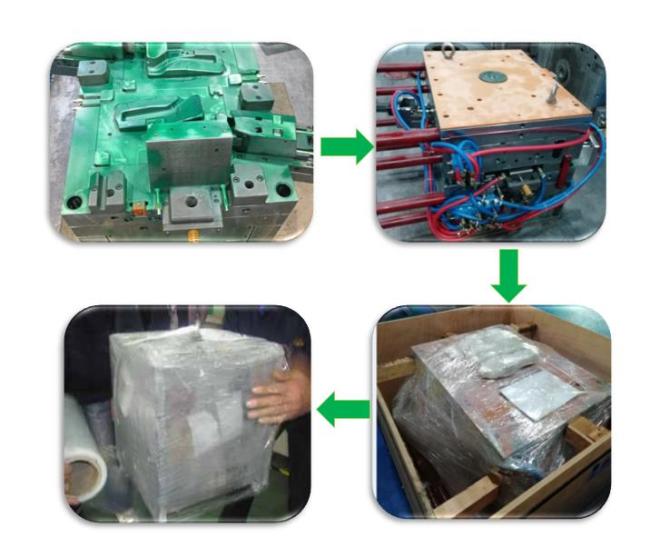

Q9: How do you pack the plastic moulds?
A9: We pack the plastic moulds with a wooden box.
There are the main 3 operation steps.
First Step: We daub some rust preventive oil on the mold.
Second step: We pack the mold with thin plastic film to avoid moisture.
Third step: We put this plastic film packed mold in a wooden box, and fix it to avoid any movement.
