Automatic Tower Type Dry Mortar Production Line with 10-30 T/H Capacity PLC Control System and Twin Shaft Mixer
Complete production line for wall putty, sand cement mixer, tile adhesive, glue, and grout manufacturing.
This plant adopts latest German technology with tower-type silo configuration and advanced management systems in automatic control, significantly improving user-friendly operation and automation capabilities. The production capacity ranges from 10-30 tons per hour, featuring automated batching, weighing, conveying, mixing, packaging, and palletizing processes to achieve maximum output with minimal manpower.
- High Degree of Intelligence: PLC control system enables full automation including feeding, batching, weighing, conveying, mixing, packaging, and palletizing
- Precise Ingredients: Automatic calculation and weighing of each ingredient dosage
- Tower Layout Structure: Shortened transportation distance for enhanced production efficiency
- Twin Shaft Mixer: High mixing uniformity prevents segregation of materials with varying physical properties
- Cementing Materials: Cement, lime, plaster
- Aggregates: Yellow sand, quartz sand, limestone, dolomite, expanded perlite
- Mineral Admixtures: Industrial byproducts, industrial slag, fly ash, pozzolana, fine silica powder
- Water-retention and Thickening Materials
- Chemical Additives
Our dry mix powder mortar plant produces various types of dry mortar including:
- Wall putty
- Skim coat
- Plaster mortar
- Gypsum mortar
- Ceramic tile adhesive
- Tile glue
- Tile grout
- Tile joint compounds

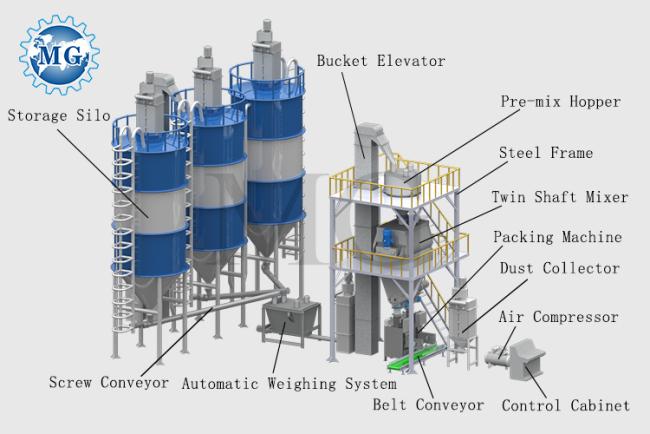

The dry mortar manufacturing process follows these steps:
- Raw materials are transported into silos via bucket elevator or pump truck
- Materials are conveyed from silos to automatic weighing scale according to formula ratios using screw conveyors
- Premixed materials are lifted into premix hopper by bucket elevator
- Materials enter twin shaft paddle mixer for uniform mixing
- Mixed materials are transferred to automatic packing machine
- Packed bags are conveyed to next processing stage via belt conveyor
| Model | 2000L Mixer Plant | 3000L Mixer Plant | 4000L Mixer Plant | 6000L Mixer Plant |
|---|---|---|---|---|
| Capacity | 10-12T/H | 15-20T/H | 20-25T/H | 30-50T/H |
| Machine Height | 8-10m | 10-14m | 10-14m | 15-20m |
| Total Power | 80-90KW | 90-100KW | 90-100KW | 100-120KW |
| Workers Required | 2-3 person | 3-4 person | 3-4 person | 3-4 person |
| Workshop Required | 500-600m² | 600-800m² | 600-800m² | 800-1000m² |
| Bag Belt Conveyor | B500X5000mm | B500X5000mm | B500X5000mm | B500X5000mm |

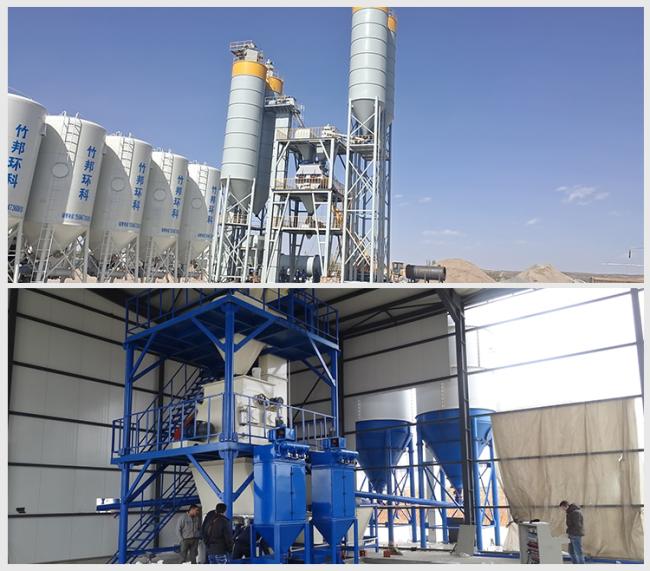

China Zhengzhou MG Company has extensive project experience both domestically and internationally. With comprehensive knowledge in dry mortar equipment installation and production processes, we provide professional project design, process optimization, and technical solutions including production improvements and formulation expertise for various dry mortar types.
Zhengzhou MG Industrial Co., Ltd., established in 2003, is a leading manufacturer of building material equipment in China. For over 20 years, we have provided customers worldwide with professional, efficient solutions including high-quality machinery, formulation technology, and specialized additives.
Our product range includes:
- Dry mortar plants
- Thermal insulation mortar production lines
- Sand dryers
- Screw ribbon mixer machines
- Twin shaft paddle mixer machines
- Impulse dust collectors
- Automatic packing machines
If you are interested in our dry mortar production line, please feel free to send us an inquiry or leave your contact information.
