220 - 440v Voltage Ceramic Tile Adhesive Production Line 6 - 8t Weight 1 Year Warranty
China Manufactory Equipment for the Production of Dry Mortar Tile Adhesive
1. Product Description
MG Automatic Dry Mortar Production Line adopts European advanced design concept and latest automatic control management system. Tower layout has been applied in the overall design and man-friendly operation with automation level has been largely improved. The capacity can reach 30,000-100,000 tons per year according to different configuration.
Main configuration
Electric control cabinet; Cement silo, Weighing system; Feeding hopper; Impulse dust collector; Bucket elevator; Premix tank; Twin shaft agravic mixer; Finished product holding tank; Automatic packaging machine; Air compresser.
It can be equipped with grinding machine and drying machine according to requirement.
Bonding mortar: Masonry mortar, wall and floor tile adhesive mortar, tile glue, anchorage mortar etc.
Decoration mortar: Decorative plaster, Thin set coating, inner and outer wall putty, Screed mortar, colorful decoration mortar etc.
Protection mortar: Water-proof mortar, anti-corrosion mortar, self-leveling mortar, wear resistance mortar, thermal insulation mortar, sound insulation mortar, AAC jointing mortar, dry sand mixture, repair mortar, mildewproof mortar, shielding mortar etc.
2. Product Specification
If the capacity you requested is different,you can choose our Station type dry mortar plant as below.
| Model | Simple dry mortar plant | Improved Simple dry mortar plant | Semi automatic dry mortar plant | Full automatic dry mortar plant |
| Out put | 1-3t/h | 4-5t/h | 5-8t/h | 10-30t/h |
| Components |
screw conveyor, horizontal ribbon mixer, storage tank, packing machine, control cabinet, air compressor |
screw conveyor, twin shaft mixer, storage tank, packing machine, control cabinet, air compressor | bucket elevator, twin shaft mixer, holding tank, packing machine, control cabinet, air compressor | cement silo, screw conveyor, automatic weighing system, bucket elevator, premix tank, twin shaft mixer, holding tank, packing machine, automatic control cabinet, air compressor |
| Occupied area | 20m² | 20m² | 50-60m² | 60-100m² |
| Total power | 5.5-7.5kw | 6-11kw | 24-28kw | 60-120kw |
|
Mixer volume |
3300*1050*2100(mm) | 2m³ | 2m³ | 2m³, 3m³, 4m³ |
| Equipment height | 3-4m | 3-4m | 6-8m | 8-13m |
| Man power | 2-3person | 2-3person | 3-4person | 3-4person |
| Batching and packaging | Manual batching & Automatic packaging | Manual batching & Automatic packaging | Manual batching & Automatic packaging | Automatic batching & Automatic packaging |
3. Flow chart

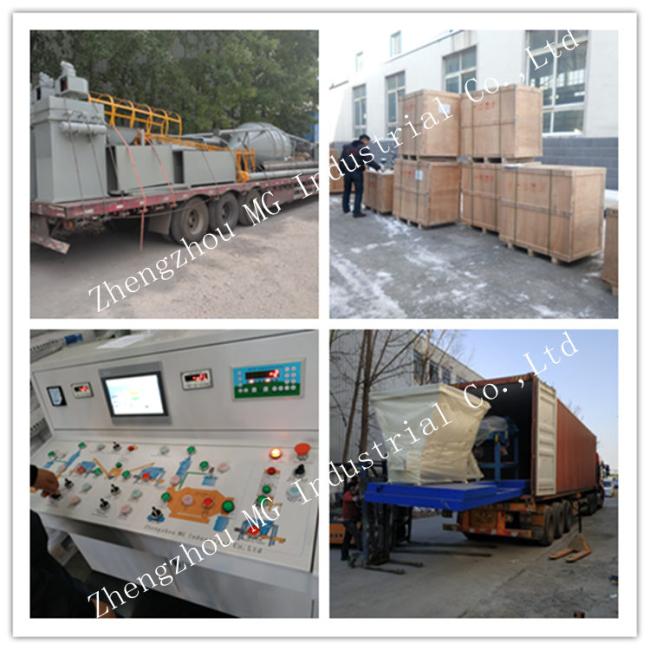

4.Product Delivery
5. Successful Case
6. About Us:
