5-15T/H Industrial Drum Rotary Sand Dryer Machine Three Cylinder
5-15T/H Industrial Three Cylinder Drum Rotary Sand Dryer Machine
1. Description of MG Three Cylinder Rotary Sand Dryer:
1. MG series three cylinder sand dryer is produced with three different diameter homocentric cylinder according to the certain mathematical relationship and cylinder structure then combinated by embedded with each another.
2. Due to special structure of threecylinder dryer, the length of the cylinder body is the single cylinder dryer one third. The occupation area than the single cylinder dryer save 65%, thus the capital construction investment deduced accordly.
3. MG series thress cylinder sand dryer adopts roller and belt friction transmission, has a low power transmission and reduces the noise of equipment. Sealing system adopts a micro touch technology, has a better sealing effect, reduces the
dust pollution. This dryer use coal, oil, gas and other various fuels, can dry lump, particle shape,and powder and so on many kinds of materials, accord with a policy to create an environment friendly, resource conservation-oriented society, and is an environmental protection energy-saving products which is the replacement of traditional drying equipment.
2. Technical Parameters of MG Three Cylinder Rotary Sand Dryer:
| Specifications of three cylinder sand drum rotary dryer | ||||
| Type of Three Pass Dryer | TDS623 | TDS625 | TDS6210 | TDS6220 |
| Drying capacity | 3-5t/h | 6-8t/h | 10-15t/h | 20-25t/h |
| Length | 2200mm | 2500mm | 2700mm | 5000mm |
| Diameter of drum | 1750mm | 2200mm | 2600mm | 2600mm |
| Motor powder | 4kw | 5.5kw | 7.5kw*1 | 7.5kw*2 |
| Reducer model | XWD-5 | XWD-5 | ZQ350 |
ZQ350*2 |
| Speed of drum rotation | 4-10r/min | 4-10r/min | 4-10r/min | 4-10r/min |
| Moisture of end products | <1% | <1% | <1% | <1% |
| Max.temperature inside | 700-750℃ | 700-750℃ | 700-750℃ | 700-750℃ |
| Outlet temperature | 60-80℃ | 60-80℃ | 60-80℃ | 60-80℃ |

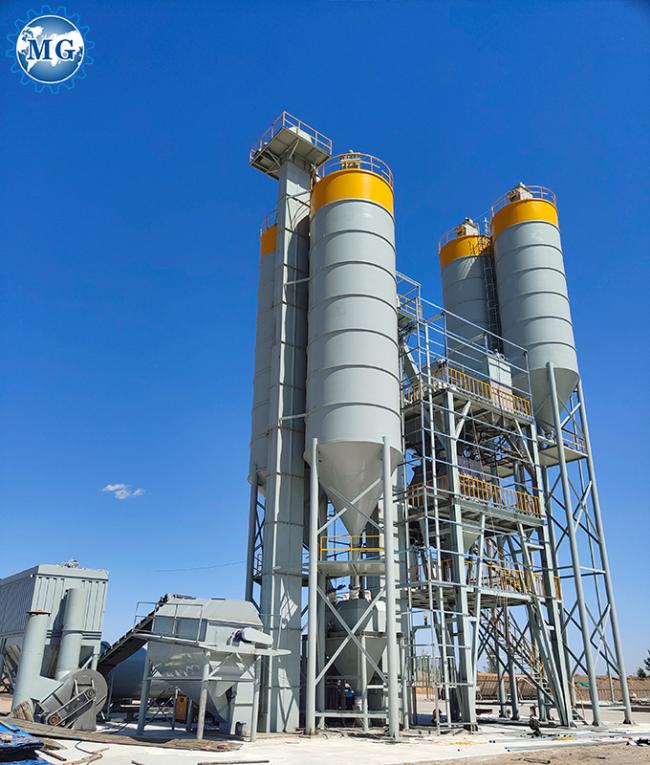

3. Clinet Woking site of MG Three Cylinder Rotary Sand Dryer:
We are professional manufacturer of dry mortar plant and sand dryer plant over 20 years, providing turnkey project from working site design, foundation drawing, installation and debugging, worker training, latest formula, chemicals, after-sale and life time technical support.
Welcome your inquiry and visiting!
