Sinotruck HOWO 25t-100t 8*4 Diesel Used Transport Delivery Lorry 12 Wheels Truck
Price:
Negotiation
MOQ:
1 unit
Delivery Time:
30-45 work days
Brand:
sinotruk
Product Description

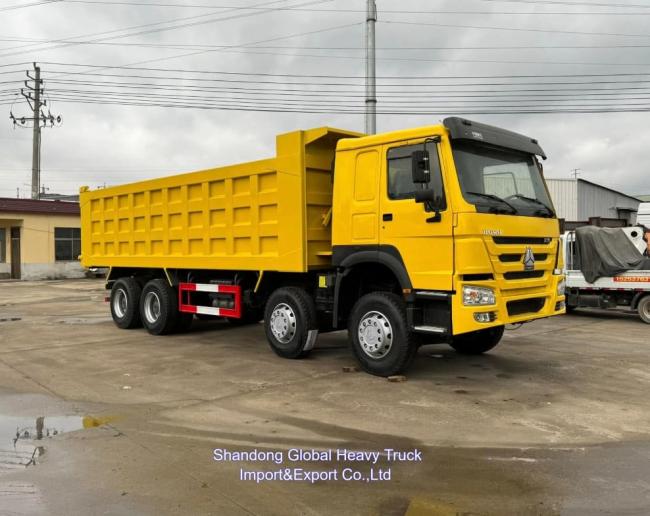

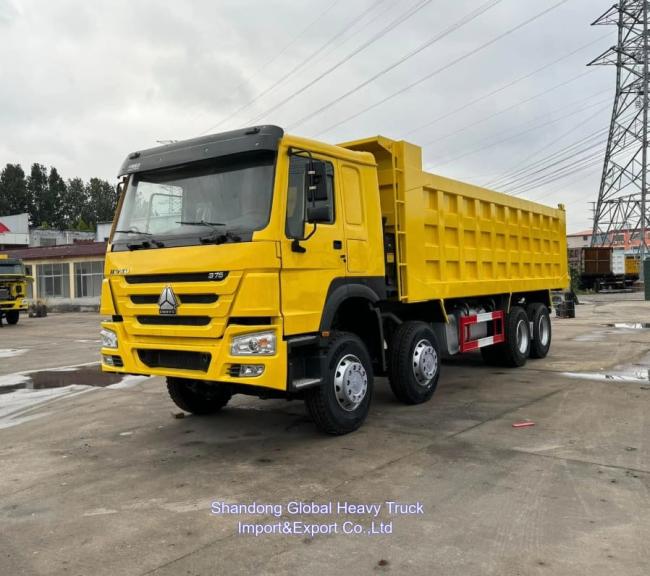

Sinotruck HOWO 25t-100t 8*4 Diesel Used Transport Delivery Lorry 12 Wheels Truck
HOWO 8x4 Dump Truck: A Reliable Choice for Heavy-Duty Transport
The HOWO 8x4 dump truck is a robust and versatile heavy-duty vehicle designed to meet the demands of construction, mining, and logistics operations. Here’s a detailed overview of its features and specifications:
Key Specifications
-
Chassis Model: ZZ3317N3567C1
-
Driving Type: 8x4
-
Production Year: 2024 (new model)
-
Engine:
-
Make: SINOTRUK
-
Model: WD615.47, Euro 2, 371 HP / WP12.400E201, Euro 2, 400 HP
-
Type: 6-cylinder in-line, water-cooled, turbocharged and intercooled
-
Displacement: 9.726 L
-
-
Transmission: HW19710, 10F & 2R, with PTO
-
Steering: ZF power steering, model ZF8118, hydraulic steering with power assistance
-
Front Axle: HF9, 2×9000 KGS, double T-cross section beam
-
Rear Axle: HC16, 2×16000 KGS, pressed axle housing, central single reduction with hub reduction and differential locks
-
Ratio: 5.73
-
Propeller Shaft: Double universal joint propeller shaft with gear-shaped coupling flange
-
Chassis:
-
Frame: U-profile parallel ladder frame with section of 300x80x8mm, reinforced sub-frame with cold-riveted cross members
-
Front Suspension: 10 semi-elliptic leaf springs, hydraulic telescopic double-action shock absorbers, and stabilizer
-
Rear Suspension: 12 leaf semi-elliptic springs, bogie spring, and stabilizer
-
-
Brake System:
-
Service Brake: Dual circuit compressed air brake
-
Parking Brake (Emergency Brake): Spring energy, compressed air operating on front shaft and rear wheels
-
Auxiliary Brake: Engine exhaust brake
-
-
Electrics:
-
Operating Voltage: 24 V, negative grounded
-
Starter: 24 V, 5.4 Kw
-
Alternator: 3-phase, 28 V, 1500 W
-
Batteries: 2×12 V, 165 Ah
-
Additional Features: Cigar lighter, horn, headlamps, fog lights, brake lights, indicators, and reverse light
-
-
Tires: 12.00R20, radial tires with one spare tire (optional: 315/80R22.5 tubeless tires)
-
Fuel Tank: 300 L
-
Cargo Body:
-
Dimensions: 7300×2300×1700 mm, 28.54 CBM
-
Floor Thickness: 8 mm, Side Thickness: 6 mm
-
Front Lifting System: Available
-
Features and Advantages
-
Robust Design: Built with a strong and reliable chassis, ensuring durability in demanding environments.
-
High Capacity: Large cargo body capacity makes it ideal for large-scale transport tasks.
-
Ergonomic Cab: Features a comfortable HW76 cab with a built-in sleeper, air conditioning, and advanced controls for operator comfort.
-
Advanced Safety: Integrated braking system and complete electrical configuration ensure driving safety and stability.
-
Versatility: Adaptable to various engineering needs, making it popular in construction and mining industries.
Applications
The HOWO 8x4 dump truck is widely used in:
-
Construction: Transporting materials like sand, gravel, and debris.
-
Mining: Hauling ores and heavy loads.
-
Logistics: Efficient transportation for large-scale projects.
| Traction | 8X4 |
| Driving type | LHD (RHD is option) |
| Cabin | HW NX Cab, with one sleeper bed, two seats, with A/C |
| Type | Forward control cab, hydraulically tiltable by 60° |
| Construction | Current standard all steel construction |
| Instrument panel | Clearly visible,ndicators of compressed air pressure, coolant temperature,engine oil pressure and battery charging |
| Seats | 4-point support fully floating suspension + shaock absorbers driver sdjustabable & passenger fixed |
| Seat safe belts | For driver & passenger |
| Engine Brand | SINOTRUK |
| Model | WD615.47 371hp |
| Emission | Euro II |
| Engine type | Diesel 4-stroke direct injection engine, 6-cylinder in line with water cooling ,turbo-charging |
| Displacement | 9.726 L /Diesel |
| Compression ratio | 17:1 |
| Bore/Stroke(mm) | 126/130 |
| Specific fuel consumption | 198g/Kwh |
| Gear Model | HW19710 |
| Brand | SINOTRUCK |
| Type | 10 Forward& 2 Reverse |
| Clutch: | Φ430 Diaphragm type, Single dry frictional disc, Hydraulic boosting hydraulically operating with air assistance |
| Steering Model | ZF8098 |
| Tyre | 12.00R20 Tyres |
| Fuel tank | 300L Iron Tank with locking fuel cap, fitted to the off side of the chassis |
| Front axle: | HF9 tons front axle with drum brake |
| Rear axle | HC16 16tons |
