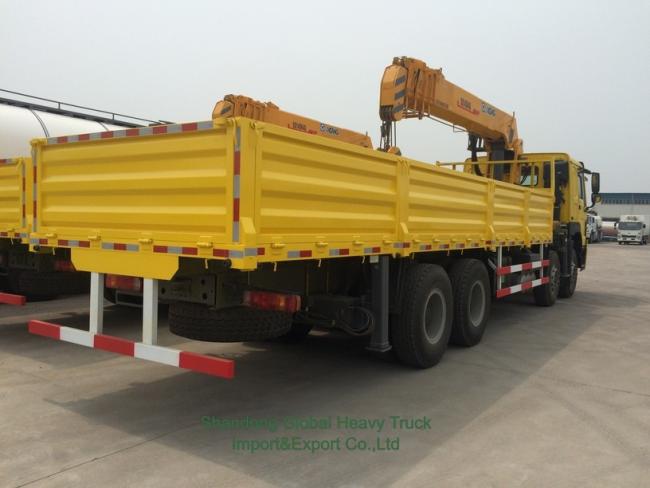

Brand New 6X4 HOWO Flatbed Truck Mounted Crane Telescopic Boom Truck
Brand New 6X4 HOWO Flatbed Truck Mounted Crane Telescopic Boom Truck
Product Description
Our Truck Crane—also called a hydraulic truck crane, mobile crane, truck‐mounted crane, or lorry crane—is a versatile lifting solution engineered for demanding industrial and commercial jobs. Whether you call it a truck with loading crane or a truck cargo crane, it delivers reliable performance in tight spaces and harsh outdoor environments.
Key Features
-
Lifting Capacity
Ranges from 2 t to 200 t to cover everything from light‐duty tasks to the heaviest loads. -
Arm Configurations
-
Straight Boom: Exceptional stability for standard lifts.
-
Folding Boom: Added reach and flexibility for complex jobs in confined areas.
-
-
Remote Control Option
Enables safe, precise operation from up to 50 m away. -
Chassis Compatibility
Easily mounts on major brands—Dongfeng, FAW, Foton, Sinotruk, Shaanxi (Shacman), T-King, Dayun, Yuejin, JMC, JAC, and more. -
Premium Hydraulic System
High-flow pumps, reinforced hoses, and precision valves ensure smooth, dependable lifting under continuous use. -
Customizable Layouts
Choose boom type, lifting capacity, outriggers, and chassis to suit your exact needs.
Applications
-
Construction: Transport and place steel beams, concrete forms, and materials.
-
Warehousing & Logistics: Load/unload pallets, crates, and bulky cargo in tight aisles.
-
Ports & Terminals: Handle containers, engines, and bulk goods with ease.
-
Salvage & Recovery: Rescue vehicles and lift heavy debris in challenging terrains.
-
Mining & Manufacturing: Install machinery, move heavy components, and support assembly lines.
Why Choose Our Truck Crane?
-
Factory-Direct Pricing: Competitive rates without middle-man markups.
-
Superior Build Quality: Durable steel structures and top-grade components for long life.
-
Full After-Sales Support: On-site training, preventive maintenance, and genuine spare parts.
-
Tailored Solutions: Configure specifications to match your budget and workflow.
NameHOWO CARGO TRUCK WITH CRANEDrive type6×4Kerb mass (kg)12500Rated loading capacity(kg)---Total mass(kg)25000Max. speed (km/h)75Min. turning circle (m)18Approach/Departure(°)16/70Max. gradeability (%)60Appearance dimensions (mm)12000×2500×3450Wheel base (mm)4600+1350Overhang(front/rear)1500/725Track width (mm) (front/rear)2022/2041EngineCNHTC Engine,1WD615.47,371hp E-IIRated output power309kwTorque(N.m r. p. m)1820/1100-1500Displacement(L)9.726Fuel tank capacity (L)400LTyre:315/80R22.5 10+1pcClutchφ430 diaphragm springGearboxTransmissionHW19710, 10 forward&2 reverse ManualFront axleHF9Drive axleHC16 ratio 4.8SteeringZF8118 (left-hand drive)BrakeService brakeWith dual-circuit compressed air brakePark brakePower spring brake acting on front & rear wheelAuxiliary brakeEngine exhaust valve brakeCabHW76 Cab with Single sleeper A/CWith Wind scooper and air guide sleeveBattery165AHCargo Carriage Internal Dimensions7200x2400x600(LxWxH)mmSteel thickness of Carriage:Floor: 3mm, Side:1.5mmCrane12tons straight arm craneDelivery date40 working days after receiving the down payment.
