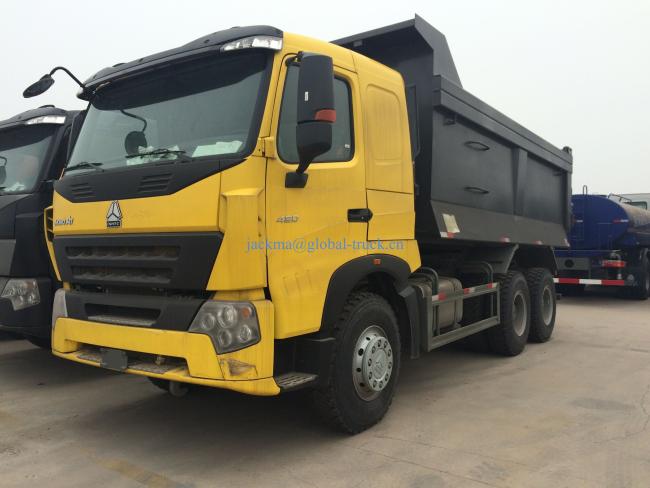

Sinotruk HOWO Nx Tx Used New Manufacturer Weichai 10 Wheel 6X4 Dump Truck
Low Price Sinotruk HOWO Nx Tx Used New Manufacturer Weichai 10 Wheel 6X4 dump truck
A modern heavy-duty tipper, the HOWO 7 6×4 combines high payload capacity with proven Chinese engineering. Powered by Euro II/III-compliant Weichai engines delivering 336–420 hp, it can haul up to 25 000 kg while maintaining reliability on construction and mining sites. Its robust chassis—with a 3600 + 1350 mm wheelbase and HF9/HC16 axles—provides stability under heavy loads, while the 8 mm-bottom/6 mm-side steel cargo body resists abrasion. The A7-series low-floor cab features sleeper options, full instrumentation, and air-suspension seats for driver comfort during long hauls.
| SINOTRUK HOWO Dump Truck | |
| Chassis Model | ZZ3257N3847B1 (Left/ Right Hand Driving Type Optional) |
| Driving type | 4X2 6x4 8X4 4X4 6X6 8X8 |
| Engine | Model: WD615.47, Euro 2, 371 HP 6-cylinder in-line with water cooling, turbo-charging and intercooling Displacement: 9.726 L 371HP / 340HP / 340HP / 380HP / 400HP / 430HP, Euro II / V |
| Clutch | Single-plate dry diaphragm spring clutch,diameter430mm,hydraulically operating with air assistance |
| Gearbox | SINOTRUK BRAND, manual operation, HW19710, 10 forward and 2 reverse, with Power Take-Off (PTO) |
| Front Axles | VGD95 9500kg with drum brake system |
| Rear Axles | HC16, 2X16000kg, double stage reduction (central+ hub), cast axle housing, ratio: 5.73 |
| Suspension | Front suspension: 10 pcs leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer |
| Rear suspension: 12 pcs leaf springs with bogie spring and stabilizer | |
| Steering System | famous brand power steering, model ZF8118 , hydraulic steering with power assistance |
| Braking System |
Front drum rear drum brake, four-circuit protection valve Service brake: dual circuit compressed air brake Parking Brake(emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake (optional): engine exhaust brake(EVB), antilock brake system (ABS), automatic brake gap adjustment arms |
| Tires | 12.00R20 (12.00-20, 315/80R22.5 optional), with one spare tyre |
| Fuel Tank Volume (L) | 300 |
| Dead Weight | 12020/8630 |
| Gross Vehicle Weight (kg) | 25000 |
| Rated Loading Weight (kg) | 12850; 12640 optional |
| Overall Dimension (LxWxH) (mm) |
8650x2550x3500 |
| Wheelbase (mm) | 3800+1350 |
| Min.Ground Clearance (mm) | 314 |
| Approach/Depart Angle(°) | 19/ (27/65) |
| Gradeability (%) | ≥50 |
| Min. Turning Diameter (m) | 15 |
| Cargo Body Size (LxWxH) (mm) | 5600x2300x1500 option |
| Cargo Body Volume (m3) | 19 option |
