Factory Direct Sell Used / New HOWO Dump Truck 6*4 Sinotruk 340HP/380HP/400HP Mini Tipper Truck
Price:
NEGOTIABLE
MOQ:
1 pc
Delivery Time:
40 worker days
Brand:
howo
Product Description

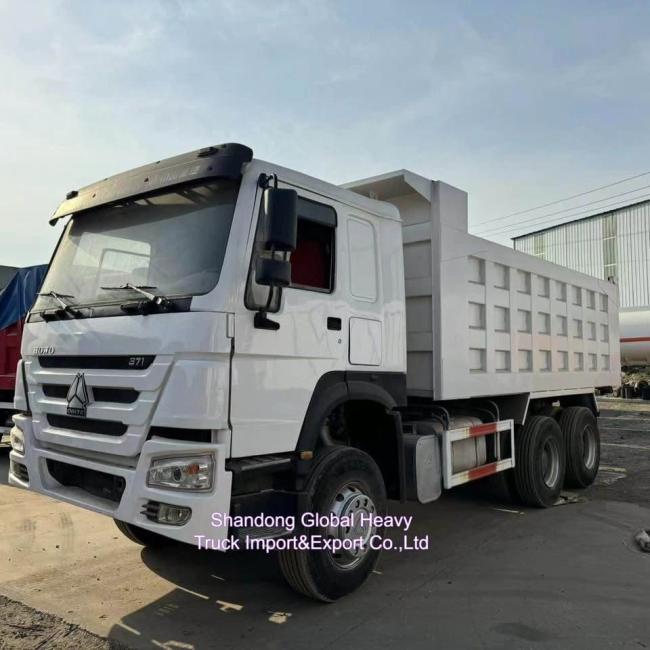

Factory Direct Sell Used /New HOWO Dump Truck 6*4 Sinotruk 340HP/380HP/400HP Mini Tipper Truck
PROMOTION-----SINOTRUK HOWO 6x4 10 wheels Dump Truck Loading 35 tons
HOWO truck which adopts the international key advanced technology of heavy duty truck, is a product for the Chinese market and international markets, it is researched and developed by sinotruk in line with international technical standards, sinotruk own its independent brand and independent intellectual property right, it is a new generation high end, advanced and matured heavy duty truck.
| Model | ZZ3257N3447A1 Driving type: 6*4 left hand driving | |||||
| Engine | Make: SINOTRUK | |||||
| Diesel 4-stroke direct injection diesel engine | ||||||
| Engine model: WD615.69,/WD615.47 Euro II emission standard | ||||||
| 6-cylinder in-line with water cooling, turbo-charging and intercooling | ||||||
| Maximum output: 336 hp (247 Kw) at 2200 rpm /371hp | ||||||
| Maximum torque: 1350 Nm at 1300-1600 rpm | ||||||
| Number of cylinder: 6 | ||||||
| Displacement: 9.726 L | ||||||
| Bore: 126 mm | ||||||
| Stroke: 130 mm | ||||||
| Specific fuel consumption: 195 g/kWh | ||||||
| Engine oil filling quantity: 19 l | ||||||
| Cooling system filling quantity (long-term filling): 40 l | ||||||
| Thermostat with 71ºC opening begin | ||||||
| Twin cylinder air compressor | ||||||
| Rigid fan | ||||||
| Transmission | HW19710, 10 forwards and 2 reverse | |||||
| Ratio: 14.28 10.62 7.87 5.87 4.375 3.26 2.43 1.8 1.34 1 13.91(R1) 3(R2) | ||||||
| Propeller Shaft | Double universal joint propeller shaft with gear-shaped coupling flange | |||||
| Front Axle | HF9, Steering with doubleT-cross section beam | |||||
| Rear Axle | HC16, Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles . | |||||
| Ratio:5.73 Option: 6.72 | ||||||
| Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members | |||||
| Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer | ||||||
| Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer | ||||||
| Aluminium fuel tank: 300 L capacity with locking fuel cap, fitted to the off side of the chassis | ||||||
| Steering | Germany technology power steering, modol 8118, hydraulic steering with power assitance | |||||
| Brakes | Service brake: dual circuit compressed air brake | |||||
| Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels | ||||||
| Auxiliary brake: engine exhaust brake | ||||||
| ABS control system: for option | ||||||
| Wheels & Tyres | Rims: 8.5-20, 10 hole-steel | |||||
| Tyres: 12.00R20, option: 12.00R22.5 Nos: 10+1(spare) | ||||||
| Driver's Cab | HW76, HOWO long cab, with two seats, one bed, 2-arm windscreen wiper system with three speeds, damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn,air conditioner , with transverse stabilizer,with 4-point support fully floating suspension + shock absorber | |||||
| Electrics | Operating voltage: 24 V, negative grounded | |||||
| Starter: 24 V, 5.4 Kw | ||||||
| Alternator: 3-phase, 28 V, 1500 W | ||||||
| Batteries: 2 x 12 V, 165 Ah | ||||||
| Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light | ||||||
| Instrument Panel | Active check central controllor with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators | |||||
| of compressed air pressure, coolant temperature, engine oil pressure and battery charging | ||||||
| Dimensions mm | Wheel base | 3625+1350 | ||||
| Front wheel track | 2022 | |||||
| Rear wheel track | 1830 | |||||
| Front overhang | 1500 | |||||
| Rear overhang | 1670 | |||||
| Approach angle (0) | 19 | |||||
| Departure angle (0) | 26 | |||||
| Overall length | 8145 | |||||
| Overall width | 2496 | |||||
| Overall height | 3386 | |||||
| Dimension of the rear dump body | 5400*2300*1400 | |||||
| Type of hoist system | Underbody "T" shape | |||||
| Weight kg | Dead weight | 12420 | ||||
| Gross vehicle weight | 41000 | |||||
| Front axle loading capacity | 9000 | |||||
| Rear axle loading capacity | 2*16000 | |||||
| Performance | Maximum driving speed (km/h) | 75 | ||||
| Maximum gradeability (%) | 32 | |||||
| Minimum ground clearance (mm) | 298 | |||||
| Fuel consumption (l/100 km) | 3 | |||||
