Most Popular Shacman 6X4 10 Wheeler F3000 Tipper Dump Truck for Construction Transportation

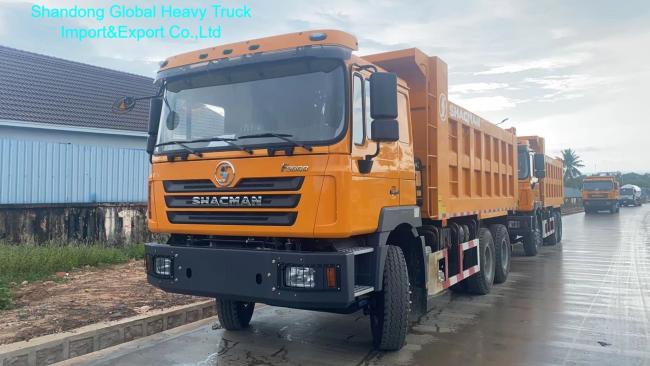

SHACMAN F3000 6×4 Dump Truck

Product Overview

The SHACMAN F3000 6×4 Dump Truck is a reliable and durable heavy-duty truck designed for construction, mining, and infrastructure projects. In Mozambique, it is widely used for road building, quarry transport, and bulk material delivery. With a strong 400HP engine, reinforced chassis, and large payload capacity, it ensures efficiency and performance even under tough road conditions.

Technical Specifications

• Brand: SHACMAN

• Model: F3000 6×4 Dump Truck

• Drive Type: 6×4 (Left-Hand Drive, Right-Hand Drive optional)

• Engine: Weichai WP10.400E32, 400 HP, Euro II/III emission standard

• Horsepower Range: 336–400 HP

• Displacement: 9.7 L

• Transmission: Fast 10/12-speed manual gearbox

• Clutch: Single dry plate, 430 mm diameter

• Axle Configuration:

  • Front axle: 7.5T

  • Rear axle: 16T double reduction

  • Axle ratio: 4.77 / 5.73 optional

• Suspension: Multi-leaf spring, reinforced (front 9, rear 12)

• Frame: Double-layer high-strength steel 8+8+8 mm

• Brakes: Dual-circuit air brake with ABS optional

• Steering: Hydraulic power steering (ZF technology)

• Fuel Tank: 400 L aluminum alloy

Dump Body

• Type: U-shape or square box

• Size: 5600–5800 × 2300 × 1500 mm (customizable)

• Material: High-strength wear-resistant steel (Q345 / NM450)

• Thickness: Bottom 8–10 mm, side 6–8 mm

• Payload Capacity: 25–30 tons

• Hydraulic System: HYVA lifting cylinder, fast unloading

Dimensions & Weight

• Overall Dimensions (L×W×H): 8614 × 2490 × 3450 mm

• Wheelbase: 3775 + 1400 mm

• Curb Weight: 12,500–13,000 kg

• GVW (Gross Vehicle Weight): 25,000–30,000 kg

• Max Speed: 80–90 km/h

Key Applications in Mozambique

• Road construction projects (transporting sand, asphalt, and gravel)

• Quarry and mining transport (granite, limestone, coal, and heavy stone)

• Port and logistics operations in Maputo, Beira, and Nacala

• Infrastructure and municipal projects (earthmoving, waste transport, landfilling)

Advantages

• High load capacity, suitable for bulk cargo and mining operations

• Reinforced frame for rough and unpaved Mozambican roads

• Powerful engine with excellent climbing performance

• Reliable HYVA hydraulic system ensures fast and safe unloading

• Spare parts and service support available in Southern Africa

FAQ

Q1: Is the truck suitable for Mozambican road conditions?
Yes. The reinforced chassis and suspension are designed to handle rough, unpaved, and hilly roads.

Q2: What is the fuel consumption?
Average consumption is 35–38 L per 100 km, depending on load and terrain.

Q3: Can the dump body be customized?
Yes. Box size, thickness, and steel grade can be customized according to the material being transported.

Q4: Are spare parts available in Mozambique?
Yes. Spare parts and after-sales support can be arranged through local partners and regional warehouses.

Q5: What is the delivery time?
Typically 30–40 days after confirming the order.

Q6: What warranty is provided?
Standard warranty: 1 year or 100,000 km with full technical support.
