SANY SYL956H5 5 Ton Wheel Loader with 3m3 Bucket Capacity and 164 kW Diesel Engine
Price:
Negotiation
MOQ:
1 unit
Delivery Time:
30-45 work days
Brand:
SANY
Product Description
SANY SYL956H5 - 5 Ton Wheel Loader for Construction & Mining
Product Overview
The SANY SYL956H5 is a 5-ton wheel loader built for heavy-duty construction and mining applications. With a rated payload of 5,000 kg and a standard bucket capacity of 3.0 m³, this machine delivers robust performance, fast cycle times, and excellent fuel efficiency. Its 6-ton platform frame and heavy-duty oscillating axle provide the strength and stability needed for harsh working conditions.
Powered by a 164 kW diesel engine (Tier 3 / China III), the SYL956H5 combines high breakout force with low operating costs. SANY is one of the world's largest construction equipment manufacturers, known for innovation and reliability.
Made in China - New units in stock, ready for shipment.
Key Specifications
| Parameter | Details |
|---|---|
| Model | SANY SYL956H5 |
| Condition | Brand new |
| Rated Load | 5,000 kg (5 tons) |
| Bucket Capacity | 3.0 m³ standard (2.7-4.0 m³ optional) |
| Operating Weight | 17,100 - 17,200 kg |
| Engine Power | 164 kW (approx. 220 HP) |
| Breakout Force | High - heavy-duty design |
| Max Dumping Height | 3,118 mm |
| Dumping Distance | 1,140 mm |
| Max Travel Speed | 40 km/h |
| Turning Radius | 5,850 mm |
| Wheelbase | 3,200 mm |
| Fuel Tank | 300 L |
| Emission Standard | Tier 3 / China III |
| Warranty | 12 months / 2,000 hours |
Key Features
- 5-Ton Payload with 6-Ton Class Strength - The SYL956H5 uses a 6-ton platform frame and heavy-duty oscillating axle, delivering durability and performance that rivals larger loaders.
- Advanced Hydraulic System - High-pressure load-sensitive variable hydraulics distribute flow on demand, reducing energy loss by up to 10% while providing higher breakout and lifting force.
- Fast Cycle Times - Faster travel speeds, quicker boom lifting, and optimized cycle times boost daily productivity.
- Superior Operator Comfort - Spacious, low-noise cab (78 dB) with ISRI suspension seat, Parker fingertip controls, FNR dual-position shifting, TFT LCD display, keyless auto-start, and FOPS/ROPS certification.

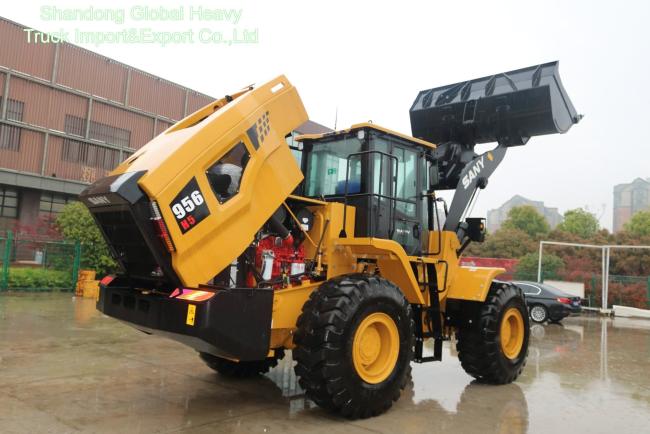

- Easy Maintenance - Flip-up engine hood, centralized grease points, openable rear window for radiator cleaning, and full hydraulic braking system (no brake fluid to add).
- Smart Management - AI-enabled system for one-click service requests, fault diagnosis, and fleet networking.
Optional Attachments
- Rock bucket, light material bucket, 4-in-1 bucket
- Pallet forks, log grapple, high-dump bucket
- Quick coupler system, snowplow, sweeper
Applications
- Mining - ore, overburden, coal
- Construction - sand, gravel, aggregate, earthmoving
- Quarries - rock and aggregate loading
- Ports - bulk cargo handling
- Road building - base material loading
- Waste management - recycling materials
FAQ - Frequently Asked Questions
Q1: What engine does the SYL956H5 use?
A: It uses a high-efficiency 164 kW diesel engine. For customers preferring a specific brand, we also offer the SW956K1 variant with a Weichai engine upon request.
Q2: Is it really a 5-ton loader?
A: Yes, rated load is 5,000 kg. However, its 6-ton platform frame gives it strength comparable to larger machines.
Q3: What is the price?
A: FOB China main port: approximately USD 40,000 - 55,000 depending on configuration. Volume discounts available.
Q4: Can I get right-hand drive (RHD)?
A: Standard is left-hand drive. RHD is available on request with extended lead time.
Q5: What emission standards are available?
A: Standard is Tier 3 / China III. Tier 2 and higher (Euro V) available on request.
Q6: What is fuel consumption?
A: Approximately 12-16 L/hour under normal working conditions.
Q7: Do you provide spare parts?
A: Yes. We stock genuine SANY and Weichai parts. Bulk orders include a starter parts kit.
Q8: How is it shipped?
A: In a 40ft flat rack container, partially disassembled. Transit 25-45 days.
Q9: What documents for customs?
A: Invoice, packing list, BL, Certificate of Origin, export declaration, engine/chassis numbers, emission statement.
Q10: What warranty?
A: 12 months or 2,000 hours on engine, transmission, hydraulics, and axles.
Q11: Can I inspect before buying?
A: Yes. We provide photos, videos, and live walkaround. You can also visit our facility.
Q12: Minimum order quantity?
A: 1 unit. Volume discounts for 2, 3, 5+ units.
Q13: Lead time?
A: Stock unit 7-10 days; custom config 20-30 days; sea freight 25-45 days.
Q14: Suitable for rock?
A: Yes, with optional rock bucket. The machine's reinforced structure handles heavy rock well.
Q15: Can you paint my company colors?
A: Yes, for orders of 3+ units.
Order Process
- Select configuration - bucket, tires, attachments, steering, emission standard.
- Request photos/videos.
- Proforma invoice - 30% deposit.
- Final inspection via video - pay 70% balance.
- Shipment within 7-30 days.
- Delivery 25-45 days to your port.
