Mini Freight Forwarding Small Cargo Truck , Comercial Cargo Truck 102km/H Speed

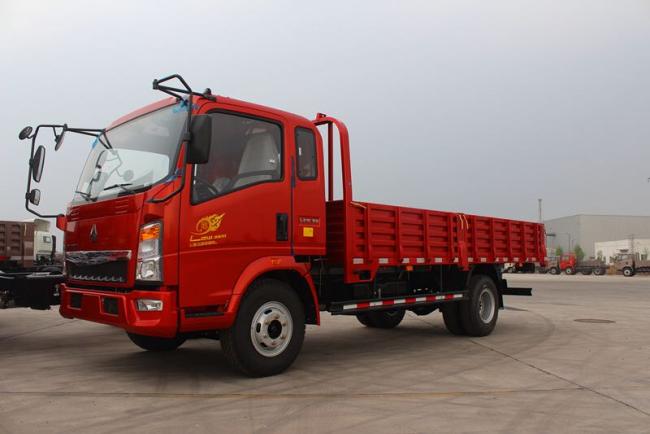

Sinotruk HOWO 4x2 266 HP Mini Freight Forwarding cargo truck with HW76 cab.
Description:
Sinotruk HOWO 4x2 266 HP Mini heavy cargo truck adopt WD615 series of engine,have a good power and economy.Adopting full hydraulic transmission, it can bring the power of engine into
full play amply. The fuel consumption 20-40L/100km.And with HW76 cab,single sleeper and have air conditioner.Adjust the output torque automatically according to loads change,It is suitable for in normal roads and tough roads, to transport kinds of bulk cargo.
Packing:
Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer, be suitable for long distance transportation of ocean and inland.The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
Competitive Advantage:
1. Continuously variable transmission, full hydraulic steering system steady and reliable
2. 266 HP driver power,have a good climed the slope
3. Center-point frame articulated and small turning radius makes it convenient to
work in confined places.
4. Single-line air-assisted brake system.
5. The rear axle can swing around the center hanger frame, improved the going-through capability .
6. Perfectly designed to enable the machine have super lifting force and automatic leveling at high position.
| Truck Model | ZZ1167M4617C | ||||
| Dimension(Lx W xH)(unloaded)(mm) | 8400×2496×3048 mm | ||||
| Cargo body size (L*W*H, mm)(mm) | 5600×2300×600mm | ||||
|
Approaching angle/Departure angle(°) (°) |
16/15 | ||||
| Overhang(front/rear) (mm) | 1500/2200 | ||||
| Wheel base (mm) | 4600 | ||||
| Max speed(km/h) | 102 | ||||
| Curb weight(kg) | 8000 | ||||
| Fuel tanker capacity (L) | 400 | ||||
| Fuel consumption(L/km) | 20-40 L/100 km | ||||
| Clutch |
Reinforced diaphragm clutch, diameter 430mm |
||||
|
Engine Model
|
Fuel type | Diesel | |||
| Horse Power, max(kw/rpm) | 266HP | ||||
| Emission | EURO II | ||||
| Model | WD615.62 | ||||
| Transmission | Model | HW15710 10 forwards and 2 reverse | |||
|
Brake system
|
Service brake | Dual circuit compressed air brake | |||
| Parking brake |
spring energy, compressed air operating on rear wheels
|
||||
| Auxiliary brake | Engine exhaust brake | ||||
|
Steering system
|
Model | ZF8098 hydraulic steering with power assistance | |||
| Front axle | HF7 | ||||
| Rear axle | ST16 | ||||
| Color | According to the customer | ||||
| Tyre | 12.00R20 | ||||
|
Electrical system
|
Battery | 2X12V/165Ah | |||
| Alternator | 28V-1500kw | ||||
| Starter | 7.5Kw/24V | ||||
| Cab | HW76(single sleeper,with conditioner) | ||||
