High Speed Commercial Dump Trucks Heavy Duty With German ZF8118 Steering Gear Box

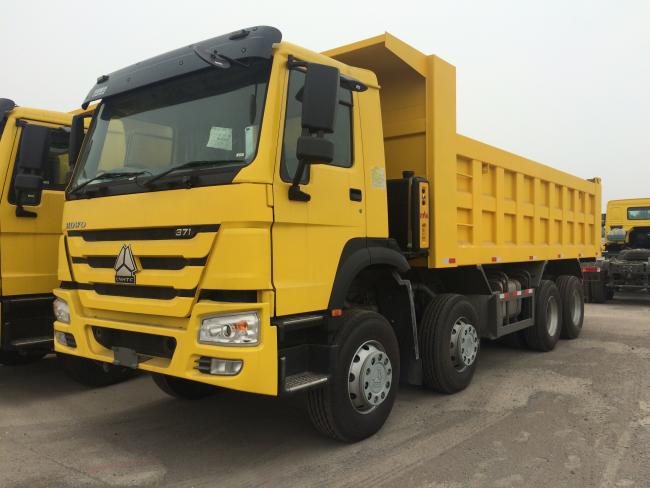

ZZ3317N3061W HOWO A7 8×4 Dump truck with German ZF8118 steering gear box
Description:
HOWO A7 Dump truck adopt the 6-cylinder in line, 4-stroke, water cooled, turbo-charged inter-cooled,direct injection engine.Have good power economy.And the main parts adopt international well-known brands,for example German ZF8118 steering,full hydraulic transmission,German WABCO brake control system,HOWO series of transmission,BEHR water tanker,the cab adopt new A7-W One sleeper with air conditioner,safety and reliable.
And the many color choice, and the best cost and performance, deeply favored by oversea customers.
Packing:
Competitive Advantage:
1. Full hydraulic transmission, can bring the power of engine into full play amply.
2. Adjust the output torque automatically, can achieve continuously variable transmission.
3. Small turning radius,convenient to work in confined places.
4. Single-line air-assisted brake system,safe and reliable.
5. The price is competitive.
6. Excellent and high-quality control
7. Long lasting working life time.
8. Sufficient storage.
| Truck Model | ZZ3317N3061W | |||
| Truck Brand | HOWO A7 | |||
| Dimension | 9610×2496×3490mm | |||
| Driving Type | Left Hand Driving optional | |||
| Cargo body size | 6500×2300×1250mm | |||
| Thickness | bottom:8mm,side:6mm | |||
| Lifting Type | Under body Hydraulic Lifting | |||
| Approaching angle/Departure angle(°) | 20/27 | |||
| Overhang(front/rear) | 1540/1745mm | |||
| Wheel base | 1950+3025+1350mm | |||
| Curb weight(kg) | 15890 | |||
| Gross vehicle weight(kg) | 31000 | |||
| Max speed(km/h)(km/h) | 78 | |||
|
Engine Model (Steyr technology, made in China) |
WD615.69 | |||
| Fuel type | Diesel | |||
| Horse Power, max(kw/rpm) | 336HP | |||
| Emission | EURO II | |||
| Fuel tanker capacity (L) | 400 | |||
| Transmission Model | HW19710 10 forwards and 2 reverse | |||
| Steering Model | ZF8118 | |||
| Clutch | Diaphragm spring ;φ430 | |||
| Service brake | Dual circuit compressed air brake | |||
| Parking brake | spring energy, compressed air operating on rear wheels | |||
| Auxiliary brake | The engine exhaust brake (EVB) | |||
| Front axle | HF9 | |||
| Rear axle | HC16 | |||
| Color | according to the customer | |||
| Cab | A7-W One sleeper with air conditioner | |||
| Tyre | 12.00R20 12+1 (spare) | |||
| Electrical system | Battery | 2X12V/180Ah | ||
| Alternator | 28V-1500kw | |||
| Starter | 7.5Kw/24V | |||
