White 41-50 Ton Capacity Heavy Cargo Truck Diesel Fuel Type Optional Driving

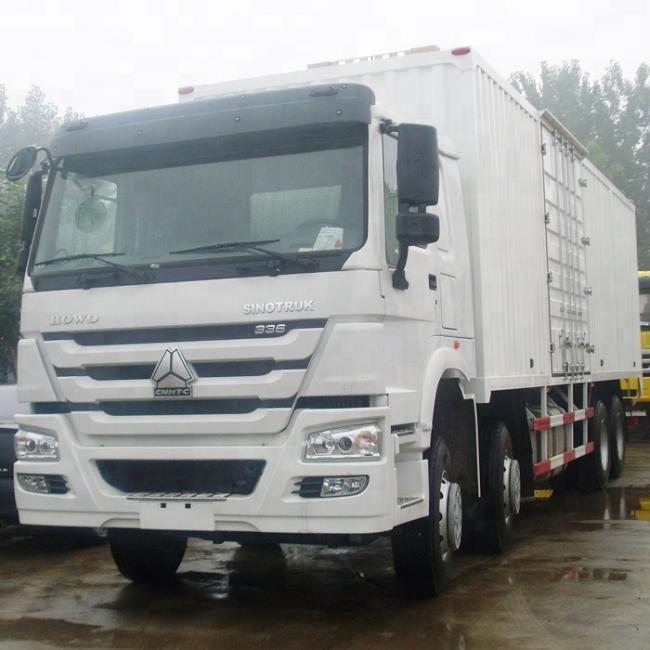

White color HOWO EURO II 336 HP Van cargo truck with ZF8118 Steering Gear Box
Description:
White color HOWO EURO II 336 HP Van cargo truck with 41-50T Capacity cargo truck.
Adopt WD615 series of 6-cylinder in line, 4-stroke, water cooled, turbo-charged inter-cooled,direct injection engine.Have good power economy.
And the brake system have huge advantages.Service brake:dual circuit compressed air brake
Parking brake (emergency brake):spring energy,compressed air operating on rear wheels
Auxiliary brake:engine exhaust valve brake., and it can achieve continuously variable transmission.Rich experience and well after-sale service.
Packing:
We have professional forwarding partners.
Competitive Advantage:
1. We will reply you for your inquiry in 24 hours.
2. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
3. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.And we have rich packing experience and well service.
4. Fast production period, and quick arrangement of delivery.
5. Shipping:Ro-Ro ship or bulk ship or according to customer requiring.
Description:
| Model Number: | ZZ1317M3861V | |
| Engine Model: | WD615.69,336hp | |
| Emission Standard: | Euro 2 | |
| Drive Wheel: | 8x4 | |
| Capacity (Load): | 41 - 50t | |
| Gearbox: | HW19710,10 speed | |
| Fuel Type: | Diesel | |
| Permissible gross vehicle weight(kg) | 31000 | |
| Rating payload(kg) | 17800 | |
|
Dimension (Length*Width*Height)(mm) |
11182X2496X4735
|
|
|
Carriage inner dimension (Length*Width*Height)(mm) |
8480X2326X800
|
|
| Wheel base(mm) | 1800+3800+1350 | |
| Wheel track(Berfor/After)(mm) | 2022(2041)/1830 | |
| Maximum driving speed(km/h) | 102 | |
| Tyre | 12.00-20 | |
| Approach angle/departure angle(o) | 16/20 | |
| Steering | ZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving) | |
| Brake |
Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
|
| Electrics |
Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
|
