4 Cylinder Agriculture Farm Machinery Water Cooled And 4-Stroke Engine 40hp 4wd LD4L23
LD4L23 4-Cylinder , Water Cooled and 4-stroke engine 40hp 4wd Agriculture Farm Machinery
Description:
Standard equipment:
4×4 Wheel Drive, 3- point Linkage, Rear PTO 540/760. Color follow your need.
Cabin,Canopy, Air-brake, Creeper- gear, Hydraulic value, Draw bar, Dual-stage clutch,
Multi- Way Value,8+8 Shuttle Gear, Rear PTO 540/1000, Combination Instrument.etc.

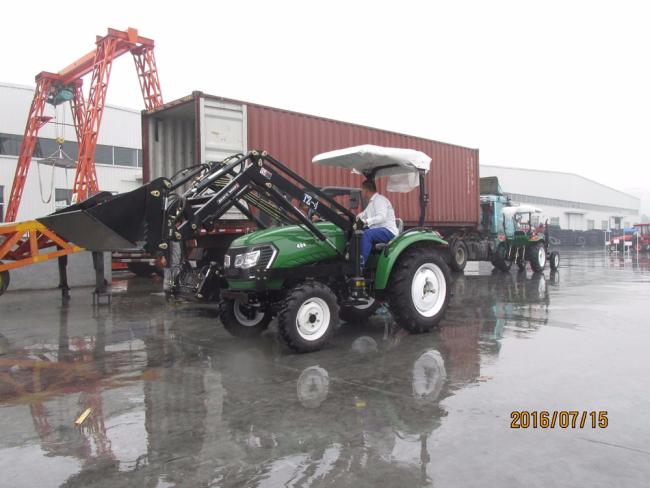

This model tractor can match all kinds of implements, such as front end loader with standard buckets, 4 in 1 bucket, backhoe, forks, trailer, mower, hedge cutter, snow blower, rotary tiller, disc plow, disc harrow, wood chipper, spreader, post hole digger, transport box and so on, we can also provide other implements according to your requirements.

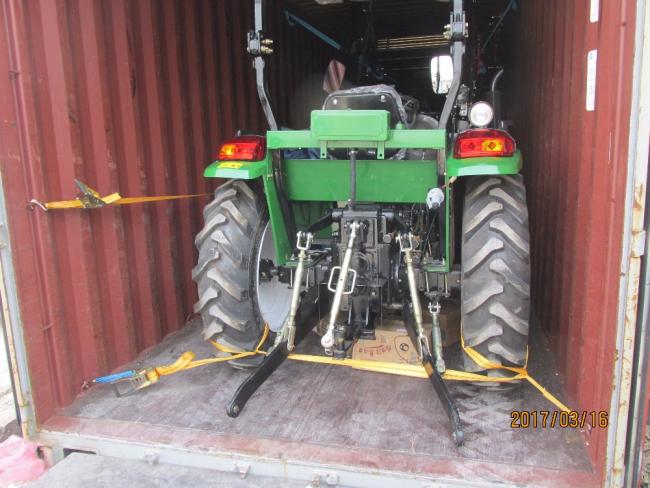

Packing:
Nude Pack.The packing of the products be suitable for long distance transportation of ocean and inland.Our take measures to against moisture,shocks and rust according to the special needs of the commodity.
Competitive Advantage:
To ensure exceptional customer satisfaction, we maintain a large inventory of parts. Our highly trained, experienced service technicians are available to dealers to help keep up with proper maintenance and warranty service procedures.
We have one year warranty,During Warranty, if there is any part broken because of quality problem(except easy-damaged parts), send us detailed pictures, then we will send good/ new parts for your replacements.
Detailed Specification:
Model | CP404 |
| |
| Model | LD4L23 | |
Type | Vertical,4-Cylinder,Water Cooled and 4-stroke | ||
Rated Power(kw) | 29.4 | ||
Rated speed (r/min) | 2400 | ||
Fuel | Diesel | ||
| Length (to front ballast) | 2900 | |
Width | 1560 | ||
Height (to the exhaust vent) | 2200 | ||
Tread Front Wheel | 1500 | ||
Rear Wheel | 1200 | ||
Structure weight (kg) | 1300 |
| |
Tyre | Front Wheel | 6.00-16/6.5-16 | |
Rear Wheel | 9.5-24/11.2-24 | ||
Clutch | Single-stage or Dual-stage clutch |
| |
Steering | Hydraulic steering |
| |
Transmission Type | 8+2 gear shift/ 8+8 shuttle gear |
| |
Hydraulic system | 3 point-linkage |
| |
Suspension Type | Type and Rev | Semi-independent Type 540/760 r/m or 540/1000 | |
PTO | Spline Size | I35 Rectangle Spline with 6 | |
