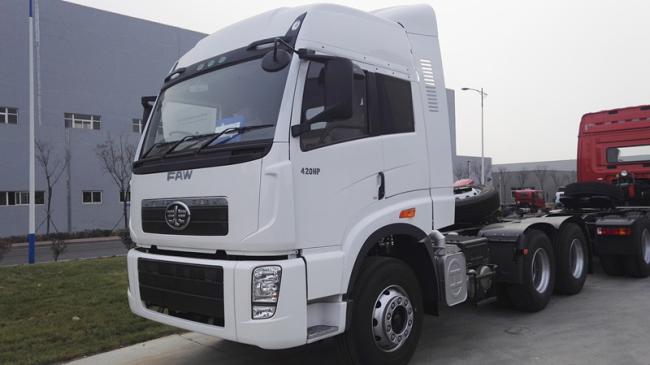

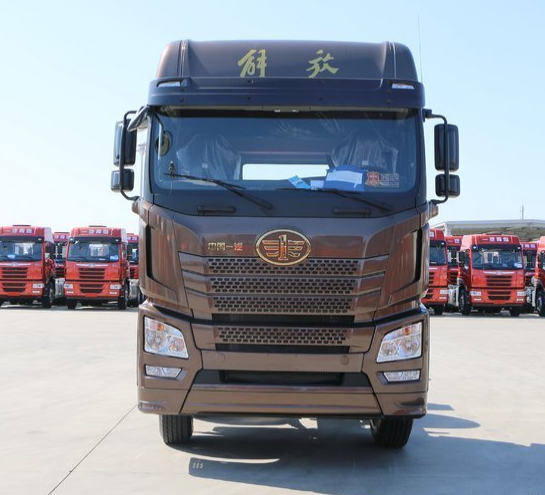

FAW JH6 420 Hp 6x4 10 Wheels Tractor Trailer Truck Head With ETON Transmission And JH06 Cab
FAW JIEFANG JH6 25tons Gross vehicle weight 420 hp 6x4 tractor truck head
Description:
Apply to long distance and high efficiency transportation.
High safety,high reliability,high comfort,low curb weight ,low fuel consumption,low maintenance cost.
FAWDE/WEICHAI engine,FAW/FAST/EATON/ZF gearbox,FAW/PX axle,high reliability.
European standard cabin,big living room design concept.
Competitive Advantage:
1. The best quality standard guaranteed
2. Product upgrading and expansion of species
3. Good quality with competitive prices.
5. The price is competitive.
6. Excellent and high-quality control
7. Long lasting working life time.
Product Specification:
| Mass | Curb Weight of Chassis (kg) | 8870 | Dimensions | Overall dimensions (mm) | Length (mm) | 7015 | |||||||||||||||||
| Axle load distribution (kg) | Front | 4650 | Width (mm) | 2495 | |||||||||||||||||||
| Rear | 4220 | Height mm | 3910 | ||||||||||||||||||||
| Curb weight (kg) | -- | Wheel Base(mm) | 3300+1350 | ||||||||||||||||||||
| Axle Load distribution(kg) | Front | -- | Wheel Track(mm) | Front | 2056 | ||||||||||||||||||
| Rear | -- | Rear | 1830 | ||||||||||||||||||||
| Gross vehicle weight (kg) | 25000 | Min. Ground Clearance(under rear axle) (mm) | 314 | ||||||||||||||||||||
| MAX Axle Load distribution (kg) | Front | 6500 | Approach Angle (°) | 22 | |||||||||||||||||||
| Rear | 2*13000 | Departure Angle(°) | 55 | ||||||||||||||||||||
| Max. drawing Capacity (kg) | 40100 | Front Overhang (mm) | 1495 | ||||||||||||||||||||
| Total weight with trailer (kg) | 49000 | Rear Overhang (mm) | 770 | ||||||||||||||||||||
| Max. Load Capacity(kg) | 16100 | Distance from tractor seat to ground (loaded) | 1261 | ||||||||||||||||||||
| Performances | Min. Steering Diameter (m) | 15.6 | Tractor seat pin D. | Φ50(mm) | |||||||||||||||||||
| Max. Speed (km/h) | 118 | Engine | Model | WP12.460N | |||||||||||||||||||
| Max. Grade ability (%) | 38 | Displacement (L) | 11.6 | ||||||||||||||||||||
| Parking Brake Grade Angle (%) | 12 | Max. Output Power kw/rpm | 338/1900 | ||||||||||||||||||||
| Direct Shift Min. Stable Speed (km/h) | 35 | Max. Torque Nm/(r/min) | 2110/1000~1400 | ||||||||||||||||||||
| Direct Shift Accelerate Time (s) | 30 | ||||||||||||||||||||||
| (40-70km/h) | Rated fuel consumption g/kw·h | ||||||||||||||||||||||
| Sliding Distance(from 50km/h) (m) | ≥800 | Min. Fuel Consumption g/kw·h | |||||||||||||||||||||
| Braking Distance (from 30km/h) (m) | ≤10 | Cab | Type | JH06 Cab on engine, all metal closed, integral front tilting angle 44º | |||||||||||||||||||
| Fuel Consumption (l/100km) | 38 | ||||||||||||||||||||||
| Fuel Tank Capacity (L) | 800 | Seats | 2 | ||||||||||||||||||||
| Frame | Type |
Side rails, punching and riveted construction |
Clutch | Type | Dry type, single plate, diaphragm spring clutch, hydraulic controlled and air auxiliary power supply | ||||||||||||||||||
| Main Rail section | 300×80×8(mm) | ||||||||||||||||||||||
| Auxiliary Rail Section | Driven Plate Dia. | φ430(mm) | |||||||||||||||||||||
| Transmission | Model | EATON ETO-20113 | Power Steering | Model | Recycle ball type, Hydraulic power steering | ||||||||||||||||||
| Forward Shifts Ratio |
iDL=13.94,i1=9.63, i2=7.60,i3=6.07, i4=4.85,i5=3.87, i6=3.06,i7=2.44,i8=1.95, i9=1.59,i10=1.25, i11=1.00,i12=0.80 |
Ratio | 22.2:1,limit: 26.2:1 | ||||||||||||||||||||
| Pump Max. pressure(kPa) | 13000 | ||||||||||||||||||||||
| Reverse Shift Ratio |
iDPR=18.86, RL=7.58,RH=3.11 |
||||||||||||||||||||||
| Wheel Alignments | Wheel Camber | 1° | Brake System | Rated working air | 784 | ||||||||||||||||||
| pressure (kPa) | |||||||||||||||||||||||
| Kingpin sidewise inclination | 6° | Driving Brake | Double circuit air brake | ||||||||||||||||||||
| Kingpin extroversion | 1°46 | Parking Brake | Spring energy storage type | ||||||||||||||||||||
| Toe-in (measured onΦ648 diameter) | 0-2(mm) | Auxiliary Brake | Engine Brake / Exhaust Brake | ||||||||||||||||||||
| Rear Axle | Type | FAW Single Reduction 457 | Electrical System | Type | Single line, negative grounded | ||||||||||||||||||
| Reduction Ratio | 3.7 | Voltage | 24V | ||||||||||||||||||||
| Generator | 1500W | ||||||||||||||||||||||
| Differential lock | Inter-axle differential | Battery (V/Ah) | 2-12/150 | ||||||||||||||||||||
| Truck Body | Size (mm) | -- | Wheel | Rim | 9.00*22.5 | ||||||||||||||||||
| Tyre | Model | 315/80R22.5-20 | |||||||||||||||||||||
| Air pressure(kPa) | 770±10 | ||||||||||||||||||||||
