800L Fuel Tank 10W FAW Tractor Head Trailer Truck Model CA4250 11 Liter 420HP
Brand New 6X4 10W FAW Tractor Head Model CA4250 (11 Liter) 420HP
Representing FAW's 60 plus years of truck manufacturing experience, our J6P range of on-highway and vocational trucks incorporates the high levels of innovation, reliability, comfort and driveability that have made FAW an established name in the heavy truck industry for productive and cost effective operation. Offering world class comfort and styling combined with advanced fuel-efficient high horsepower engines, the J6P takes heavy truck engineering to a new level, providing optimum productivity at the lowest possible operating cost. Available in 4x2, 6x2 (mid-lift or tag axle), 6x4 and 8x4 configurations with advanced 4-valve head engines up to 500 horsepower, the J6P is a serious new contender on the global stage in the
premium truck segment.
| Overall Dimensions (mm) | Length | 7,050 |
| Width | 2,500 | |
| Height | 3,560 / 3,980 | |
| Total Curb Weight (kg) | 8,805 | |
| GVW (gross vehicle weight) (kg) | 25,000 | |
| Wheelbase (mm) | 3,450+1,350 | |
| Min. Turning Diameter (m) | 15 | |
| Engine | CA6DM2-46E51 |
| Transmission | CA12TAX210M |
| Driving Axle | Φ457 |
| Speed Ratio | 3.727 |
| Frame (mm) | 300x80x8 |
| Tires | 12R22.5 |
| Fuel Tank (L) | 800 |

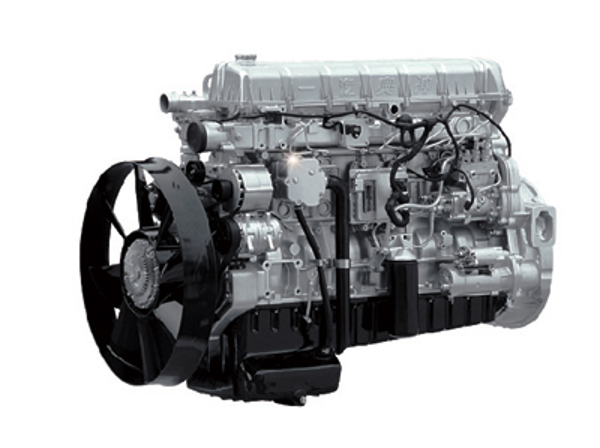

CA6DM Engine
FAW's big bore 11 liter CA6DM series electronically controlled direct injected engines are available in 350, 370, 390 and 420 horsepower ratings, with torque ratings from 1,550 to 1,900 N.m.
For a majority of heavy truck operations, the size and capabilities of our 11 liter engine offers the perfect balance of low end torque, high horsepower, fuel efficiency, weight and cost. Taking advantage of the latest developments in materials and components, CA6DM series engines deliver maximum productivity, reliability and performance in both on-highway and vocational operations. The integrated cylinder head features 4-valve technology and an overhead camshaft. A composite valve cover reduces weight and engine noise. The engine's sophisticated high pressure common rail fuel system and low friction design deliver excellent throttle response with low fuel consumption. With four available engine ratings, CA6DM engines can be precisely matched to customer requirements for greater efficiency.
Note: The information in this page was accurate at the date of publication, based on the latest product information available at that time. FAW reserves the right to make changes in equipment, specifications, and design without notice at any time. Some models shown may include optional equipment. Warranty terms and services may vary in certain countries.
