Fully Automatic PU PIR Sandwich Panel Production Line For 40-300 Mm Thickness And 950-1200 Mm Width

Price Negotiable

Price: $790000

MOQ: 1

Delivery Time: 150days

Brand: Greenson

Product Description

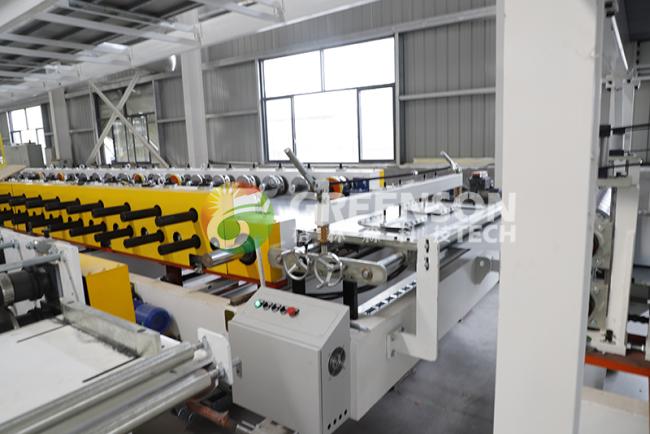

Manufacturer Sales Fully Automatic PU PIR Sandwich Panel Production Line For Cold Rooms

Product Overview

This advanced production line features a rational structure, complete functionality, and easy operation. Designed for manufacturing high-quality rock wool sandwich panels through a fully automated continuous process.

Production Process

Complete automated workflow: feeding, profiling, gluing, heating, trimming, grooving, and cutting
Precision low-speed metering pump with computer-controlled frequency regulation
Accurate dosing and stepless speed adjustment capabilities

Product Capabilities

Produces various flat and corrugated sheet types
Sandwich panels: thickness 40-300 mm, width 950-1200 mm
High-strength corrugated composite boards: thickness 40-300 mm, width 950-980 mm
Compatible with color steel plates, aluminum plates, stainless steel plates, and other sheet materials

Technical Specifications

Material Type	Color steel sheet; Galvanized sheet; Aluminum sheet
Material Thickness	0.3-0.8 mm
Material Width	≤1250 Mpa
Suitable Panel Length	2000-18000 mm
Suitable Panel Width	500-1200 mm
Suitable Panel Thickness	30-250 mm (excluding corrugation height)
Production Speed	3-15 m/min (Adjustable)
Valid Length of Double Belt Conveyor	12000-42000 mm
Work Pressure on Pouring Foam	150-200 Bar
Total Power	660 kW / 300 kW
Total Dimensions	130000 × 15000 × 6000 mm (Length × Width × Height)
