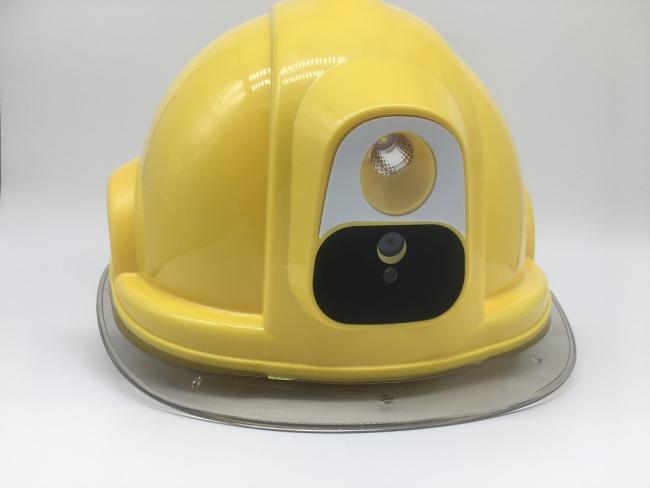

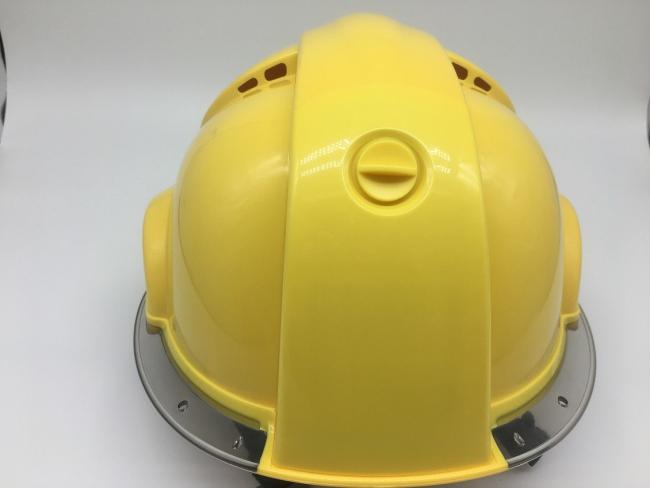

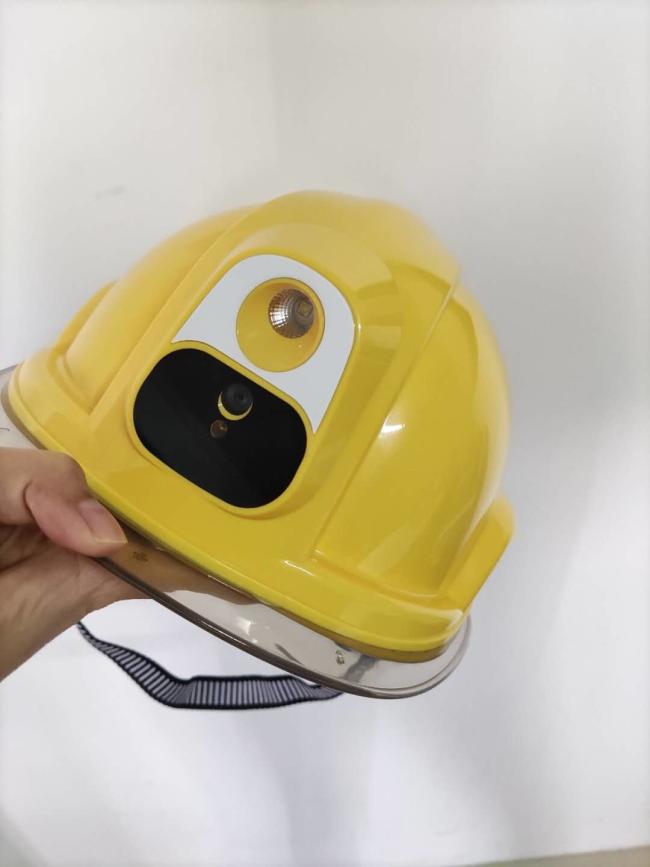

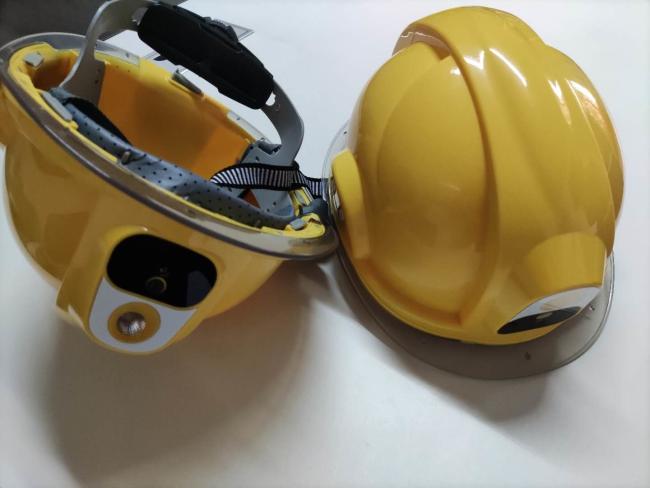

4G Safety Helmet built in Camera Lens for Construction Mining Worker
4G Safety Helmet built in Camera Lens for Construction Mining Worker
4G intelligent helmet adopts high-speed processor, integrated HD video, audio, 3G/4G and WiFi wireless communication module,GPS storage and alarm module; it can timely record the scene, collect evidence and standardize construction. And through 3G/4G, WiFi wireless network for real-time audio, video and information transmission, voice intercom tec., and coordinated the back-end function of the monitoring and dispatching command platform, to achieve remote dispatching and command functions for outdoor mobile individuals. It can be widely used in electric power, railway, mining, petroleum, construction and other industries.
Support 1080P/720P
Support H.264 encoding
Support 4G all net
Support two-way intercom
Support video live stream transation
Built in 32G storage,can customized made 128G
Support Beidou/GPS positioning
2meters drop test
| Technical parameters | ||
| Operation system | Android 7.0 | |
| Processor | MTK 6739 Quad-core ARM@Cortex-A53 MPCore 1.3GHz/512KB unified L2 cache | |
| SIM card | Yes | |
| Button/key | Power button,SOS,Video button,Laser button... | |
| Focus range | Optics 0.5 Meters----Infinity .Effective range of infrared camera 2-5 Meters | |
| Angle of camera | 140°wide angle | |
| Night vision | The human faces can be seen at 10 Meters in a totally black environment. | |
| Waterproof | IP67 | |
| Battery | Lithium battery 4200mAh | |
|
4G upload
|
Real time uploaded function | |
| Data of real time uploaded can be checked in the platform | ||
|
Video
|
Video coding resolution | 1080P/720P MKV Format |
| FPS | 1080P@30fps/720@30fps | |
| Video bitrate | 256kbps-8Mbps | |
|
Wireless connected
|
WiFi | Support 802.11b/g protocol,2.4GHZ |
| 3G/4G | FDD/TDD/WCDMA | |
| Beidou positioning | Built in Beidou positioning module,Support Google Map | |
| Bluetooth | BT4.0 | |
|
Other details
|
Weight | About 520G |
| Dimension | 289*233*150mm | |
- Our products warranty is 1 year, we provide 2 years warranty for our regular customers.
- We provide free repairing or replacement of products if the goods have any quality problem within the Warranty period.
- We provide durable maintenance and Tech support service.
- All items must be returned in their original condition, in order to qualify for a refund or exchange of goods.
- We will work with you to solve any problems.
