8CH Vehicle Safety Monitoring Dashboard Global MDVR With Auto Voice Control
Price:
Negotiable
MOQ:
1pc
Delivery Time:
Negotiable
Brand:
OEM/ODM
Product Description
Features are as follows:
Die casting structure, industrial design, stable and reliable, easy to install
Video adopts the international mainstream H.265 encoding format, and the audio adopts G711a encoding. It can support up to 8 channels.
Professional vehicle power supply, can adapt to 8 to 36V ultra-wide voltage input, with multiple protection circuits such as overload/short circuit/reverse connection
Highly reliable aviation plug input and output interface, easy to install and plug, and stronger Vandal-proof performance
Support 8 channels of video and audio input, frame rate and image quality are adjustable
Support 1x2.5inch HDD/SSD +1xTF Card Storage
Built-in Farad capacitor. The video content has power-off protection function
Support video loss alarm function
Independent delay Power shutdown, can support the system to continue running after the vehicle is turned off, the delay time can be set by yourself
Supporting CMS client platform, providing multiple functions such as playback, analysis, management, etc
Support HDD/SSD, TF card and U disk to upgrade firmware, support network remote firmware upgrade.
Supports 2 USB ports, the front can be connected to a USB drive to export videos or upgrade firmware, and the back can be connected to a fireproof box to backup videos
Support 8 x IO alarm input, 2 x IO alarm output
Support 2 x RS232 and 1 x RS485
Insert the intercom handle for two-way communication between the platform and the device
Support pulse vehicle speed. Optional
Support 4G, GPS, LAN(RJ45)
Optional WiFi function
| 4G Model | Country | 4G Frequency band |
| 1 | China, Thailand, Indonesia, India, Vietnam, the Philippines, Saudi Arabia, Bonaire Island, Aruba, curacao, Azerbaijan, Bhutan, Brunei, Cambodia, Hong Kong, Kazakhstan, Pakistan, the Philippines, Sri Lanka, Israel, Egypt |
GSM:900/1800 WCDMA:B1/B8 FDD_LTE:B1/B3/B5/B8 TDD_LTE:B38/B39/B40/B41 TD-SCDMA:B34/B39 EVDO/CDMA:BC0 |
| 2 | Malaysia, Singapore, Taiwan, britain, Russia, Djibouti, Somalia, Morocco, South Africa, the republic of korea, Uzbekistan, Mozambique |
GSM:900/1800 WCDMA:B1/B8 FDD_LTE:B1/B3/B7/B8/B20/B28 TDD_LTE:B38/B40/B41 |
| 3 | Chile, El Salvador, Mexico, Peru |
LTE-FDD:B2/B4/B5/B7/B8/B28 LTE-TDD:B40 WCDMA:B2/B5/B8 GSM:850/900/1800/1900 |
| 4 | U.S.A |
LTE-FDD:B2/B4/B5/B12/B13/B17/B25/B26 LTE-TDD:B41 WCDMA:B2/B4/B5 CDMA&EVDO:BC0/BC1 GSM:850/1900 |
| 5 | Brazil |
FDD LTE:B1/B2/B3/B4/B5/B7/B8/B17/B20/B28 TDD LTE:B34/B38/B39/B40/B41 WCDMA:B1/B2/B5/B8 |

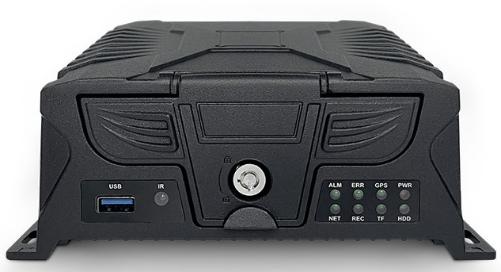

Front panel:
| Serial | Name | Silk Print | Detailed description |
|
|
Remote receiver | IR | Infrared receiver, used to receive remote control signal |
| ② | Indicator LED | PWR | Power Indicator LED. LED ON when the power supply is normal |
| GPS | GPS status indicator. The light is always on when the GPS is working normally, and it flashes when there is no signal | ||
| ODM | Indicate heating or other functions | ||
| ALM | Alarm Indicator LED. LED ON when the alarm is generated | ||
| HDD | HDD Indicator LED. LED is always on when HDD is recognized, flashes when writing | ||
| TF | TF card Indicator LED. LED is always on when TF card is recognized, flashes when writing | ||
| REC | Video indicator LED. Flashes when recording | ||
| NET | Network status indicator. The light will always be on when the network connection is successful, and flash when the network is not connected | ||
| ③ | Electronic locks | LOCK | When the electronic lock is locked, MDVR automatically turns on; when the electronic lock is opened, MDVR automatically turns off |
| ④ | USB port | USB | Use to backup files and upgrade firmware version |
| ⑤ |
HDD box TF card port SIM card port |
Open the interface baffle through electronic lock, insert HDD/SSD, TF card and SIM card. When the electronic lock is locked, please do not open the interface baffle forcefully, it will damage the machine |

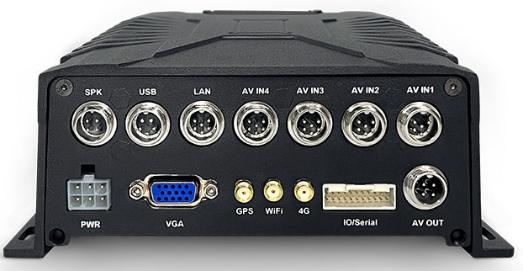

Appearance of the Back panel
| Serial | Name | Silk Print | Description |
| ① | AV input Port | AV IN1 | 1CH~2CH audio and video input interface |
| AV IN2 | 3CH~4CH audio and video input interface | ||
| AV IN3 | 5CH~6CH audio and video input interface | ||
| AV IN4 | 7CH~8CH audio and video input interface | ||
| ② | LAN | LAN | Wired network port, can connect to wired network or IP camera |
| ③ | Fireproof box | USB | External fireproof box, disaster recovery video |
| ④ | Speaker | SPK | Connect the intercom handle or speaker |
| ⑤ | CVBS output Port | AV OUT | CVBS audio and video output interface |
| ⑥ | IO/Serial Port | IO/Serial | 8xI/O input, 2xI/O Output, 2xRS232, 1xRS485, 1xPulse speed |
| ⑦ | 4G Antenna Port | 4G | External special 4G antenna. It should be placed where without shielding and interference |
| ⑧ | WiFi Antenna Port | WiFi | External special WiFi antenna. It should be placed where without shielding and interference. Optional |
| ⑨ | GPS Antenna Port | GPS | External special GPS antenna. It should be placed where without shielding and interference |
| ⑩ | VGA output Port | VGA | VGA audio and video output interface |
| ⑪ | Power Port | DC8-36V | Power Input port |
Power interface definition
| Pin diagram | Pin definition | ||
 |
1 | 2 | 3 |
| PWR- | PWR+ | ||
| 4 | 5 | 6 | |
| PWR- | PWR+ | ACC | |
I/O interface definition
I/O interface diagram:
The detailed pin definition is as follows(RS485 is reserved and not standard):
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 |
| WHITE | WHITE | WHITE | WHITE | BLACK | RED | GREY | BROWN | BROWN | RED | YELLOW |
| ALM IN2 | ALM IN4 | ALM IN6 | ALM IN8 | GND | DC12V | RS485-B | RS232-2-RX | RS232-1-RX | DC5V | Pulse speed |
| 11 | 12 | 13 | 14 | 15 | 16 | 17 | 18 | 19 | 20 | 20 |
| WHITE | WHITE | WHITE | WHITE | GREEN | BLACK | GREY | PURPLE | PURPLE | BLACK | BLUE |
| ALM IN1 | ALM IN3 | ALM IN5 | ALM IN7 | ALM OUT1 | GND | RS485-A | RS232-2-TX | RS232-1-TX | GND | ALM OUT2 |
