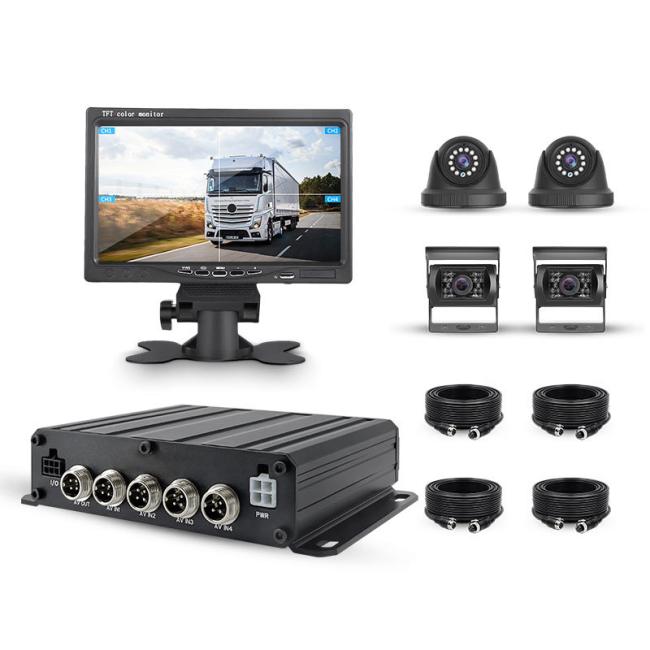

4CH H.265 HDD SD Card 4G Mobile DVR MDVR GPS 7 inch Display Screen Dashcam
Price:
negotiable
MOQ:
negotiable
Delivery Time:
5-8 working days
Brand:
oxiang
Product Description
DVR monitor high resolution 7 inch display
Front panel appearance diagram
| Serial | Name | Silk Print | Detailed description |
| ① | Remote receiver | IR | Infrared receiver, used to receive remote control signal |
|
② |
Indicator LED |
PWR | Power Indicator LED. LED ON when the power supply is normal |
| REC | Video indicator LED. Flashes when recording | ||
|
GPS |
GPS status indicator. The light is always on when the GPS is working normally, and it flashes when there is no signal | ||
|
③ |
Electronic locks |
LOCK |
When the electronic lock is locked,MDVR automatically turns on; when the electronic lock is opened, MDVR automatically turns off |
| ④ | USB Port | USB | Use to backup files and upgrade firmware version |
|
⑤ |
SD Card Port |
SD |
Use electronic lock to Open the interface baffle and insert the SD card. When the electronic lock is locked, please do not open the interface baffle forcefully, it will damage the machine |

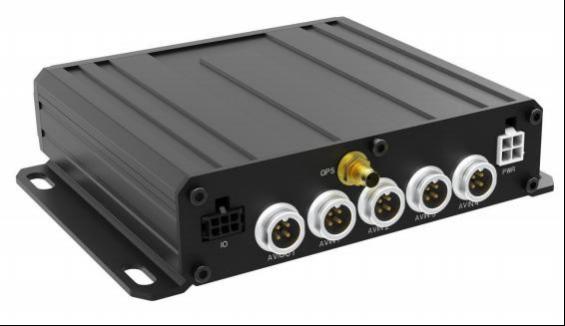

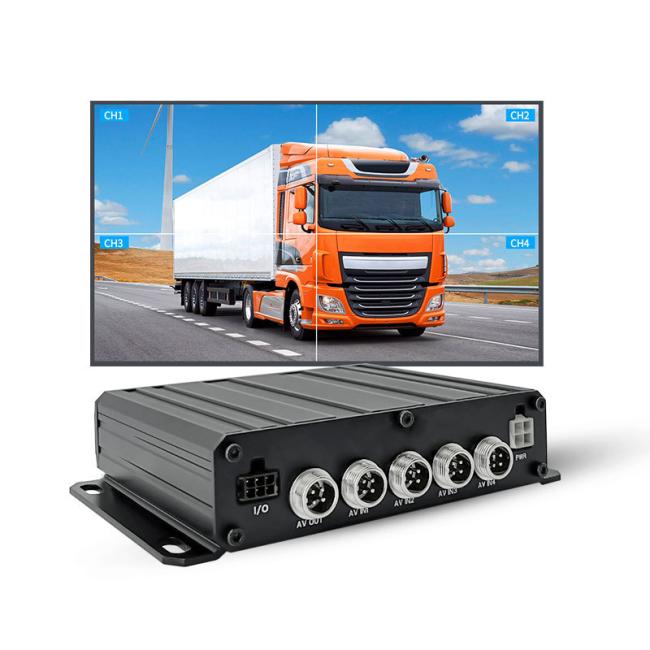

Appearance of the Back panel
| Serial | Name | Silk Print | Description |
|
1 |
AV input Port |
AV1 | 1CH audio and video input interface |
| AV2 | 2CH audio and video input interface | ||
| AV3 | 3CH audio and video input interface | ||
| AV4 | 4CH audio and video input interface | ||
| ② | AV output Port | AV OUT | Standard CVBS audio and video output interface(Can be changed to VGA output) |
| ③ | Power Port | PWR | Power Input port |
| ④ | I/O Port | I/O | 4CH Alarm input, 1CH Output |
| ⑤ | GPS Antenna Port | GPS | support External Special GPS antenna. It should be placed where without shielding and interference |
