4 Cavity Module Bottle Blow Molding Machine For PET / PC / PP / PE Bottles

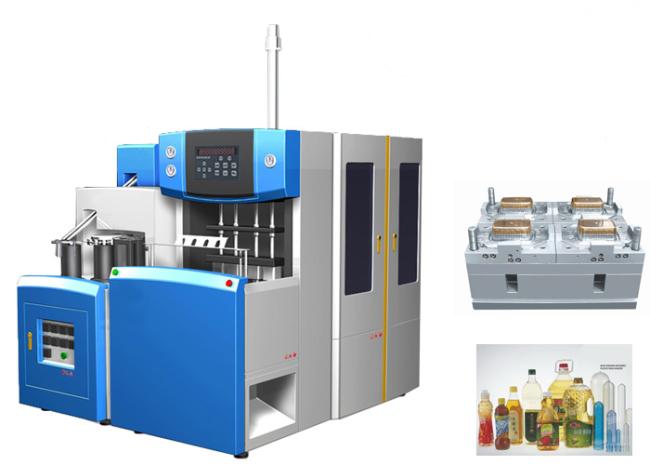

2000BPH Semi-auto Bottle Blow Molding Machine SA4 for PET / PC / PP / PE bottle (4 Cavity module)
Description
SA series blow molding machine is the latest high output semi-automatic PET blow molding machine. Compare with the traditional machine design, thanks to new concept of automatic bottle discharging unit, the patented heating system and the preforms automatic loading design, The SA series blow molding machine requires less manpower and reduces the work intension for the operator. New SA series blow molding machine holds the cavity of the blowing mold up to 6 cavities, the output reaches 2800BPH for 500ml water bottles. Compared to the output of normal manual blow molding machine, this is an outstanding improvement in the PET Bottle blow molding industry.
| Specification | |||||||
| Number of Cavities | 4Cavity | Max. Stretching Stroke | 380mm | ||||
| Material | PET/PC/PP/PE | Theoretical Output | 2000BPH | ||||
| CIamping Force | 300KN | Max. area of mould base | 750*420mm | ||||
| Max Clamping Stroke | 350mm | Max. Mould Thickness | 190mm | ||||
| Bottom Moving Stroke | 60mm | Space Between Tie Bars | 670*340mm | ||||
| Electrical system | |||||||
| Total power(Full Loaded) | 18KW | Voltage Standard | 380v/3PH/50Hz | ||||
| Container | |||||||
| Max. Length of preform | 180mm | Diameter of neck finish | 15mm-45mm | ||||
| Diameter of preform | 15mm-40mm | Container Diameter | 110mm | ||||
| Container Volume | 0.1-2.5L | Max. Height of container | 370mm | ||||
| Air system | |||||||
| High pressure Air compressor | >1.2m3 /3.0MPax2 (0.5L) | ||||||
| Dimension & Weight | |||||||
| Blow molding machine | 1.9*0.88*1.8M | Net. Weight | 1.3T | ||||
| Oven | 1.9*0.66*1.6M | ||||||
