Chuck Standard Accessories for Stud Welding Guns PHM-160, PHM-161, PHM-250 GD 16, GD 19, GD 22, GD
Price:
Negotiation
MOQ:
1 PCS
Delivery Time:
15 working days after received your payment
Brand:
Bolte BTH
Product Description
Bolte BTH Chuck Standard
Accessories for Stud Welding Guns PHM-160, PHM-161, PHM-250
GD 16, GD 19, GD 22, GD
Whatsapp: +86 13818731663
Wechart: 630531309

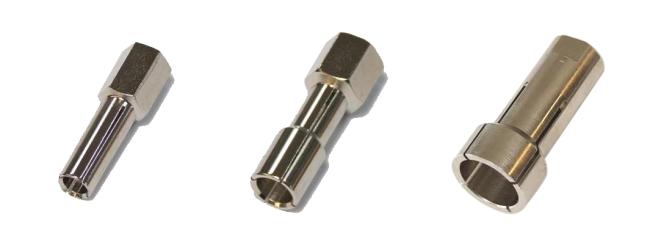

Chuck standard
| standard (Ø 3-10) | standard (Ø 12-20) | standard (Ø 22-24) |
| Description: | Field of application: | |
| Chuck standard | Threaded studs, non-threaded studs, internal threaded studs | |
| Stud Ø | Inserting depth (mm) | Length (mm) | Item number |
| 3 | 5 | 50 | 83-50-003 |
| 4 | 5 | 50 | 83-50-004 |
| 5 | 6 | 50 | 83-50-005 |
| 6 | 4 | 50 | 83-50-006-4 |
| 6 | 7 | 50 | 83-50-006 |
| 6 | 15 | 50 | 26-31-00 |
| 8 | 4 | 50 | 83-50-008-4 |
| 8 | 6 | 50 | 25-29-00 |
| 8 | 9 | 50 | 83-50-008 |
| 8 | 25 | 50 | 26-94-00 |
| 10 | 4 | 50 | 25-97-00 |
| 10 | 6 | 50 | 25-30-00 |
| 10 | 11 | 50 | 83-50-010 |
| 12 | 6 | 55 | 25-31-00 |
| 12 | 13 | 55 | 83-55-012 |
| 14 | 15 | 55 | 83-55-014 |
| 14,6 | 7 | 55 | 26-90-00 |
| 14,6 | 15 | 55 | 26-48-00 |
| 16 | 5 | 55 | 25-99-00 |
| 16 | 15 | 55 | 83-55-016 |
| 18 | 5 | 55 | 83-55-018-5 |
| 18 | 15 | 55 | 83-55-018 |
| 20 | 15 | 55 | 83-55-020 |
| 22 | 6 | 65 | 83-55-022-6 |
| 22 | 10 | 55 | 83-55-022-10 |
| 22 | 15 | 55 | 83-55-022-15 |
| 24 | 15 | 65 | 25-46-00 |
There are several sizes of chucks available in the accessories for each stud welder. However, since the chuck is a consumable item during the use of the stud welder, it is recommended to purchase some chucks according to the specifications of the customer's welded studs.
