Cigarette Packet Biaxially Oriented Polyethylene Film / Cosmetic Box Holographic Paper

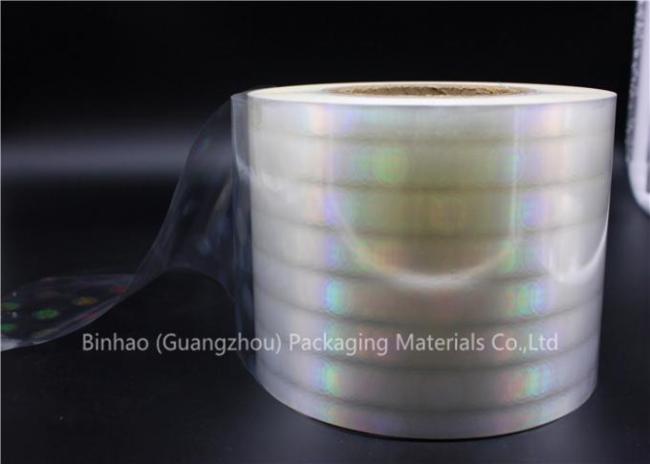

Holographic Polyethylene BOPP Packaging Film For Cigarette Packet And Cosmetic Box
1. Introduction
BOPP laser holographic anti-counterfeiting film has excellent anti-counterfeiting performance and adaptability because it uses BOPP as its basic material and then manufactured by laser holographic anti-counterfeiting treatment.
2. Features
1) Eye-catching with unique and personalized design of transparent holograms.
2) Easy to be identified by customers with distinct anti-counterfeiting labels of various angles.
3) Distinct and firm code spurting.
4) Can be operated directly without any adjustment.
5) Highly fitted.
3. Applications
Cigarettes, cosmetics, condoms, playing cards, tissue boxes, CD, chewing gun, food pack and so on.
4. Technical index
| NO. | Item | Unit | Index | Remarks | |||
| Size deviation | |||||||
| 1 | Width deviation | 50～150 | mm | ±0.5 | — | ||
| 151～400 | ±1.0 | — | |||||
| 401～1200 | ±1.5 | — | |||||
| 2 | Maximum thickness deviation | 12～19μm | % | ±5.0 | — | ||
| 20～29μm | ±4.0 | — | |||||
| 30～50μm | ±3.0 | — | |||||
| Physical and mechanical properties | |||||||
| Ordinary heat sealable film | Shrinkage heat sealable film | — | |||||
| 1 | Tensile strength | Vertical | MPa | ≥125 | ≥130 | — | |
| Horizontal | ≥220 | ≥240 | — | ||||
| 2 | Elongation at break | Vertical | % | ≤200 | ≤200 | — | |
| Horizontal | ≤80 | ≤70 | — | ||||
| 3 | Hot-shrinkage rate | vertical | % | ≤5.0 | ＞5 | — | |
| horizontal | ≤4.0 | ＞4 | — | ||||
| 4 | Young modulus | Vertical | MPa | 1800 | ＞2000 | 5mm/min | |
| 5 | Haze | % | ≤3.5 | ≤2.5 | — | ||
| 6 | Coefficient | — | ≤0.5 | ≤0.4 | Single side | ||
| 7 | Ultimate strength | N/15mm | ≥2.0 | ≥2.0 | (135±5)℃·0.18MPa·1s | ||
| 8 | Luster(45º)% | — | ≥80 | ≥85 | — | ||
| 9 | Wetting tension | mN/m | — | - | Conform with contract | ||
| 10 | WVT | g/(m2·24h·0.1mm) | ≤2.0 | ≤2.0 | — | ||
5. Factory Advantages
1) Our factory is equipped with 2 coating line,4 slitting machine and completed
testing instrument.
2) Offer OEM service for global buyer.
3) Proper scale enables us to control the quality better.
4) Near to Guangzhou Port and fast delivery.
5) Directly supply with competitive price.
