Glossy Cellophane Named BOPP Film Roll For Cigarette Box / Bopp Packaging Film
Glossy Cellophane Named BOPP Film Use For Packer Machine To Packaging The Cigarette Box
1. Products introduction
Technical index
| NO. | Item | Unit | Index | Remarks | |||
| Size deviation | |||||||
| 1 | Width deviation | 50~150 | mm | ±0.5 | — | ||
| 151~400 | ±1.0 | — | |||||
| 401~1200 | ±1.5 | — | |||||
| 2 | Maximum thickness deviation | 12~19μm | % | ±5.0 | — | ||
| 20~29μm | ±4.0 | — | |||||
| 30~50μm | ±3.0 | — | |||||
| Physical and mechanical properties | |||||||
| Ordinary heat sealable film | Shrinkage heat sealable film | — | |||||
| 1 | Tensile strength | Vertical | MPa | ≥125 | ≥130 | — | |
| Horizontal | ≥220 | ≥240 | — | ||||
| 2 | Elongation at break | Vertical | % | ≤200 | ≤200 | — | |
| Horizontal | ≤80 | ≤70 | — | ||||
| 3 | Hot-shrinkage rate | vertical | % | ≤5.0 | >5 | — | |
| horizontal | ≤4.0 | >4 | — | ||||
| 4 | Young modulus | Vertical | MPa | 1800 | >2000 | 5mm/min | |
| 5 | Haze | % | ≤3.5 | ≤2.5 | — | ||
| 6 | Coefficient | — | ≤0.5 | ≤0.4 | Single side | ||
| 7 | Ultimate strength | N/15mm | ≥2.0 | ≥2.0 | (135±5)℃·0.18MPa·1s | ||
| 8 | Luster(45º)% | — | ≥80 | ≥85 | — | ||
| 9 | Wetting tension | mN/m | — | - | Conform with contract | ||
| 10 | WVT | g/(m2·24h·0.1mm) | ≤2.0 | ≤2.0 | — | ||
2.Special performance
1) Laminating with other types of substrate material, such as PE, CPP, VMCPP film, for packaging
2) Environmentally friendly: It is environmentally friendly,non-hazardous to health and safe to use as no toxic gases or volatile content is emitted.Safety in laminating process as no solvent based adhesive is used.
3) High function: Compared with other solvent lamination, our film is better in clarity and bonding. Strong ability of absorbing powder, It prevents lamination from being pressed, bubbled and shredded off easily. Matt thermal lamination film is good for spot UV and hot stamping.
4) Adaptable to different kinds of machines: This film is recommended to be used in dry laminator. Small adjustments need to be made to the machine if the film is used in wet laminator.
5) Easy handling:It is easy to operate once the required temperature is met and no special technique required.
6) Efficient and energy-saving: Production cost is reduced substantially as there is no film wastage, mixture of adhesive solvent, and no UV heating lamp is required.
7)laminating with other types of substrate material, such as PE, CPP, VMCPP film, for packaging
3. Environmentally friendly
It is environmentally friendly,non-hazardous to health and safe to use as no toxic gases or volatile content is emitted.Safety in laminating process as no solvent based adhesive is used.
4. High function
Compared with other solvent lamination, our film is better in clarity and bonding. Strong ability of absorbing powder, It prevents lamination from being pressed, bubbled and shredded off easily. Matt thermal lamination film is good for spot UV and hot stamping.
5. Efficient and energy-saving
Production cost is reduced substantially as there is no film wastage, mixture of adhesive solvent, and no UV heating lamp is required.
6. Factory Advantages
1) Our factory is equipped with 2 coating line,4 slitting machine and completed testing instrument.
2) Offer OEM service for global buyer.
3) Proper scale enables us to control the quality better.
4) Near to Guangzhou Port and fast delivery.
5) Directly supply with competitive price.

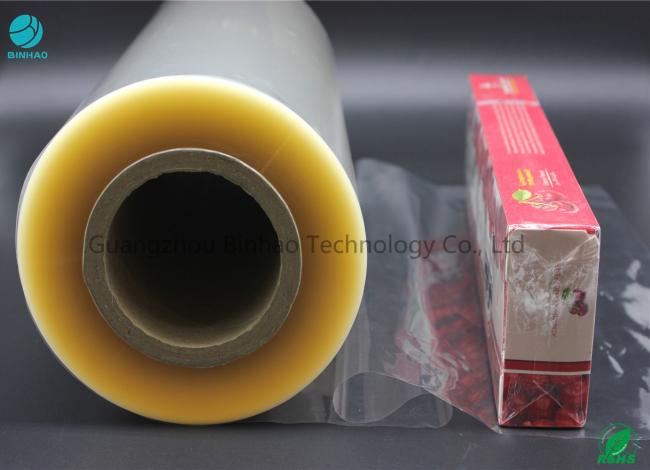

Pictures Show:
