Anti Counterfeiting Clear BOPP Holographic Film With One Side Corona Treatment
Anti Counterfeiting Clear BOPP Holographic Film With One Side Corona Treatment
Basic information
1. BOPP Thermal Lamination Packaging Film
2. Material: BOPP
3. Application: used for printing, ornament and stationery industry process for company logos and advertising etc.
4. Any multi-color can be printed in vivid.
5. Any design is available from us.
6. Size:according to customer's requirment.
7. Max width:1800mm
8. Length/roll:normal 3000m/roll
9. Process parameter:
10. Equipment for laminating film: dry and wet film laminator
11. Temperature: Normal :85~100oc
12. Special:100~110 degree
13. Roller pressure :10~18 Mpa
14. Speed :8~50 m/min
Technical index
| NO. | Item | Unit | Index | Remarks | |||
| Size deviation | |||||||
| 1 | Width deviation | 50～150 | mm | ±0.5 | — | ||
| 151～400 | ±1.0 | — | |||||
| 401～1200 | ±1.5 | — | |||||
| 2 | Maximum thickness deviation | 12～19μm | % | ±5.0 | — | ||
| 20～29μm | ±4.0 | — | |||||
| 30～50μm | ±3.0 | — | |||||
| Physical and mechanical properties | |||||||
| Ordinary heat sealable film | Shrinkage heat sealable film | — | |||||
| 1 | Tensile strength | Vertical | MPa | ≥125 | ≥130 | — | |
| Horizontal | ≥220 | ≥240 | — | ||||
| 2 | Elongation at break | Vertical | % | ≤200 | ≤200 | — | |
| Horizontal | ≤80 | ≤70 | — | ||||
| 3 | Hot-shrinkage rate | vertical | % | ≤5.0 | ＞5 | — | |
| horizontal | ≤4.0 | ＞4 | — | ||||
| 4 | Young modulus | Vertical | MPa | 1800 | ＞2000 | 5mm/min | |
| 5 | Haze | % | ≤3.5 | ≤2.5 | — | ||
| 6 | Coefficient | — | ≤0.5 | ≤0.4 | Single side | ||
| 7 | Ultimate strength | N/15mm | ≥2.0 | ≥2.0 | (135±5)℃·0.18MPa·1s | ||
| 8 | Luster(45º)% | — | ≥80 | ≥85 | — | ||
| 9 | Wetting tension | mN/m | — | - | Conform with contract | ||
| 10 | WVT | g/(m2·24h·0.1mm) | ≤2.0 | ≤2.0 | — | ||
Competitive Advantages
1) Quality Approvals
2) Prompt Delivery
3) Customized Designs and Logo areavailable
4) Competitive Price
5) OEM & ODM Accepted
Guangzhou Binhao Technology Co., Ltd
1) Our company insists on "Quality for you" as our purpose. All of the staff do serious and responsible work to make you satisfied. Our company operates strictly according to the CE system, and we have professional QC personnel to ensure product quality.
2) Our products are wide range of applications, including the areas of tobacco, food, FMCG, daily necessities, medicines, clothing, audio, express envelope, rope-like product identification and other areas.
3) We warmly welcome customers from abroad to establish cooperation and create a bright future with us together.

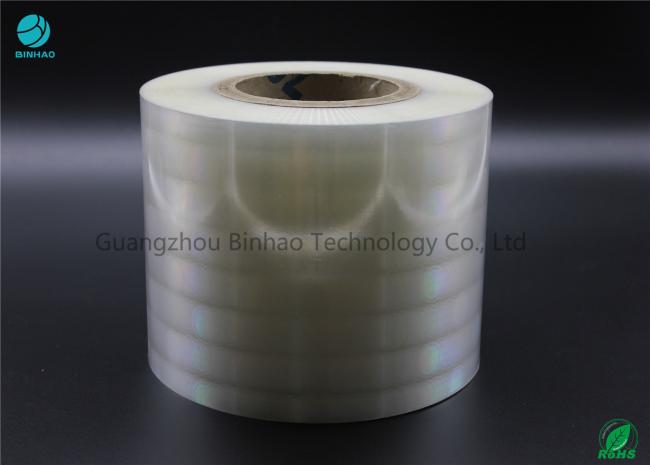

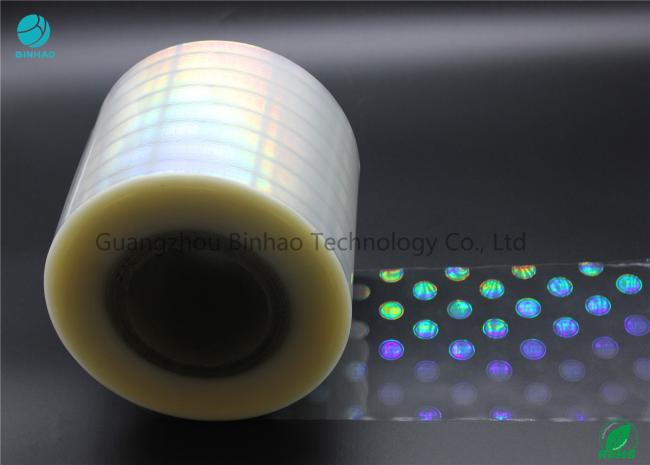

Pictures show
