BOPP Thermal Packaging Film Roll

Price Negotiable
Price: Negotiable
MOQ: 3T
Delivery Time: 7 Work Days
Brand: BINHAO
Product Description

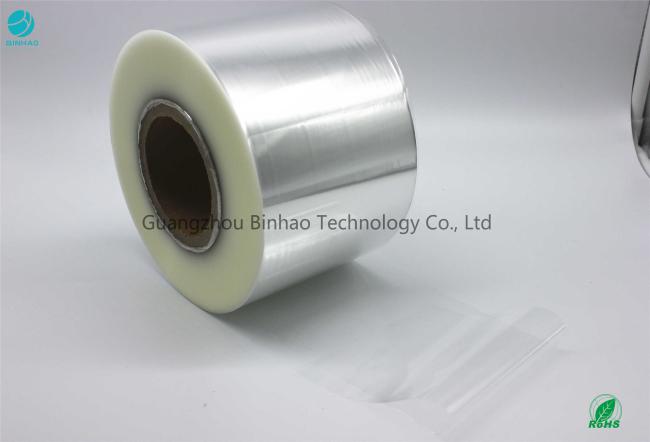

BOPP Thermal Packaging Film Roll Biaxially Oriented Polypropylene Shrinkage Rate 5%





BOPP Film is the fine transparent soft plastic packaging material. It belongs to crystalline polymers product, whose crystallines is increased as a result of the molecular that is bi-axially oriented. Therefor its properties including strength tensile, elastic modulus, impact strength, and elongation at break and folding strength are apparently improved.

BOPP Film features excellent transparency, high gloss, moisture-proof, light, as well as competitive lower price.







Data



Material BOPP Feature Moisture Proof
PHR (handfeel) 20 - 60 MOQ 1000 Kilograms
Transparency Translucent or Opaque Thickness 0.08 – 0.3mm
Payment terms L/C, T/T, D/P Width 120mm – 360mm, or Wider
Type Calendering film Length To order
Certification lower toxicity, EN-71, REACH, ROHS and etc.
Delivery Time 7 days after received deposit or L/C/T.T

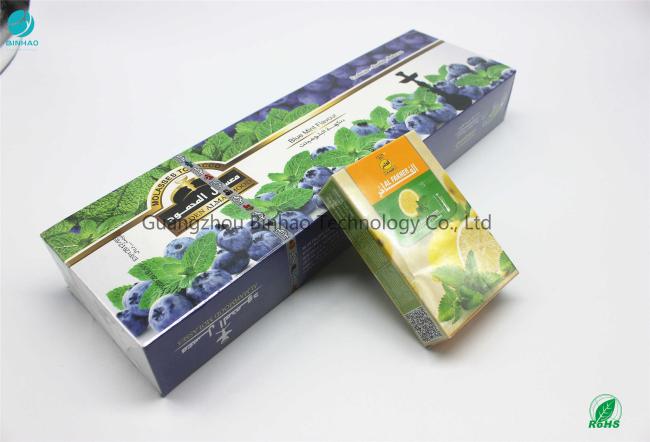

Usage Using for cigarette boxes with high clear finished





TDS



Test Item Unit Standard Value Test Standard
Thickness Deviation % 0.3 ASTM E 252
Corona Treatment mN/m ≥38 ASTM D 2578
Tensile Strength MD MPa ≥140 ASTM D 882
  TD   ≥200
Elongation MD % ≤180 ASTM D 882
  TD   ≤65
E-Modulus MD MPa ≥1800 ASTM D 882
COF MD -- ≤0.8 ASTM D 1849
Shrinkage MD % ≤4 BMS TT 01
  TD   ≤2
Haze % ≤1.5 ASTM D 1003
Gloss % ≥85 ASTM D 2457
Width mm 0-+2

GB6673-86





Advantages of heat sealing BOPP film:
1. Suitable for high frequency heat sealing.
2. Food grade, non-toxic,high quality
3. High transparency & intensity;
4. Good imperviousness;
5. Good resisting endurance;
6. Very flat and low shrinkage.
7. Anti-static, anti-UV, cold resistant .
8. Good stability in products size and easy to process.
9. Can be laminated with Aluminum foil,or metalized.
10. Customized printing available according to customer requirements.



Due to stretching molecular orientation, so this kind of film the physical stability of the air tightness good mechanical strength, high transparency and gloss, tough wear-resisting, is currently the most widely used printing film, generally use thickness is 20 ~ 40 microns, and the most widely used for 20 microns two-way stretch polypropylene film main drawback is that poor heat sealing, so generally used as the outer membrane of composite membrane, such as transparency and polyethylene film composite moisture resistance strength and stiffness of the printing are ideal, suitable for holding food dryingAs the surface of the bidirectional tensile polypropylene film is non-polar, high crystallinity, low surface free energy, therefore, its poor printing performance, ink and adhesive adhesion is poor, before printing and composite surface treatment





Shows:
