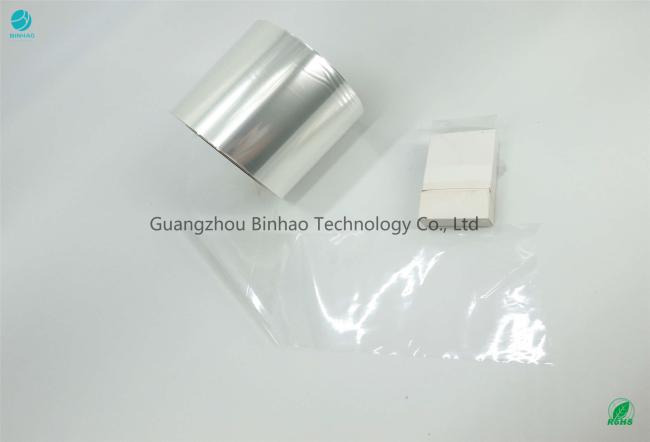

Surface Clarity Cigarette BOPP Film Roll High Shrinkage Lubricity On GD Machine 6000m Max Length
Enhanced Product Surface Clarity BOPP Film High Shrinkage Lubricity On Machine
1. What's BOPP Thermal Laminating Film?
BOPP Thermal Laminating Film is mainly made of BOPP + EVA.
We use extrusion-coating process to combine these two layers.
In the final film one side has properties of BOPP film and the other side becomes heat sensitive surface used for dry lamination.
This product has two classifications: glossy/shine/transparent and matte/opaque, both of which sees thickness from 14micron to 32micron.
Its width could be from 180mm to 1880mm and length from 150m (1 inch core, 25mm) to 4000m (3 inch core, 76mm).
2. Advantages:
1. Enhance the finished product's value through high transparency and super gloss finish. Prevent lamination from being pressed, bubbled and desquamated. Protect from harmful substances and water-proof, making long life storage for printings.
2. Available in various paper and inks, and suitable for lamination even with powder paper. After be treated with corona on the surface, it is good for spot UV and hot stamping.
3. Excellent cost saving as mixing of adhesive, coating and drying processes are not required. The operation doesn't ask for special technique and the film can be used in dry and wet laminator.
4. Environmental friendly, pollution-free working environment. No hazardous to health and secure to use as no toxic gases or volatile content is emitted.
3. Information:
| No. | Item | Unit | Result | |
| 1 | Width bias | mm | 0 | |
| 2 | Thickness bias | % | -0.93 | |
| 3 | Average thickness bias | % | 0.64 | |
| 4 | Tensile strength | MD | Mpa | 182.6 |
| TD | 295.3 | |||
| 5 | Elongation | MD | % | 158.5 |
| TD | 59.2 | |||
| 6 | Modulus(reference value) | MD | Mpa | 2033.82 |
| 7 | Heat shrinkage | MD | % | 3.5 |
| TD | 3.9 | |||
| 8 | Haze | % | 1.72 | |
| 9 | Gloss | % | 96.2 | |
| 10 | Decaying rate of static | Treated side | 22.32 | |
| No-treated side | 20.58 | |||
| 11 | COF(q/m) | Outside/Metal | 0.218/0.146 | |
| Inside/ Metal | 0.311/0.213 | |||
