Offset Printing BOPP Laser Holographic Film Pack Boxes Tobacco / Cigarette

Price Negotiable
Price: To be adviced
MOQ: 3 T
Delivery Time: 15days
Brand: BINHAO
Product Description

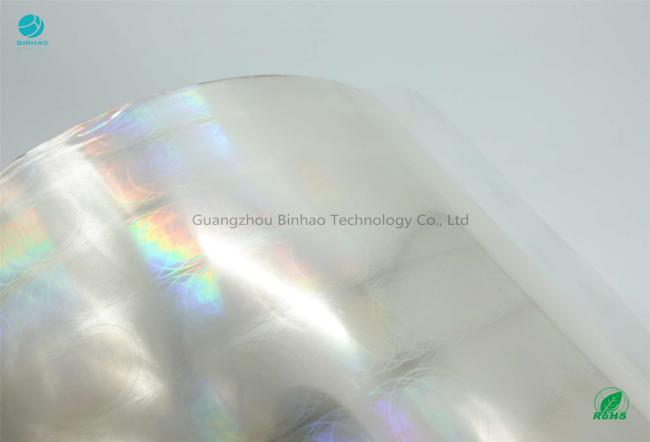

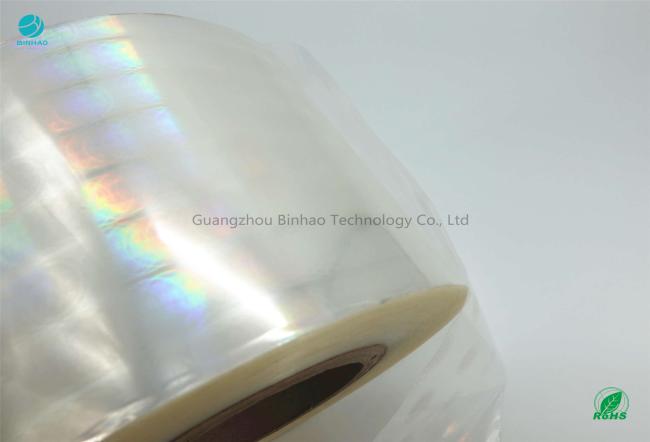

Offset Printing BOPP Laser Holographic Film Pack Boxes Tobacco/Cigarette ​





Oriented films can be used as heat-shrinkable films in shrink-wrap applications or can be heat set to provide dimensional stability. Heat sealing is difficult in BOPP films, but can be made easier by either coating the film after processing with a heat-sealable material (such as polyvinylidene chloride) or by coextrusion with one or more copolymers before processing to produce layers of film. Copolymers used in sealing layers must have high gloss and clarity and should have low sealing temperatures to prevent distortion of the oriented polymer during sealing. Random copolymers containing 3–7% ethylene are often used as sealing layers; the lower melting point (<132°C; <270°F) results in a 30% increase in line speeds, and they can be recycled with no significant loss of strength or clarity.







BOPP Thermal Film



PROPERTIES TEST METHOD UNIT TYPICAL DATAS
MECHANICAL PROPERTIES
Tensile strength MD ASTM D882 N/ mm2 ≥135
  TD     ≥240
Elongation at break MD ASTM D882 % ≤220
  TD     ≤80
Secant modulus MD ASTM D882 N/ mm2 ≥1800
PHYSICAL PROPERTIES
Coefficient of friction ASTM D1894   ≤0.8
Density ASTM D792 g/cm3 0.91
Gloss ASTM D2457 % ≥90
Haze ASTM D1003 % ≤2.8
THERMAL PROPERTIES
Thermal shrinkage MD ASTM D1204
120ºC 5min
% ≤4
  TD     ≤2.0
Thermal seal temperature range ASTM F88 ºC 110-140
Thermal seal strength ASTM F88r N/15mm 2.5
Surface tension ASTM D2578 Dyne ≥38





BOPP Thermal Laminating Film is mainly made of BOPP + EVA.

We use extrusion-coating process to combine these two layers.

In the final film one side has properties of BOPP film and the other side becomes heat sensitive surface used for dry lamination.

This product has two classifications: glossy/shine/transparent and matte/opaque, both of which sees thickness from 14micron to 32micron.

Its width could be from 180mm to 1880mm and length from 150m (1 inch core, 25mm) to 4000m (3 inch core, 76mm).









FAQ

Are you a manufacturer of packaging materials?
Yes, we are printing and packaging material manufacturer and we have our own factory which is located in Guangdong,China.



What is your MOQ?
Normally our MOQ is 3 tons,but we can understand different customer situation.



What is your delivery time?
3Tons within 10 days after receiving 30% deposit, it mainly depends on the quantity of the goods, and the time may be slightly extended for special product need make new mold.



What is your price term and payment term?
Our price term is EXW, FOB, C&F; and payment term is T/T, L/C or Western Union, it should be T/T 30% deposit, and balance before shipment.







Our company's service and after-sales service:
1. Our company, we in the product quality, but also reasonable price and vitevery customer.
2. We are a gold member of made in China and a certified supplier with quality assurance. And there are various certification and production patents. For price competitiveness we are ex-factory cost price.
3. Customized size: any size can be produced according to customer requirements.
4. We can provide free sample test. We have good after-sales service: to establish a good reputation for all customers;
If there is any quality problem, we will deal with it immediately.
