Shrink Holographic Cigarette Film Roll Glossiness High BOPP Label Security Laser Printing
Glossiness High BOPP Label Security Film Laser Printing Holographic Shrink
BOPP label security film used for commodity labels, advertising printing, books and magazines, bottle labels and overall packaging BOPP security film is made of high purity BOPP material and special surface formula, can be printed on the laser holographic laser pattern, and then can be directly used for packaging, and paper composite into a packaging box;
Featurs
| Property | ASTM Test Method | Cast, Uniaxial Orientation | Biaxial Orientation |
| Area factor in 2/lb./1 mil film | – | 30,400–31,300 | 30,600 |
| Specific gravity (g/cm3) | D1505 | 0.885–0.905 | 0.902–0.907 |
| Tensile strength (psi) | D882 | 4500–7000 | 7500–40,000 |
| Elongation (%) | D882 | 550–1000 | 352475 |
| Tear strength (g/mil propagation) | D1922 | 25 MD 600 TD | 3–10 |
| Fold endurance | D2176 | Very high | Excellent |
| 24 h % water absorption | D570 | 0.005 | 0.005 |
| Water vapor transmission rate (g/mil/100 in.2/24 h at 100°F) | E96 | 0.7 | 0.25 |
| Oxygen permeability (cm3/100 in.2/mil/24 h/atm. at 77°F) | D1434 | 150–240 | 160 |
| Bopp thermal lamination film (Gloss Matt) | |||||||||
| SPECIFICATION PARAMETER | |||||||||
| SPECIFICATION | 24 GLOSS | 25 GLOSS | 27 GLOSS | 30 GLOSS | 26 MATT | 27 MATT | 28 MATT | 30 MATT | |
| THICKNESS(UM) | BASE | 12 | 12 | 15 | 18 | 15 | 15 | 17 | 18 |
| EVA | 12 | 13 | 12 | 12 | 11 | 12 | 11 | 12 | |
| TOTAL | 24 | 25 | 27 | 30 | 26 | 27 | 28 | 30 | |
| WEIGHT | kg | 45.04 | 43.22 | 40.1 | 36.15 | 42.37 | 41.35 | 39.25 | 37.37 |
| kg | 0.222 | 0.0231 | 0.025 | 0.02766 | 0.0236 | 0.02418 | 0.02548 | 0.02676 | |
| Width | 360 390 440 540 590 780 880 1080 1320 1400 1600 1800 Upon customer's requirement | ||||||||
| Lenghth | 200 - 6,000 more or less 10% allowed | ||||||||
| Corona Treatment Side | A | B | AB(BOTH SIDE) | ||||||
Factory Advantages
1) Our factory is equipped with 2 coating line,4 slitting machine and completed testing instrument.
2) Offer OEM service for global buyer.
3) Proper scale enables us to control the quality better.
4) Near to Guangzhou Port and fast delivery.
5) Directly supply with competitive price

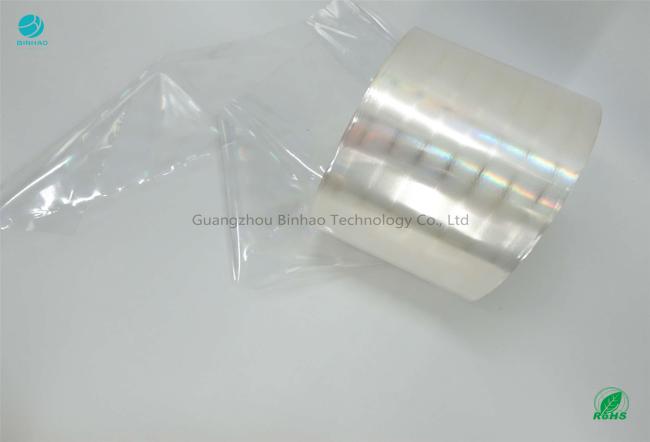

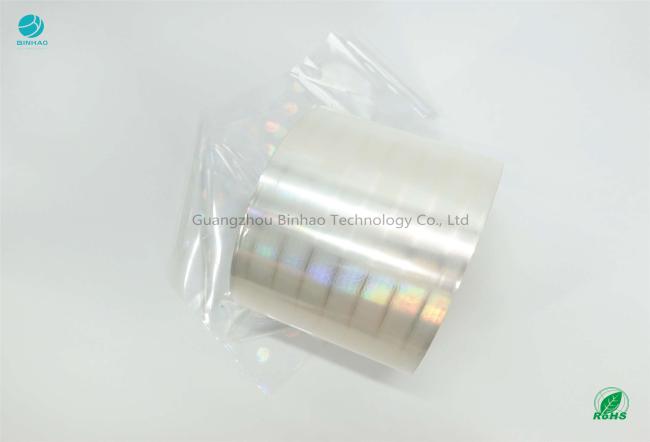

Pictures Show
