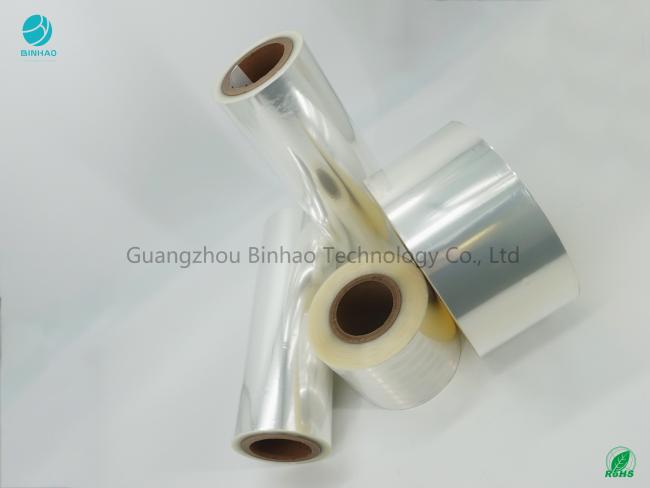

21 Micron BOPP Film Roll For Tobacco Cases Wrapping Long Cases Box 350mm Width
21 Micron BOPP Film For Tobacco Cases Wrapping Long Cases Box 350mm Width
| Specification Of BOPP Thermal Lamination Film | |||||
| Item | BOPP | Thickness(mic) | Ration/yield | Resistance | |
| Type | Roll | Total | Tolerance | G/M2 | G/25MM |
| Glossy | 17 | 17 | (+/-) 1.5mic | 15.68 | 560 |
| 20 | 20 | 18.43 | 560 | ||
| 25 | 25 | 22.65 | 580 | ||
| 27 | 27 | 24.95 | 620 | ||
| 30 | 30 | 27.67 | 630 | ||
| Matt | 17 | 17 | 14.81 | 580 | |
| 23 | 23 | 19.89 | 580 | ||
| 27 | 27 | 24.19 | 620 | ||
| 30 | 30 | 27.24 | 680 | ||
| Width | 200mm---1890mm (± 5mm) | ||||
| Length | 2000M, 3000M, 4000M, 6000M,9000M,12000M(200M,300M for 1'' core) | ||||
| Paper Core | (25.4mm)1'', (76mm) 3'', 6'' | ||||
| Connector | ≤ 2 | ||||
| Corona Treatment | Double Sides | ||||
| Surface Tension | BOPP side ≥ 38dyne; EVA side ≥ 52dyne | ||||
| Application Manual | |||||
| Compound Temperature | 80-110°C(185-230F) | ||||
| Compound Pressure | 5-25mpa | ||||
| Compound Speed | 5-60m/min | ||||
| Standard Thickness | 18,20,22,25,28,30,35um | ||||
Biaxially oriented polypropylene (BOPP) film is film stretched in both machine and transverse directions, producing molecular chain orientation in two directions. BOPP film is produced by a tubular process, in which a tubular bubble is inflated, or a enter frame process, in which a thick extruded sheet is heated to its softening point (not to the melting point) and is mechanically stretched by 300%–400%. Stretching in the tender frame process is usually in the machine direction and in the transverse direction, although these ratios are fully adjustable. It is a widely used process, more common than the tubular process, and a glossy, transparent film is produced. Biaxially orientation results in increased toughness, increased stiffness, enhanced clarity, improved oil and grease resistance, and enhanced barrier properties to water vapor and oxygen. Impact resistance, low-temperature impact resistance, and flex-crack resistance are substantially modified. BOPP films are used in food packaging and are replacing cellophane in applications such as snack and tobacco packaging due to favorable properties and low cost.
Featurs
1) High transparency and high gloss
2) High property of heat smoothness
3) Water proof
4) High property of stiffness
5) Easily identified by customer and difficult to be imitated by counterfeit
6) High shrinkage makes perfect film packing
Competitive Advantages
1) ISO9001 certificated
2) Prompt delivery
3) Professional design team to give you a unique, personalized and security hologram design.
4) Competitive price
5) OEM & ODM acceptable
| 1.Free of charge to make the sample as your required |
| 2.Fastest email respond |
| 3.Small quantity orders are accepted |
| 4. Rich experience to work with famous company and brands |
| 5.Many style Packaging Film series for your choose to win the promotion campaign |
