High Contrast Ratio Football Stadium Led Display , Stadium Big Screen 360W
High Contrast Ratio Brightness Sports Perimeter Led Display in Basketball, Cricket, Baseball
Stadium perimeter LED display's Advantages:
1. Soft mask: We have our own design for soft mask. For one thing, this can protect players and for
another, it can also protect LED panel.
2. Soft rubber protector on the top of cabinet: We will put a soft rubber protector on the top of each cabinet to protect players
3. Adjustable angle: There is supporter at the back of cabinet. So the view angle can be adjusted accordingly.
4. Good waterproof protection: Front is IP65 and back is IP54. There is totally no problem for outdoor application.
5. Big view angle: SMD view angle is bigger than DIP.Its view angle is 160°for horizontal and 110°for vertical.
6. Good color uniformity: Since 3 LED chips are encapsulated in one lamp, SMD color uniformity is much better than DIP so the showing effect is perfect.
7. Energy saving: power consumption is a key factor for LED billboard. BAKO’s LED display is designed with low power consumption to help clients to save energy.
8. Double protection for data transmission: We will make double protection for data transmission. Even if there is any problem in data transmission, the whole display can still run normally.

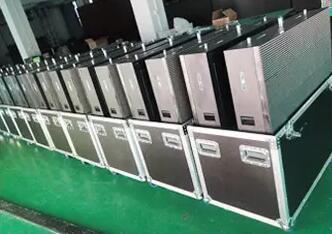

9. Easy transportation: we will make flight cases with wheels for clients. So it is convenient for transportation.
Applications:

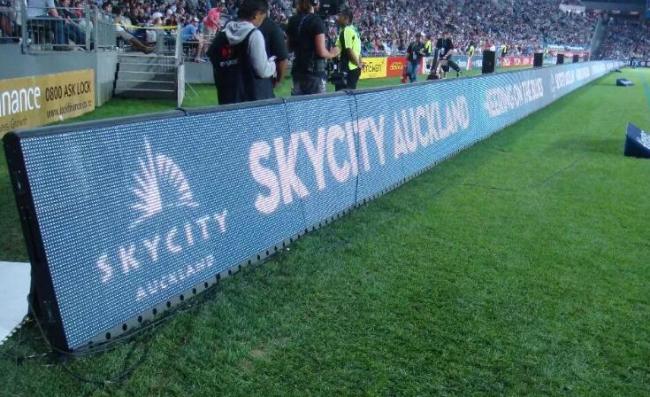

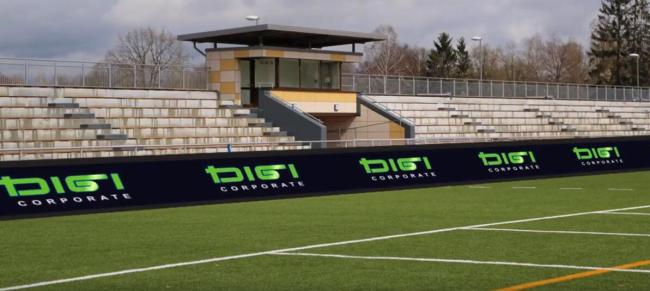

Advertising media, sports stadiums, public area, Football game, basketball game, swimming, pool golf game etc.
Parameter:
| Model | ST-10 |
| Pixel Pitch | 10mm |
| Unit Size | 1280*960*187mm |
| LED Type | SMD3535 |
| Pixel / Unit | 128*96 |
| Unit Weight | 80kg |
| Viewing Angle(H/V) | 140°/140° |
| Application | Storage-40~60° C, Working-20~50° C |
| Protection Level(Front/Rear) | IP65/IP54 |
| Power Consumption( AVG.) | 360W |
| Driving | 1/4 Scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Processing | 16bit |
| Max Brightness | >6500nits |
| Power Supply | AC 110/220±10%, 50~60Hz |
| MTBF | ≥ 1000 Hours |
| Life Span | ≥ 100000 Hours |
| Pixel Failure | < 0.0003 |
