P16 7500 Nits Sports Perimeter Led Display Banner Billboard High Refresh Rate

Price Negotiable
Price: Negotiable
MOQ: 1sqm
Delivery Time: 20-25days
Brand: BAKOVISION
Product Description

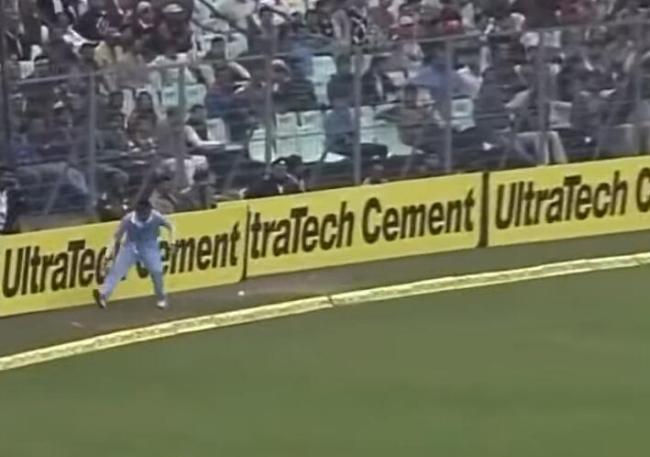

High Refresh Rate P16 7500 Nits Perimeter Led Display, Stadium Led Banner Billboard for Sports Ads



Features of perimeter display



1. Rubber mask: The rubber mask can protect football player and also protect led display itself;

2. Foam protector on the top of cabinet can also protect players ;

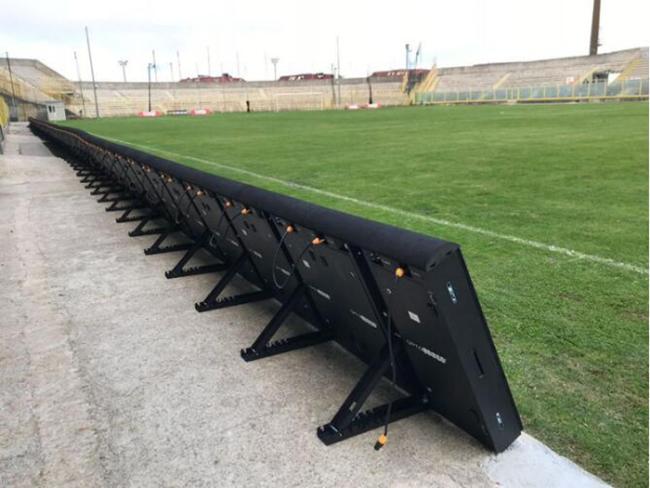

3. Adjustable bracket at the back of cabinet;
4. Good waterproof protection: Front is IP65 and back is IP54;
5. Good color uniformity, because we use top rate of Led;
7. Energy saving, due to we use high efficiency power supply, top rate of led, etc;

8. Double data backup: if one data cable doesn’t work, perimeter led display still can work well;
9. Easy transportation: we will make flight cases with wheels for clients. So it is convenient for transportation.        We also can tailor special cart for moving perimeter led display;

9. 7,500nits brightness always available;



Specification of perimeter led display



Pixel Pitch 16mm
Pixel Density 3,906dots/sqm
Color Configuration 1R1G1B
LED Encapsulation DIP346
Module Size 256mm x 256mm
Module Resolution 16dots x 16dots
Drive Duty Static Constant Current
Brightness >8,000nits
Viewing Distance 16m - 160m
Viewing Angle H: 120°, V: 70°
Refresh Rate 2,000HZ
Frame Rate 120frame/sec
Grey Grade 256levels of Each Color
Color Grade 16.7M
Power Input AC110V/ 220V/ 50HZ
Max Power Consumption 1,600W/sqm
Ave. Power Consumption 400W/sqm
Storage Temperature -40℃ - +80℃
Working Temperature -20℃ - +60℃
Blind Spot Rate <1/10,000
MTBF >10,000 Hours
Life Span >100,000 Hours
Waterproof IP65
Operating Humidity 10% - 95%
Control System Synchronous, Asynchronous
Operating System Win 98, Win2000, XP, 07.etc
Input Source All Format (AVI, MPEG,VOB, RM, etc)
Certificate CE, LVD, RoHS
