Commercial Seamless Joint P4 Led Screen , Outdoor Led Digital Signage For Tourism
Outdoor Fixed LED Screen,P4, 16bit, Outdoor LED Signage,Seamless,High Brightness
OD Series Outdoor Fixed LED:
OD-4 are providing solutions for outdoor fixed applications such as outdoor advertisement media, government & enterprise project culture & tourism, sports, commercial real estate etc.
| Model | OD-4 |
| Pixel Pitch | 4mm |
| Pixel Density | 62500 pixels/m2 |
| LED Type | SMD1921/2525 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 1024mm*768mm |
| Cabinet Resolution | 256*192pixels |
| Cabinet Weight | 50kg |
| Cabinet Material | cold steel |
| Ingress Protection (front/rear) |
IP65/IP54 |
| Brightness | >6500nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/8 scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Gray Scale | 16bit |
| Power Consumption(avg.) | 300w/m2 |
| Input Voltage | AC 110/220±10% 50~60Hz |
| Temperature (operating/storage) |
-20~50°C / -40~60°C |
| Humidity(operating/storage) | 10%~90%RH / 10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span | ≥100000hrs |
| Pixel Failure | <0.0003 |

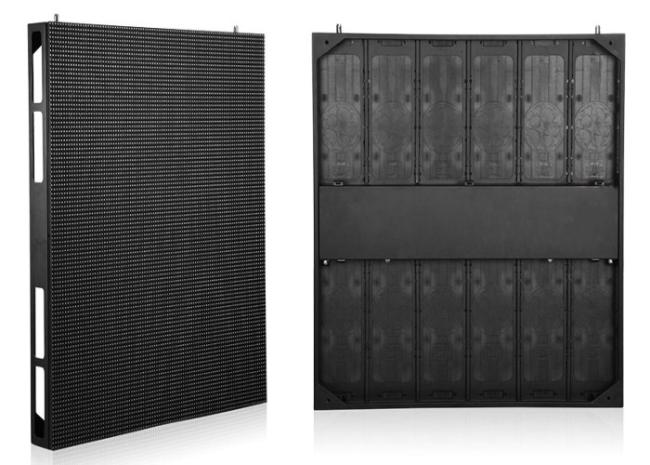

Deliberated Design
Patented mask covering design, pitch dark surface. Anti-ultraviolet module kit, ensure the main body inflexible and level, fined standard cabinet with seamless joint.

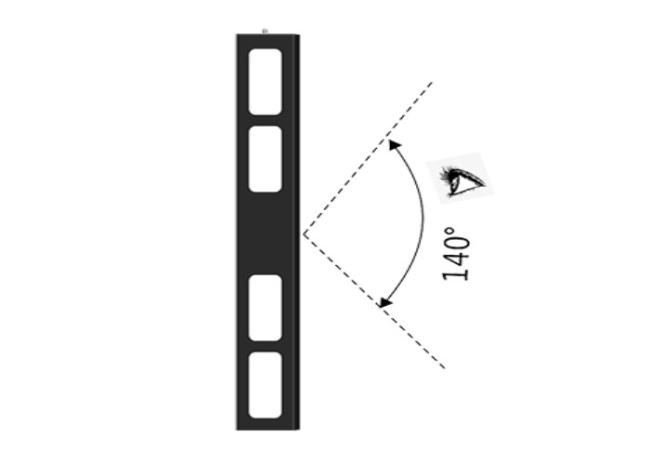

Super Wide Viewing Angle
140° viewing angle to expand the scope of audience making it more suitable for outdoor use.
.
High Quality Display
Adopting customized outdoor SMD bead,good color consistency,high contrast and clear picture.

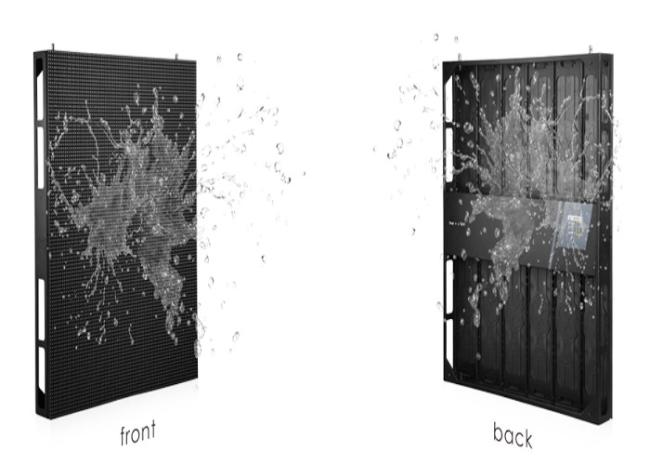

100% Waterproof LED Module
100% waterproof module design,front and back protection level IP65/54,PCB connections replace the traditional electronic line which is safe and reliable.
