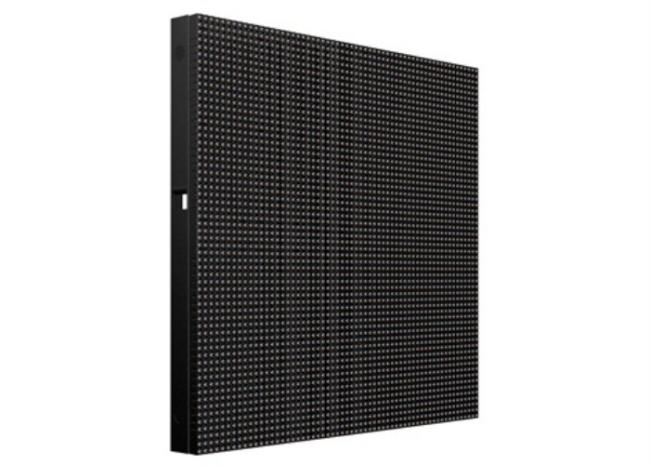

P10 SMD3535 RGB Outdoor Fixed LED Display Roadside Billboard Great Color Fidelity
P10 SMD3535 RGB Outdoor Fixed LED Display Waterproof Advertising Billboard
Outdoor LED display is adopting metal sheet structure to make a solid and durable product.
Key components:
LED lamps,housings,silicon glue,drive ICs,power supply and cables,etc.
Applications
1. Outdoor advertisement media
2. Government and enterprise project
3. Sports center
4 .School
Advantages
1 High definition images delivery
2. Provided with convex shaped, concave shaped and wave Shaped screens
3. Great color fidelity.
4. Wide viewing angle,high contrast ratio and brightness,perform well under the sunlight.
5. Front IP 65,Rear IP54,all-weather work,fully adapt to outdoor environment.
6. Easy to installation and transportation.
7. Good quality raw material, accurate technique and careful inspection insures the high quality of LED display.
| Model | OD-10 |
| Pixel Pitch | 10mm |
| Pixel Density | 10000 pixels/m2 |
| LED Type |
SMD3535/DIP346 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension |
960mmx960mm |
| Cabinet Resolution |
96*96pixels |
| Cabinet Weight |
60kg |
| Cabinet Material | cold steel |
| Ingress Protection (front/rear) |
IP65/IP54 |
| Brightness | >6500nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/8 scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Gray Scale | 16bit |
| Power Consumption(avg.) | 250w/m2 |
| Input Voltage | AC 110/220±10% 50~60Hz |
| Temperature (operating/storage) |
-20~50°C / -40~60°C |
| Humidity(operating/storage) | 10%~90%RH / 10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span | ≥100000hrs |
| Pixel Failure |
<0.0003 |
After-sale service:
1. Our products have two years warranty service ,lifetime free maintenance and upgrade.
2. Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours.
3. We offered training to our customer who includes operating and maintenance of our products.
4. In the Maintenance period of the LED screen body, free of all maintenance charges; After Maintenance period, only charge the material costs fees free of manual work fees.
5. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
6. If the users find any problem that cannot be solved, please contact with our company, we can response in 24 hours. In order to shorten the maintenance time, Our Company will deploy some spare parts such as power and chips etc.
