Flat Screen P5 Indoor Led Display , RGB / Large Led Tv Advertising Displays
Indoor P5 Stage Rental LED Display Screen RGB/Large LED TV For Shows Full Color LED Panel
Product Description
1. Light weight: it can be loaded by one person, quick assembling, quick maintain, reduce. carrying, save costs
2. Thin cabinet: the thickness is only 62mm,the space of the screen is small,and the entire screen will be more beautiful.
3. Flat screen: smooth surface error is under 0.1cm, it can remove the mosaic phenomenon .effectively. The effect of the display will be more clear and exquisite.
4. Quick dismounting: adopt fast locking structure connected, firm, quick, beautiful.
5. Low release heat: low noise, low consumption, low cost, excellent thermal design and excellent thermal dispersion.
Application

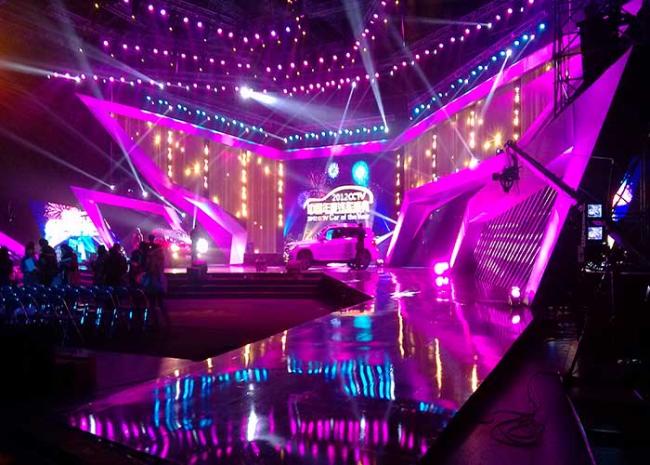

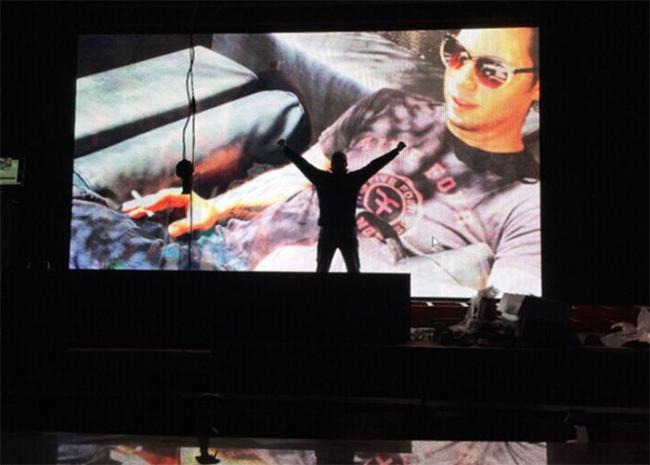

stage performance, bar entertainment, ceremonial wedding, conference, exhibition, musical theater and other event rental application;
Specification
| Model | IRB-5 |
| Pixel Pitch | 5mm |
| Pixel Density | 40000 pixels/m2 |
| LED Type | SMD2121 |
| LED Configuration | 1R1G1B |
| Cabinet Dimension | 480*480mm |
| Cabinet Resolution | 96*96pixels |
| Cabinet Weight | 7kg |
| Cabinet Material | aluminum |
| Ingress Protection(front/rear) | IP40/IP21 |
| Brightness | >1200nits |
| Viewing Angle(H/V) | 140°/140° |
| Driving Method | 1/12 Scan |
| Frame Refresh | ≥ 60Hz |
| Data Refresh Rate | >1500Hz |
| Gray Scale | 16bit |
| Power Consumption(avg.) | 240w/m2 |
| Input Voltage | AC 110/220±10%/50~60Hz |
| Temperature(operating/storage) | -20~50°C/ -40~60°C |
| Humidity(operating/storage) | 10%~90%RH/10%~85%RH |
| MTBF | ≥1000hrs |
| Life Span | ≥100000hrs |
| Pixel Failure | <0.0003 |
